Manufacturer Controlled Trouble Codes

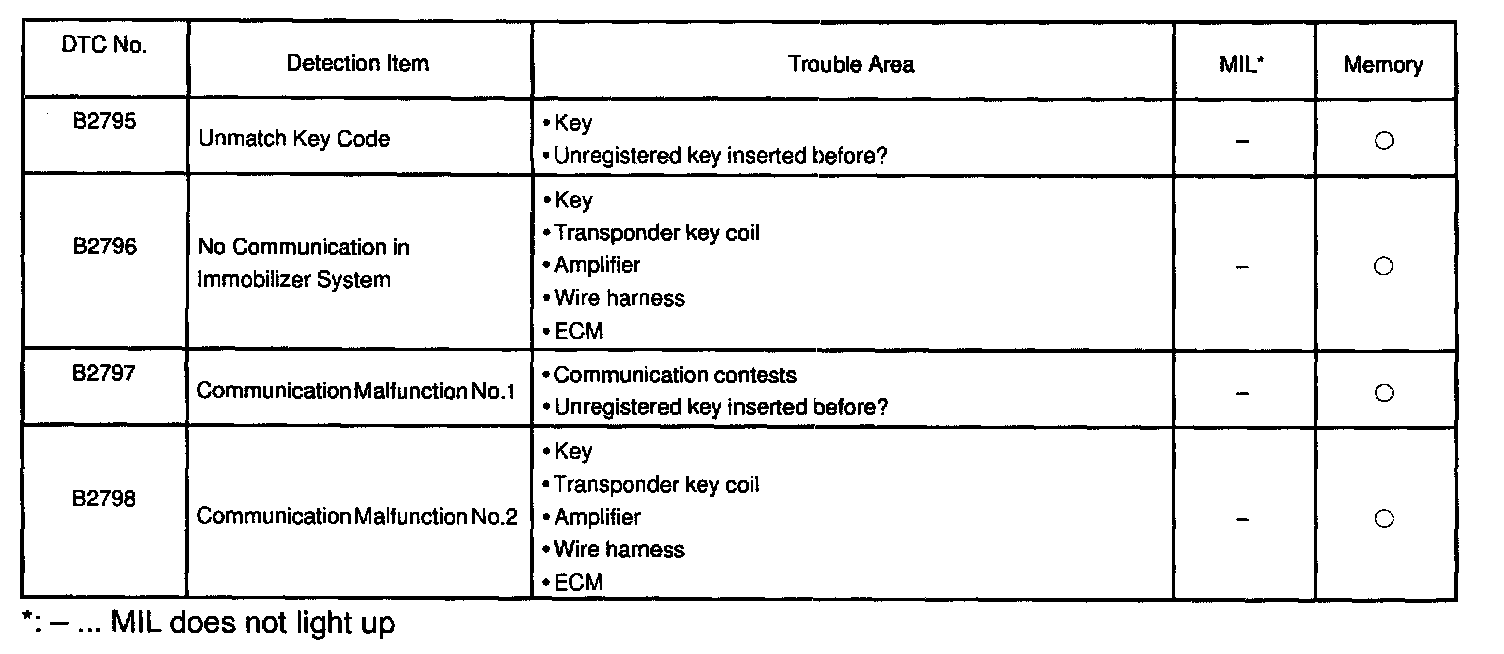

Part 1 Of 3:

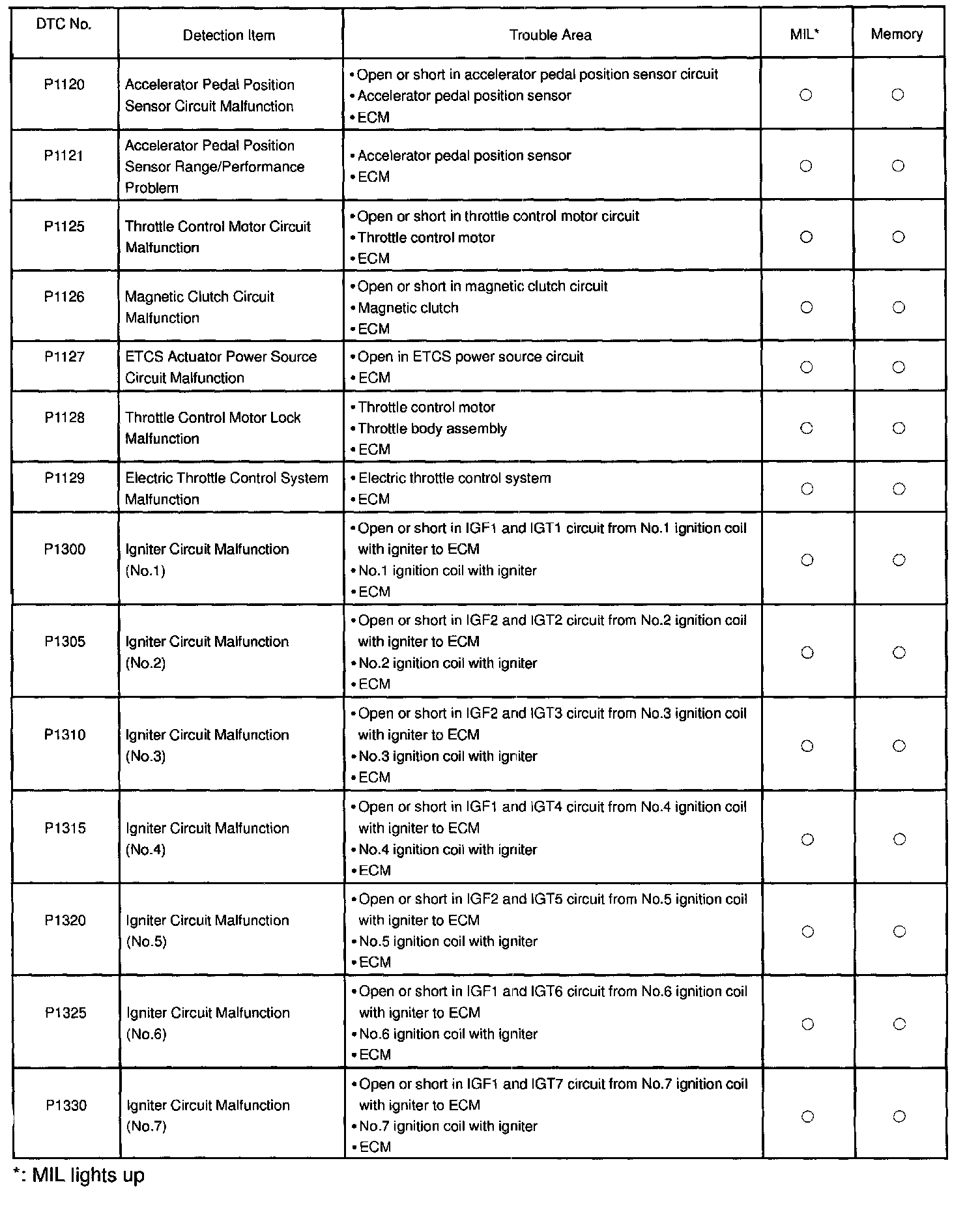

Part 2 Of 3:

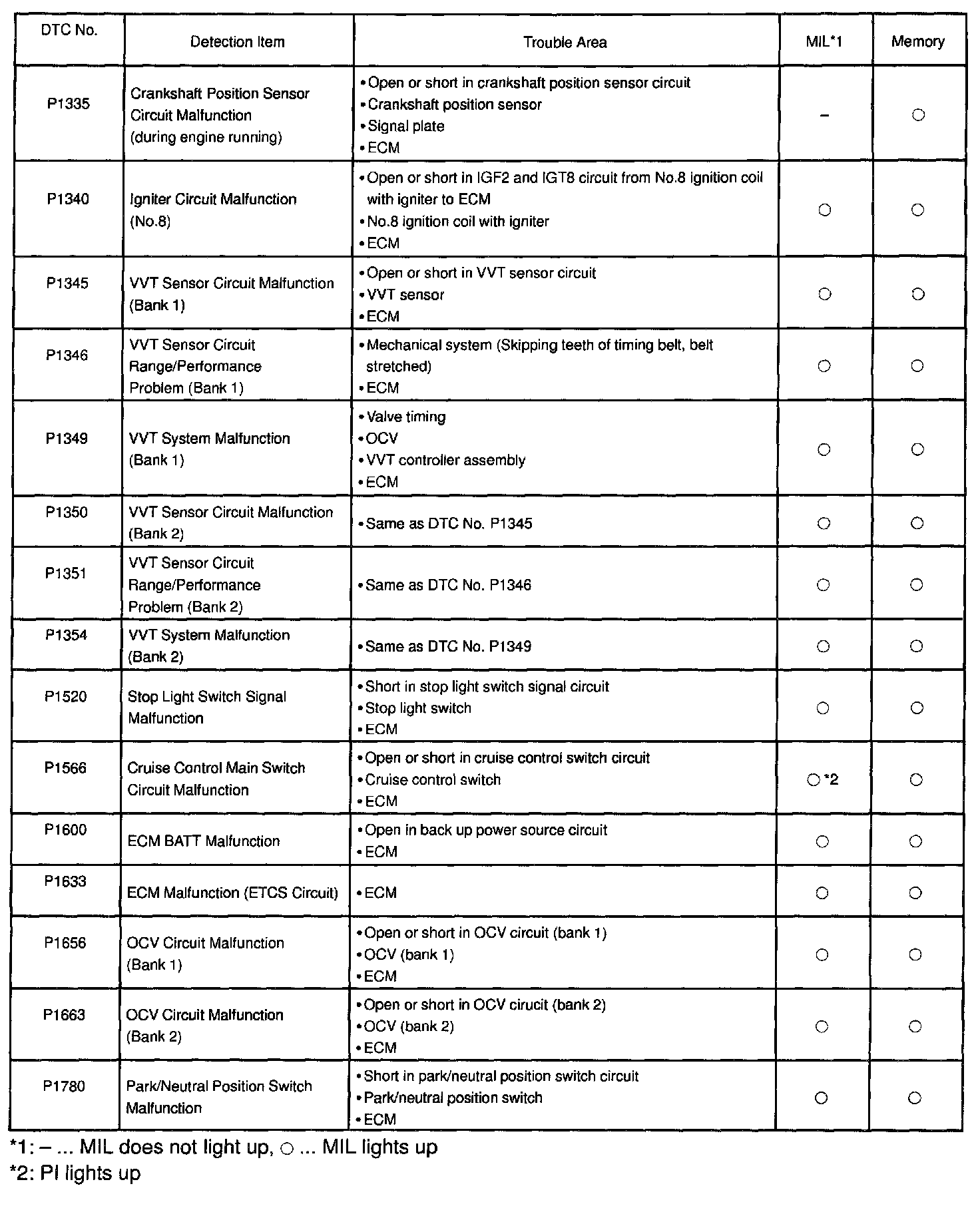

Part 3 Of 3:

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table.
