ABS (Antilock Brake System)

NOTE: When removing the part, turn the IG switch OFF.

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1, and remove the short pin.
- If any abnormality is not found when inspecting parts, inspect the ECU.

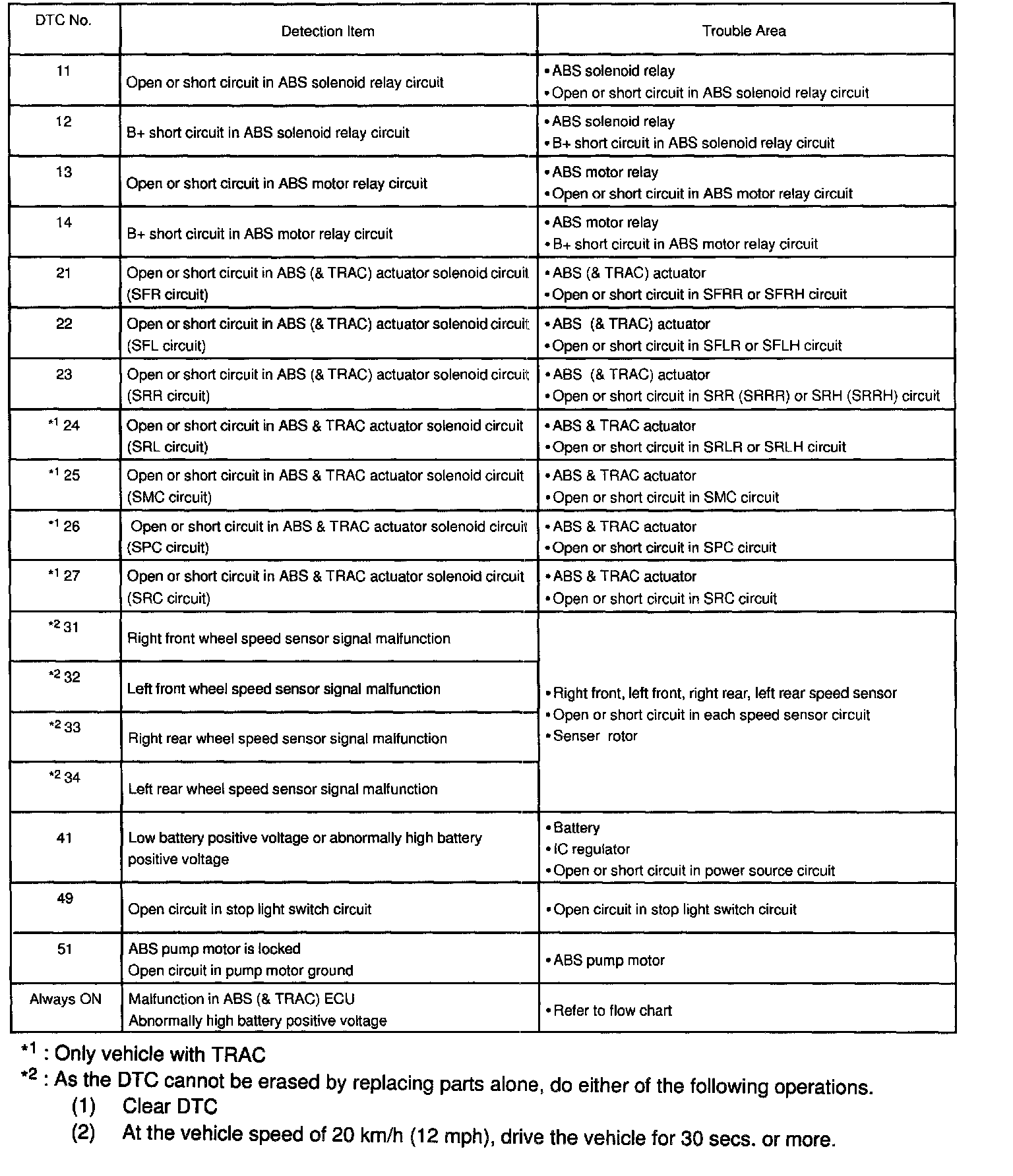

If a malfunction code is displayed during the DTC check, check the circuit listed that code.






DTC of the speed sensor check function.
