Parking Pawl: Service and Repair

ON-VEHICLE REPAIR
1. REMOVE VALVE BODY

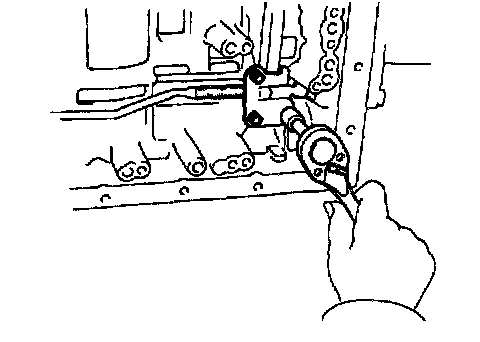

2. REMOVE PARKING LOCK PAWL BRACKET
Remove the 3 bolts and parking lock pawl bracket.

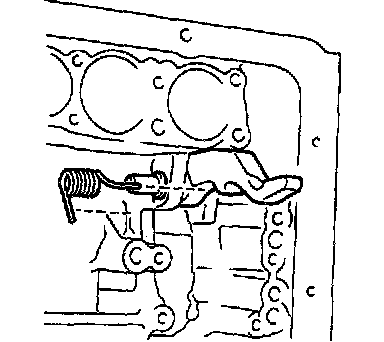

3. REMOVE SPRING FROM PARKING LOCK PAWL SHAFT
4. REMOVE PARKING LOCK PAWL AND PARKING LOCK PAWL SHAFT
5. INSTALL PARKING LOCK PAWL SHAFT AND PARKING LOCK PAWL
6. INSTALL SPRING TO PARKING LOCK PAWL SHAFT
7. INSTALL PARKING LOCK PAWL BRACKET
Install the parking lock pawl bracket and 3 bolts.

HINT:
- Push the lock rod fully forward.
- Check that the parking lock pawl operates smoothly.
Torque: 7.4 Nm (75 kgf cm, 65 inch lbs.)

8. INSTALL VALVE BODY
