Removal and Installation

ON-VEHICLE INSPECTION

NOTE: Before changing the starter, check these items again:
- Connector connection
- Accessory installation, e.g.: theft deterrent system







COMPONENTS

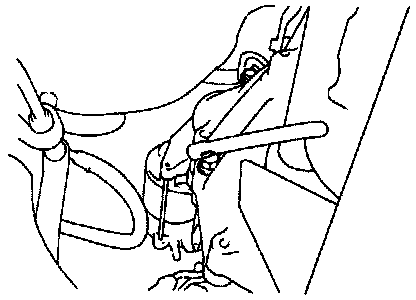

REMOVE STARTER




a. Disconnect the starter connector.
b. Remove the nut, and disconnect the starter wire.




c. Remove the 2 bolts and starter.
Torque: 37 Nm (380 kgf.cm, 27 ft.lbf)

INSTALLATION
Installation is in the reverse order of removal.
