Transmission Speed Sensor: Service and Repair

ON-VEHICLE REPAIR





1. DISCONNECT O/D DIRECT CLUTCH SPEED SENSOR CONNECTOR

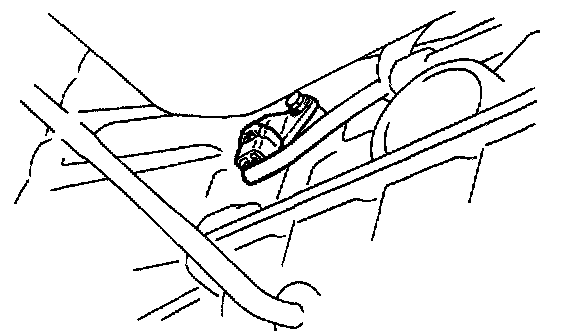

2. REMOVE O/D DIRECT CLUTCH SPEED SENSOR
a) Remove the bolt and O/D direct clutch speed sensor.
b) Remove the O-ring.
3. INSTALL O/D DIRECT CLUTCH SPEED SENSOR
(a) Coat a new O-ring with ATF and install it to the O/D direct clutch speed sensor.
(b) Install the O/D direct clutch speed sensor to the transmission case and torque the bolt.
Torque: 5.4 Nm (55 kgf cm, 48 inch lbs.)
4. CONNECT O/D DIRECT CLUTCH SPEED SENSOR CONNECTOR
