Speedometer Head: Testing and Inspection

INSPECT SPEEDOMETER (ON-VEHICLE)

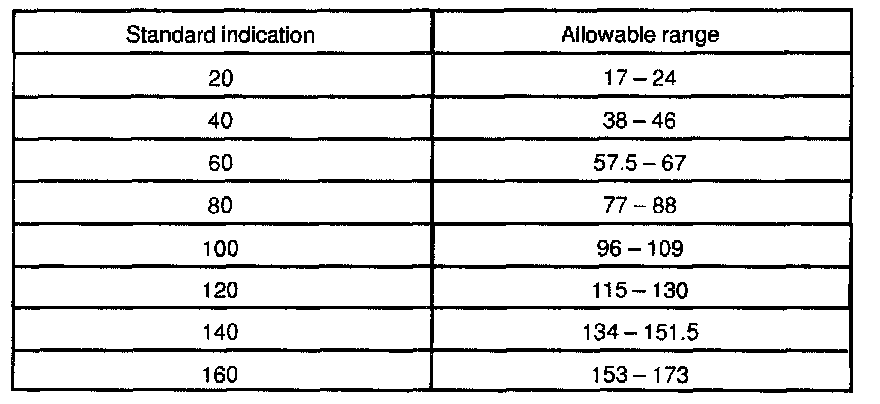

Using a speedometer tester, inspect the speedometer for allowable indication error and check the operation of the odometer.

HINT: Tire wear and tire over or under inflation will increase the indication error.




mph (USA)




kph (CANADA)
If error is excessive, replace the speedometer.
