Washer Fluid Level Indicator: Testing and Inspection

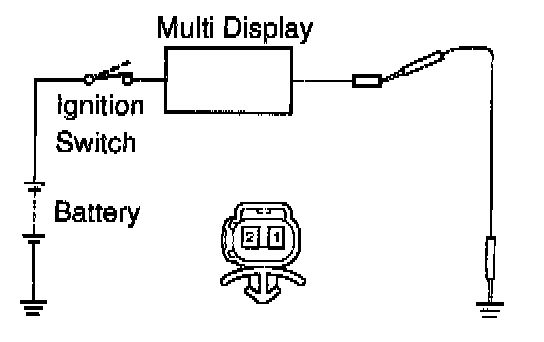

INSPECT WASHER LEVEL WARNING LIGHT




a. Disconnect the connector from the washer level warning switch and ground terminal 2 on the wire harness side connector.
b. Start the engine, check that the warning light lights up. If the warning light does not light up, inspect the bulb or wire harness.
