Component Tests and General Diagnostics

INSPECT HEADLIGHT CLEANER MOTOR OPERATION

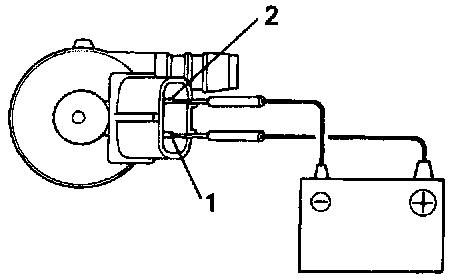

Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor operates.

NOTE: This tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.
If operation is not as specified, replace the motor.

INSPECT HEADLIGHT CLEANER MOTOR CIRCUIT

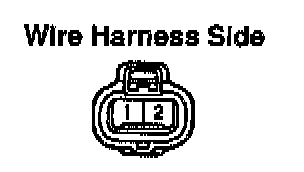

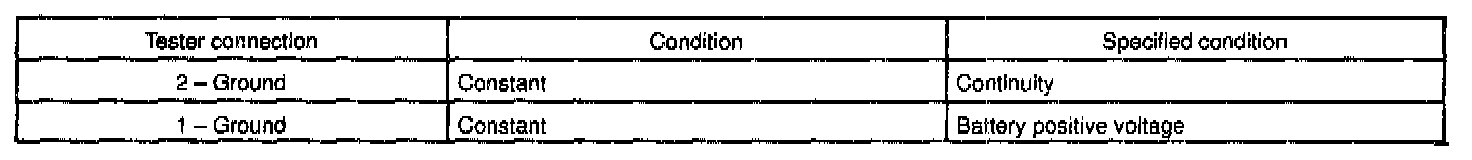

Disconnect the connector from the cleaner motor and inspect the connector on harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.
