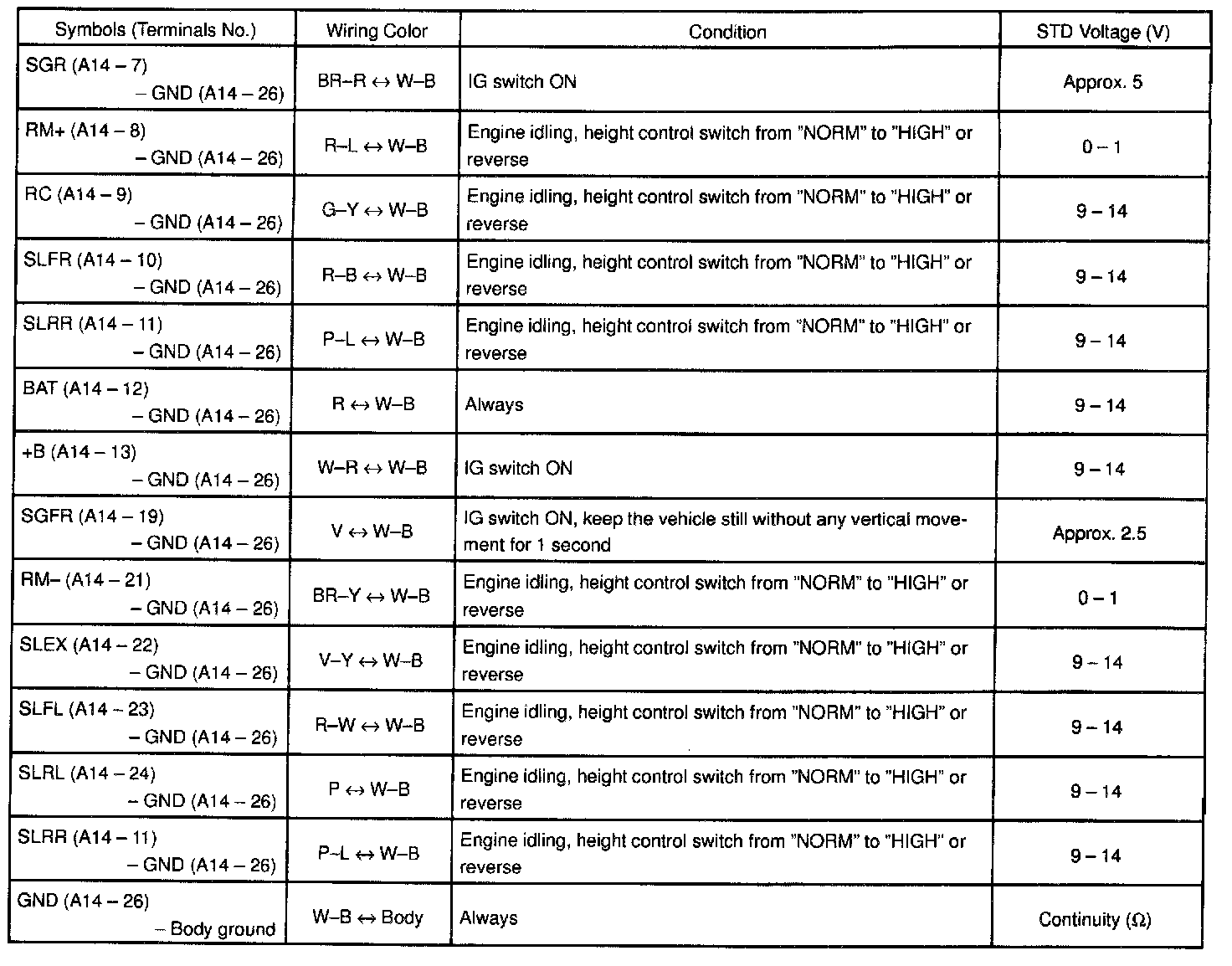

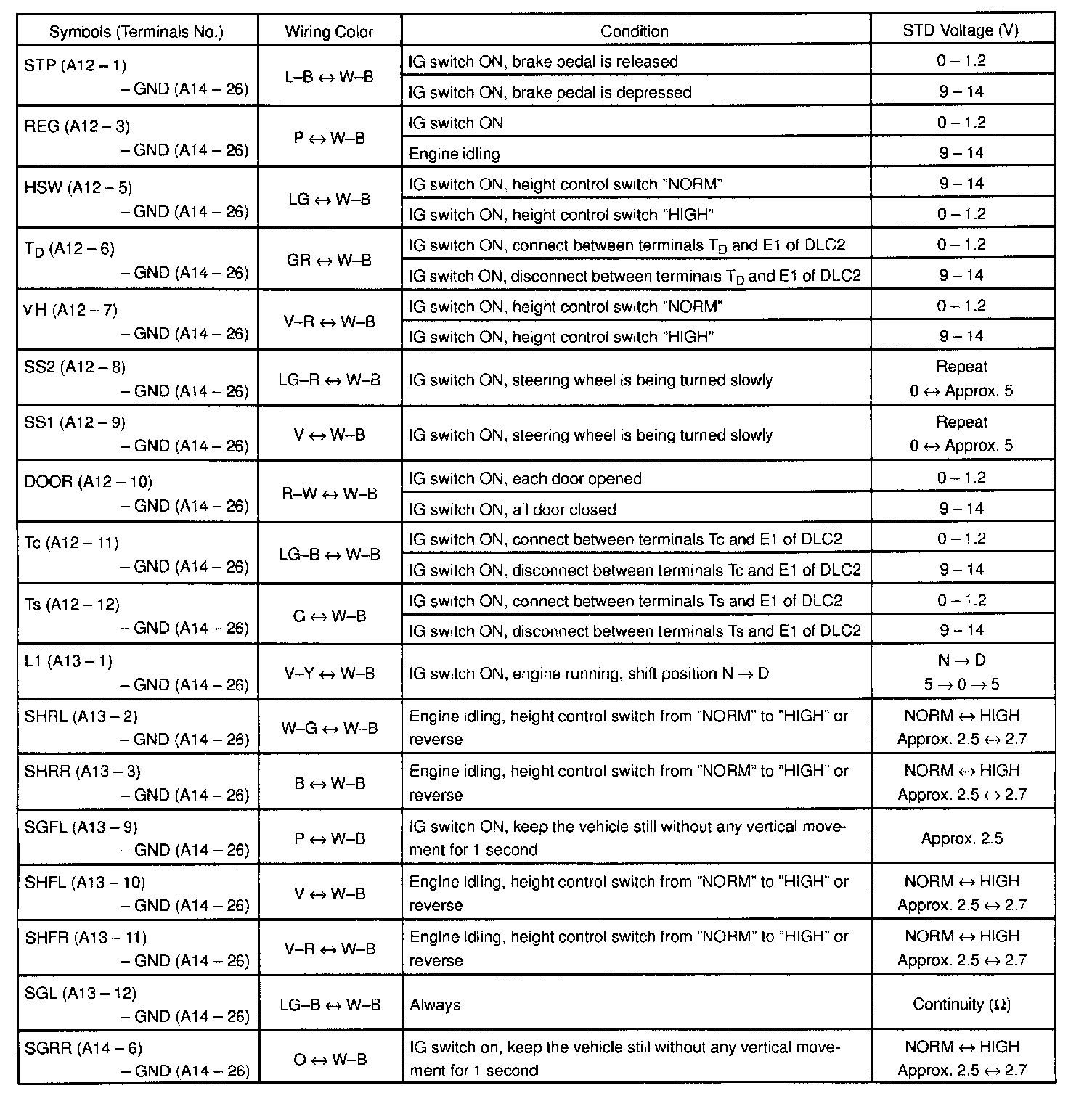

Pinout Values and Diagnostic Parameters

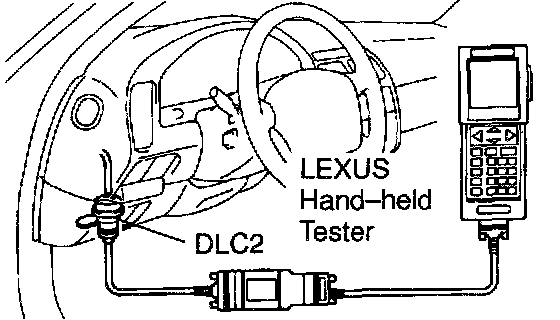

ECU Data Monitor By Using Lexus Hand-Held Testera. Hook up the LEXUS hand-held tester to the DLC2.
b. Monitor the ECU date by following the prompts on the tester screen.
HINT: LEXUS hand-held tester has a "Snapshot" function and record the monitored data.

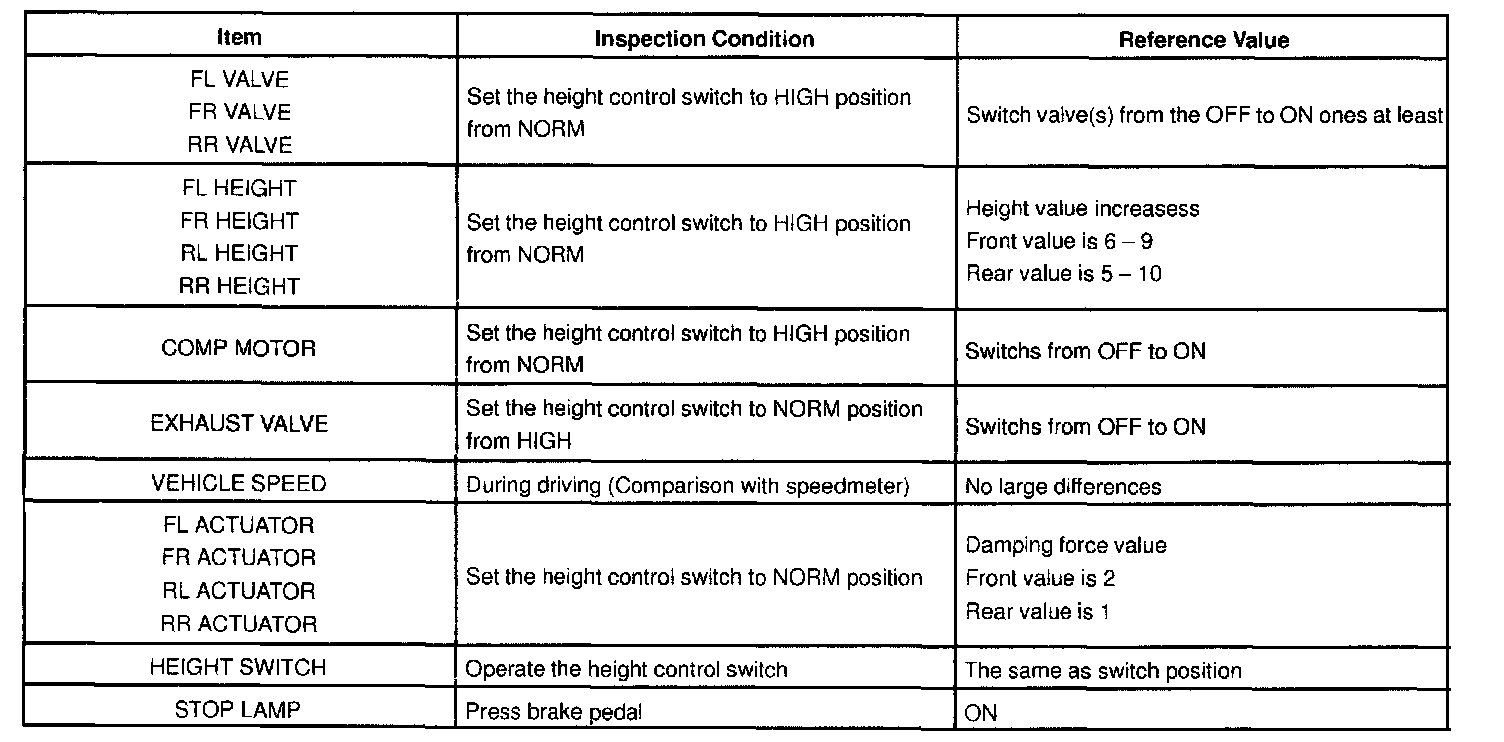

Reference Value of ECU Data

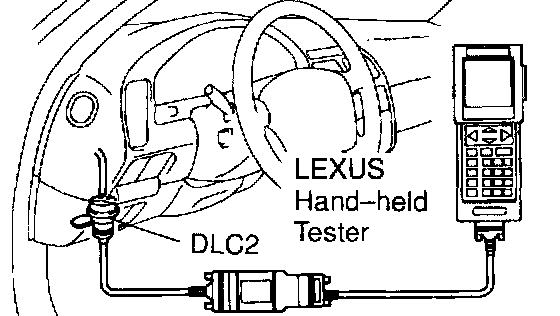

a. Hook up the LEXUS hand-held tester to the DLC2.
b. Monitor the ECU data by following the prompts on the tester screen.
Please refer to the LEXUS hand-held tester operator's manual for more information.
Part 1 Of 2:
Part 2 Of 2:

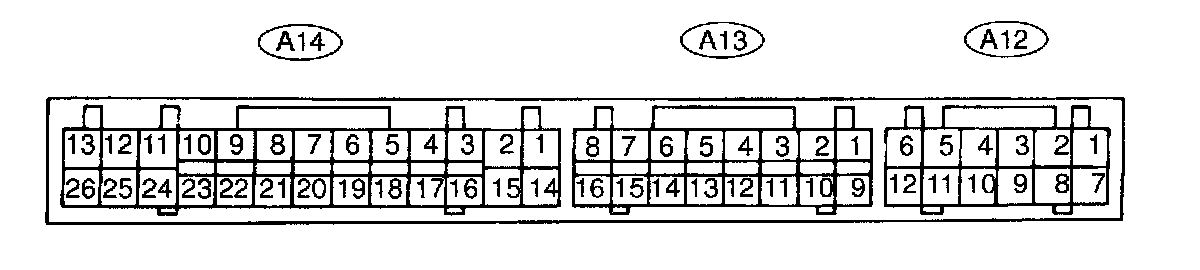

Terminals of ECU
