Shoulder Belt Anchor Motor Circuit

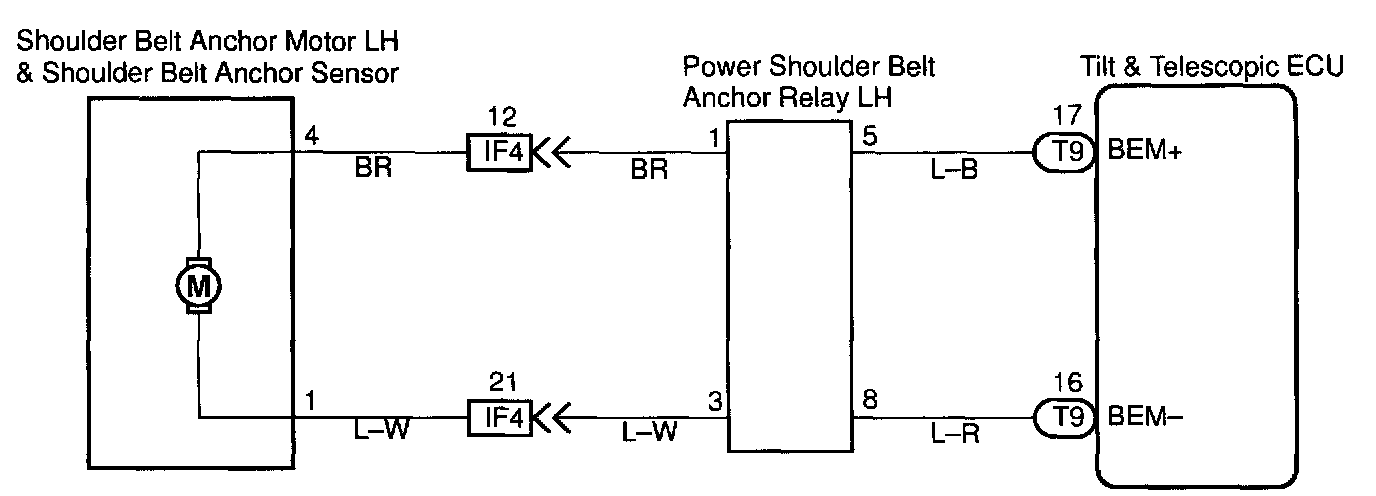

WIRING DIAGRAM

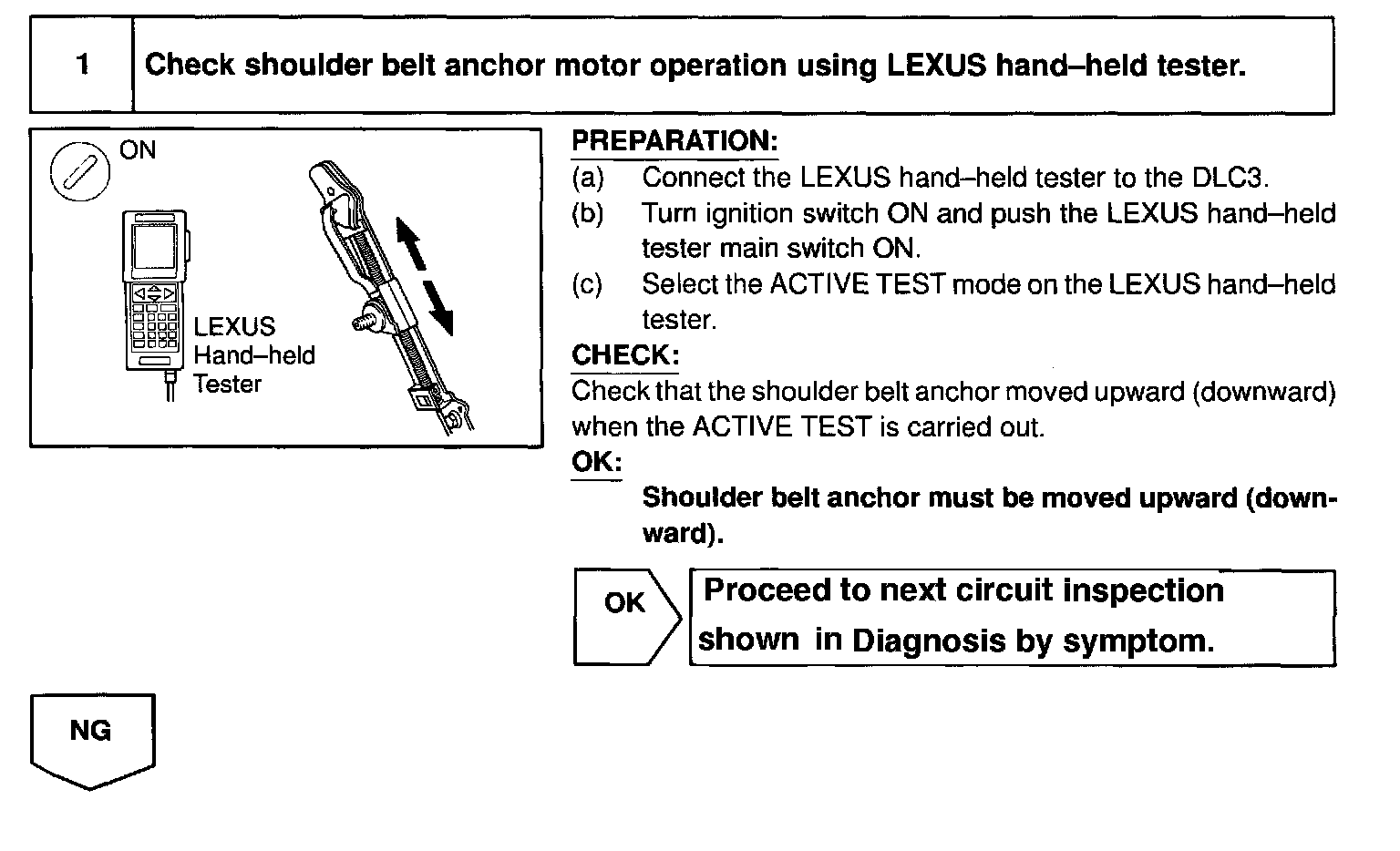

Step 1:

Step 2:

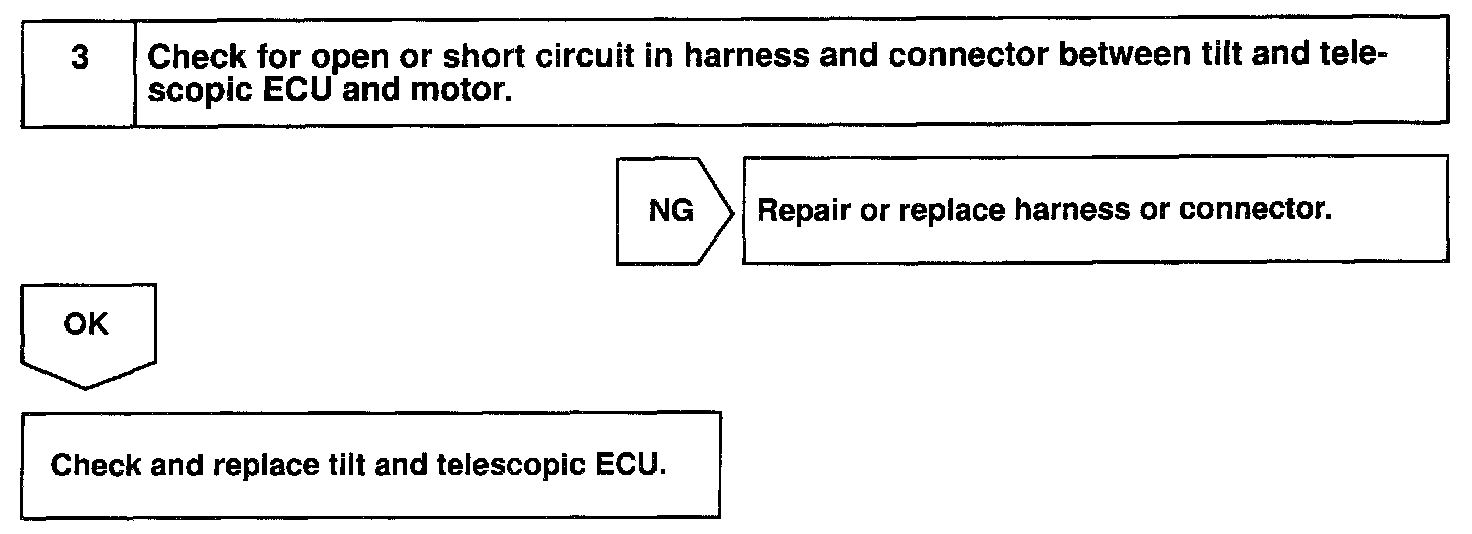

Step 3:

INSPECTION PROCEDURE
In case of using LEXUS hand-held tester start inspection from step 1.
In case of not using LEXUS hand-held tester, start inspection from step 2.
