Transmission Temperature Sensor/Switch: Testing and Inspection

CIRCUIT DESCRIPTION
The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

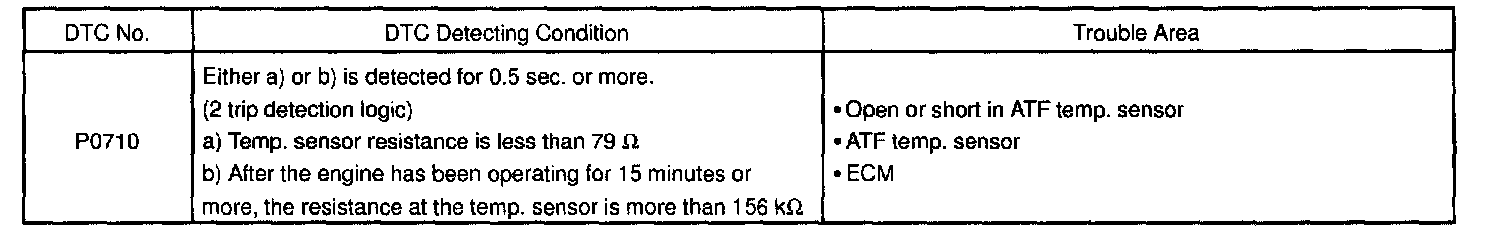

DETECTING CONDITIONS

WIRING DIAGRAM

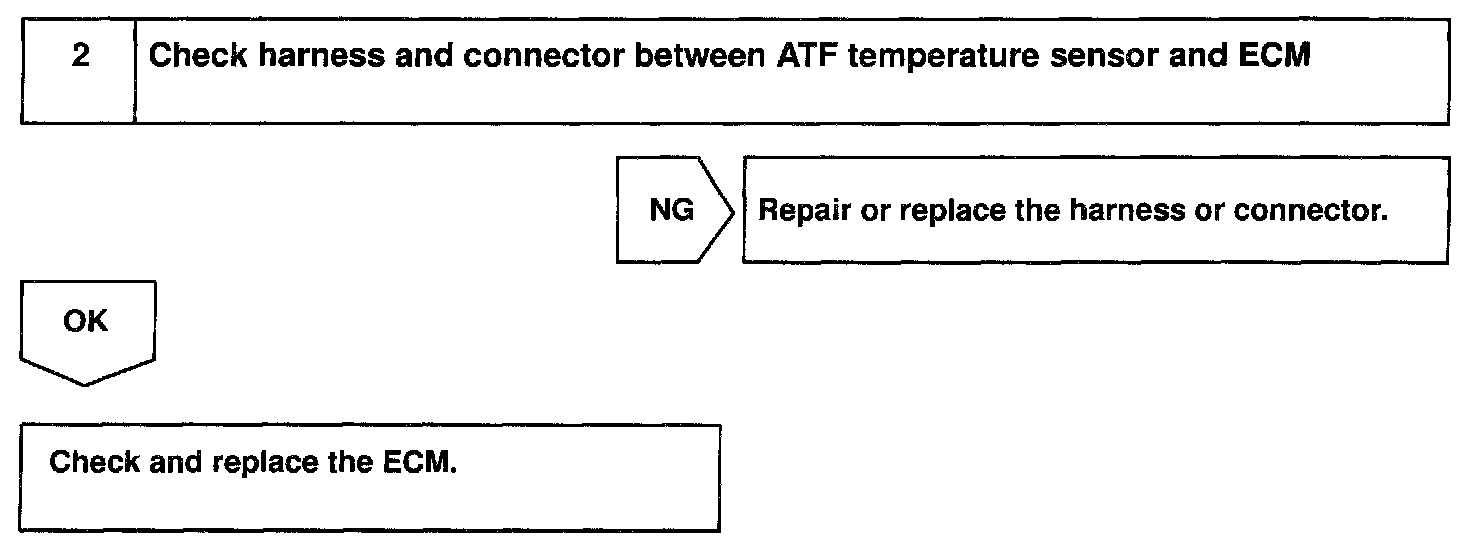

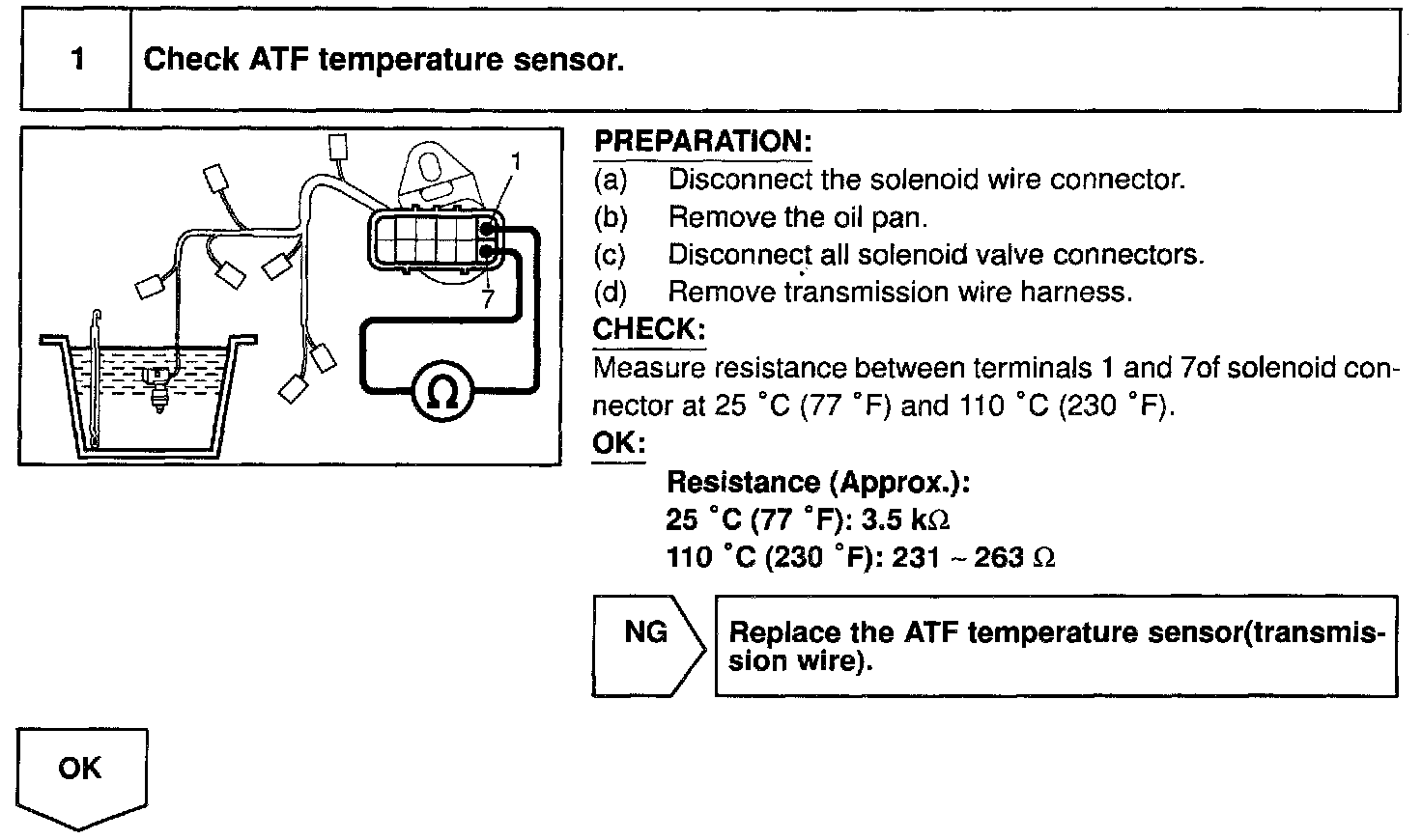

INSPECTION PROCEDURE
