Interior Light System
Interior Light System

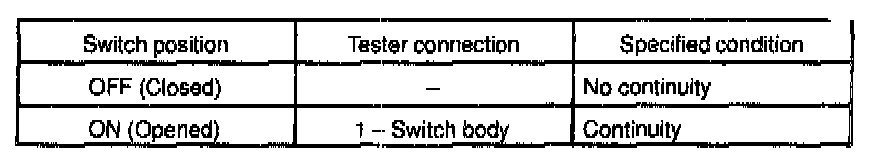

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY
If operation is not as specified, replace the switch.
