Power Mirror Switch: Testing and Inspection

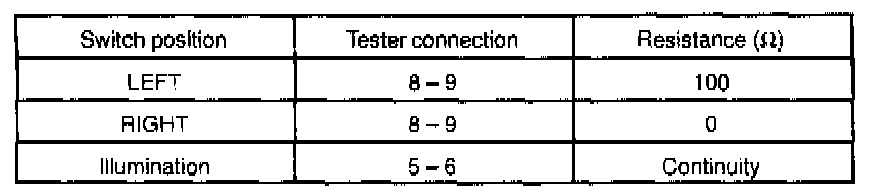

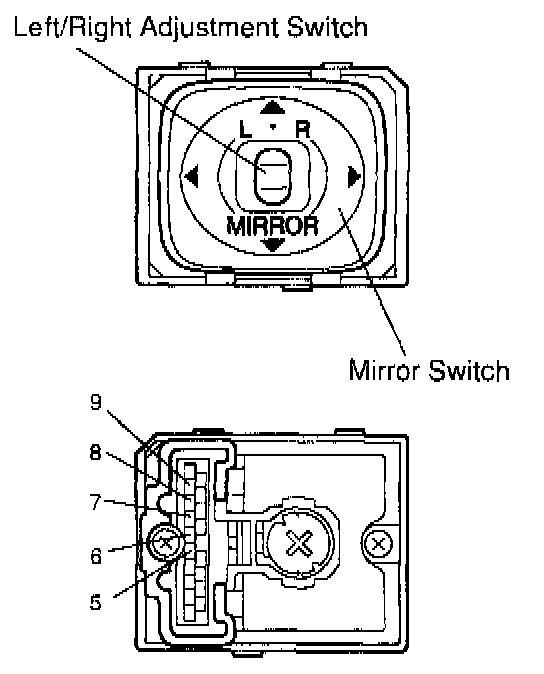

INSPECT MIRROR SWITCH CONTINUITY

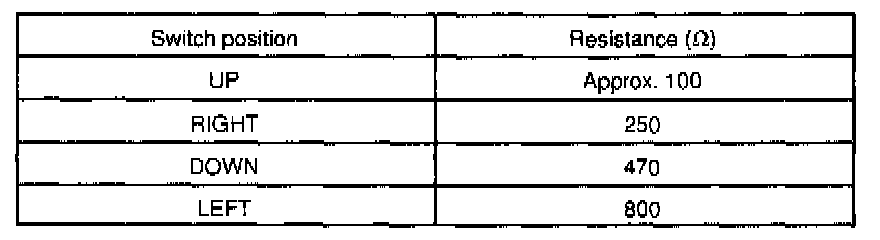

Measure resistance between terminals 7 and 9.
If continuity is not as specified, replace the switch.

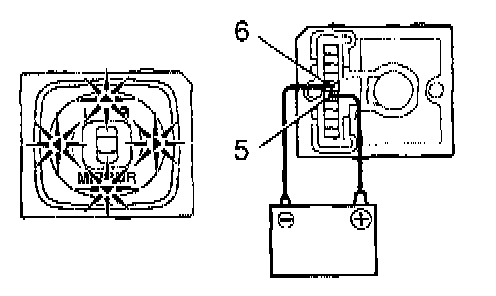

INSPECT MIRROR SWITCH INDICATOR LIGHT OPERATION




Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6 and check that the indicator light does not light up, replace the switch.







CANADA and TAIWAN models only:

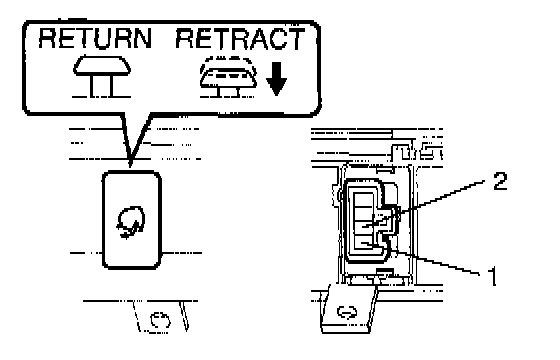

INSPECT RETRACT SWITCH CONTINUITY

CANADA and TAIWAN models only:
INSPECT RETRACT SWITCH INDICATOR OPERATION




Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal3 and check that the indicator does no light up, replace the switch.

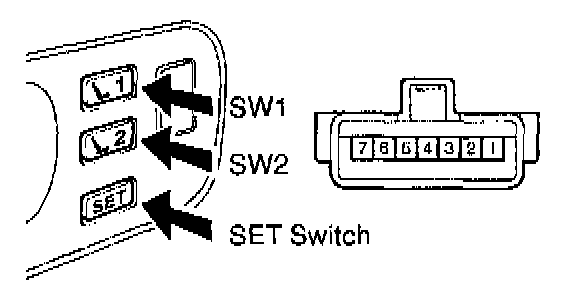

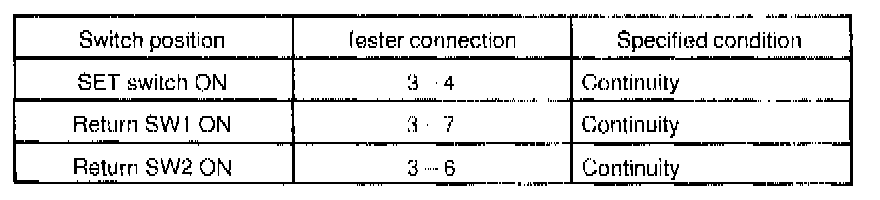

INSPECT DRIVING POSITION MEMORY AND RETURN SWITCH CONTINUITY







If continuity is not as specified, replace the switch.
If continuity is as specified, inspect the switch circuit.
