Component Tests and General Diagnostics

INSPECT DRIVER'S HEIGHT ADJUSTABLE ANCHOR MOTOR AND SENSOR OPERATION

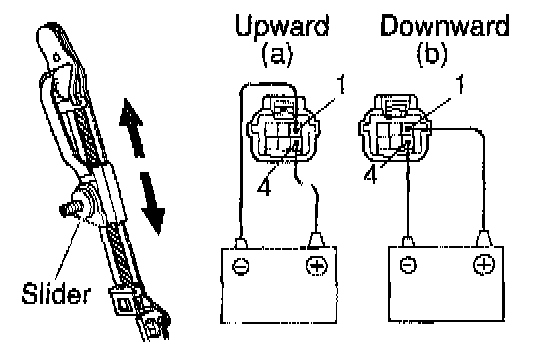

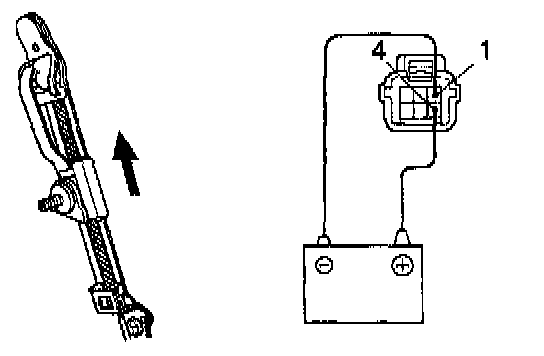

a. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 1, and check that the slider moves upward.
b. Reverse the polarity and check that the slider moves downward.
If operation is not as specified, replace the height adjustable anchor motor.

INSPECT DRIVER'S HEIGHT ADJUSTABLE ANCHOR MOTOR AND SENSOR PTC THERMISTOR OPERATION
Inspection using an ammeter:




a. Connect the positive (+) lead from the battery to terminal 1, the positive (+) lead from the ammeter to terminal 4, and the negative (-) lead to battery negative (-) terminal, then move the slider to end position.
b. Continue to apply voltage and check the current changes to less than 0.1 A within 6 to 46 seconds.




c. Disconnect the leads from terminals.
d. Approximately 60 seconds later, connect the positive (+) lead from battery to terminal 4 and the negative (-) lead to terminal 1, and check that the slider moves to the opposite side.
If operation is not as specified, replace the height adjustable anchor motor.

INSPECT DRIVER'S HEIGHT ADJUSTABLE ANCHOR MOTOR AND SENSOR PTC THERMISTOR OPERATION

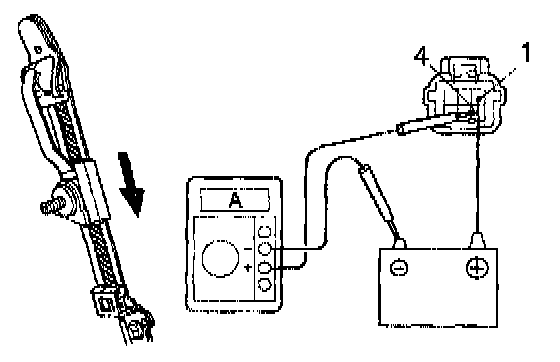

Inspection using an ammeter with a current-measuring probe:

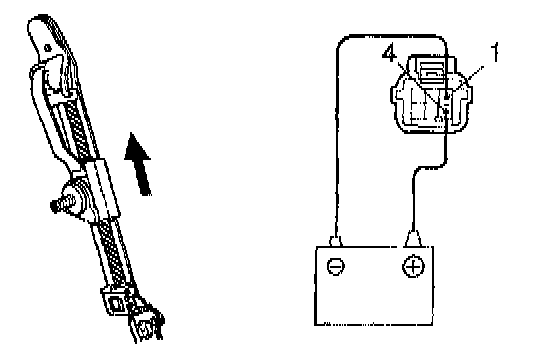

a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 4.
b. Attach a current-measuring probe to the negative (-) lead, and move the slider to the end position.
c. Check the current changes to less than 0.1 A with 6 to 46 seconds.




d. Disconnect the leads from terminals.
e. Approximately 60 seconds later, reverse the polarity, and check that the slider moves to he opposite side.
If operation is not as specified, replace the height adjustable anchor motor.

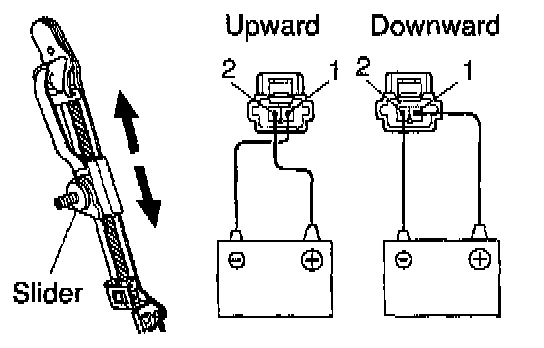

INSPECT PASSENGER'S HEIGHT ADJUSTABLE ANCHOR MOTOR AND SENSOR OPERATION

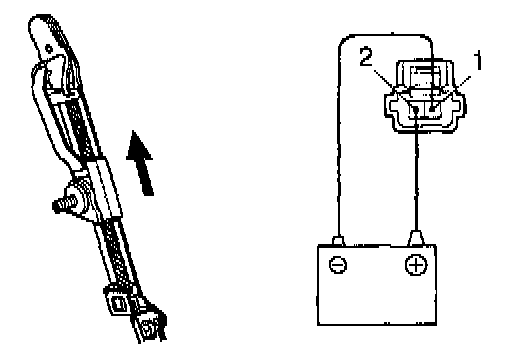

a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the slider moves upward.
b. Reverse the polarity and check that the slider moves downward.
If operation is not as specified, replace the height adjustable anchor motor.

INSPECT PASSENGER'S HEIGHT ADJUSTABLE ANCHOR MOTOR AND SENSOR PTC THERMISTOR OPERATION
Inspection using an ammeter:

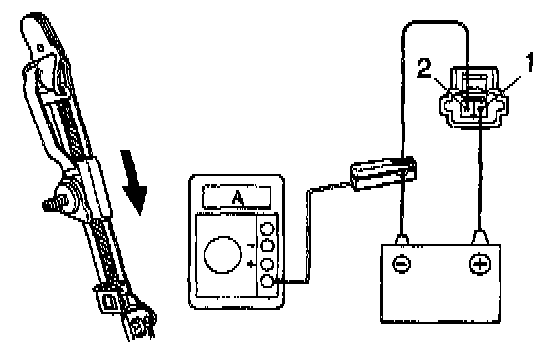

a. Connect the positive (+) lead from the battery to terminal 1, the positive (+) lead from the ammeter to terminal 2, and the negative (-) lead to battery negative (-) terminal, then move the slider to end position.
b. Continue to apply voltage and check the current changes to less than 0.1 A within 6 to 46 seconds.
c. Disconnect the leads from terminals.




d. Approximately 60 seconds later connect the positive (+) lead from battery to terminal 2 and the negative (-) lead to terminal 1, and check that the slider moves to the opposite side.
If operation is not as specified, replace the height adjustable anchor motor.

INSPECT PASSENGER'S HEIGHT ADJUSTABLE ANCHOR MOTOR AND SENSOR PTC THERMISTOR OPERATION

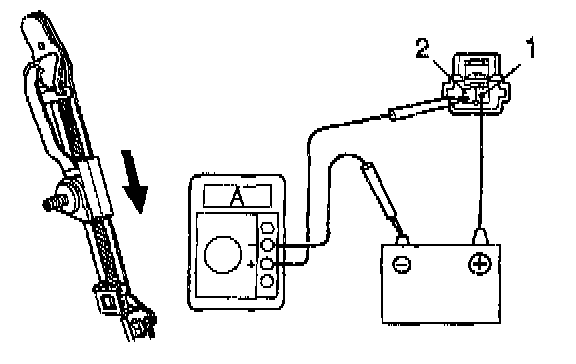

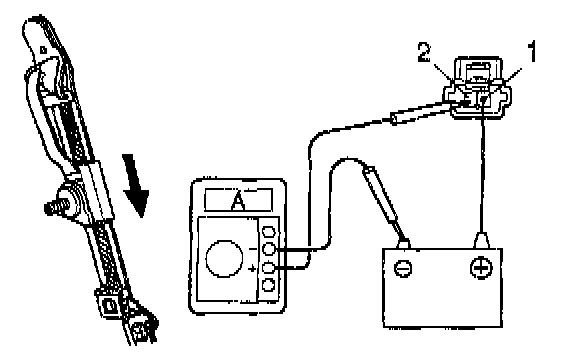

Inspection using an ammeter with a current-measuring probe:




a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.
b. Attach a current-measuring probe to the negative (-) lead, and move the slider to the end position.
c. Check the current changes to less than 0.1 A within 6 to 46 seconds.




d. Disconnect the leads from terminals.
e. Approximately 60 seconds later, reverse the polarity an- check that the slider moves to the opposite side.
If operation is not as specified, replace the height adjustable anchor motor.




INSPECT DRIVER'S SHOULDER BELT ADJUST SWITCH CIRCUIT

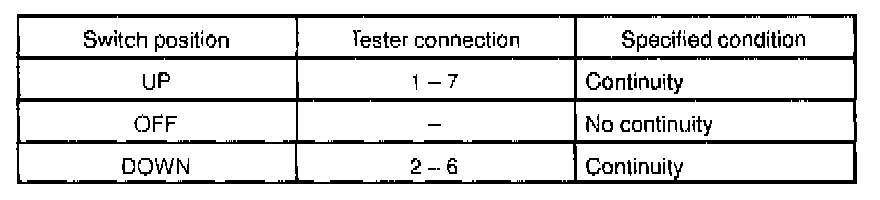

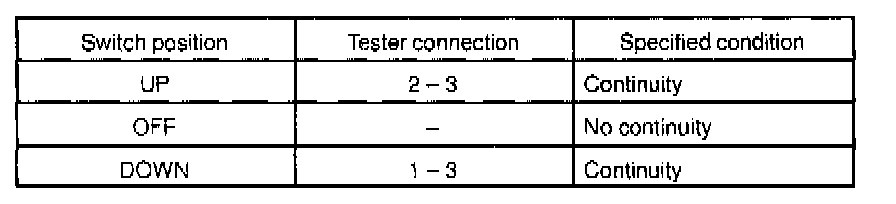

INSPECT DRIVER'S SHOULDER BELT ADJUST SWITCH CONTINUITY

INSPECT PASSENGER'S SHOULDER BELT ADJUST SWITCH CONTINUITY




If continuity is not as specified, replace the switch.

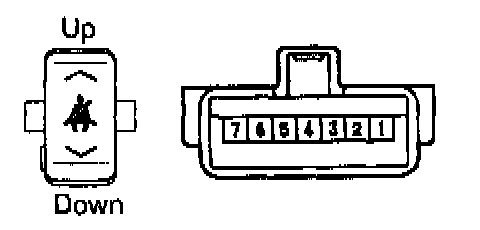

INSPECT PASSENGER'S SHOULDER BELT ADJUST SWITCH CIRCUIT

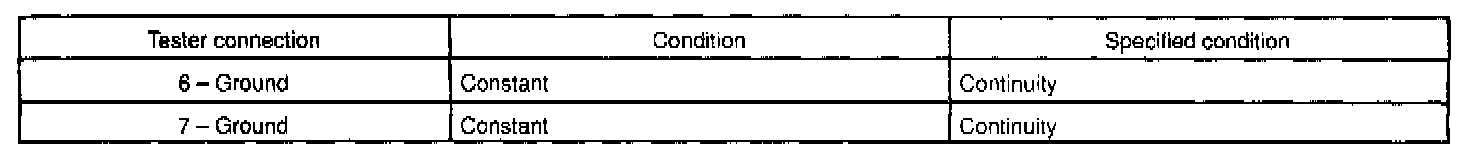

Disconnect the connector from the SWITCH and inspect the connector on the wire harness side, as Shown.
If circuit is not as specified, inspect wire harness.

INSPECT SHOULDER BELT ANCHOR RELAY OPERATION
Upward:

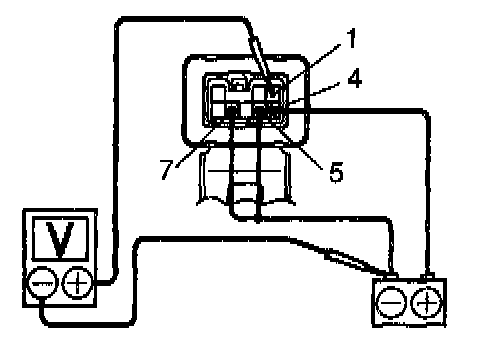

a. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to' terminal 5 and 7.
b. Connect the positive (+) lead from the voltmeter to terminal 1 and negative (-) lead to battery negative (-) terminal, and check that there is battery positive voltage.

INSPECT SHOULDER BELT ANCHOR RELAY OPERATION
Downward:

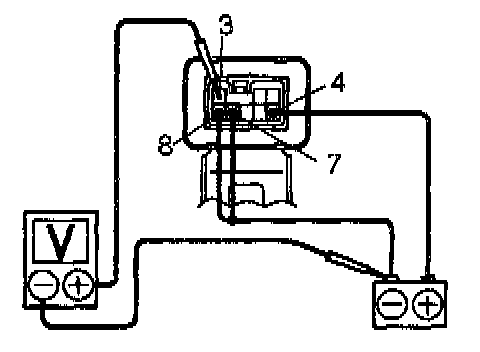

a. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 7 and 8.
b. Connect the positive (+) lead from the voltmeter to terminal 3 and negative (-) lead to battery negative (-) terminal, and check that there is battery positive voltage.
If operation is not as specified, replace rheostat light control.

INSPECT SHOULDER BELT ANCHOR RELAY CIRCUIT







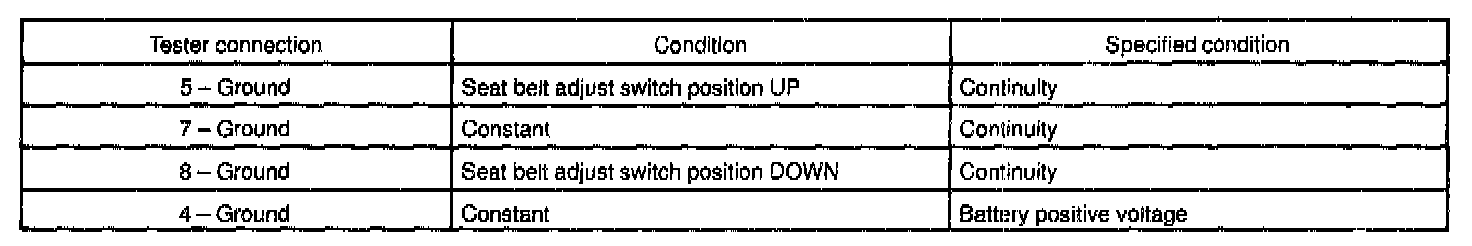

Disconnect the connector from the rheostat light control and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.

INSPECT TILT AND TELESCOPIC ECU CIRCUIT







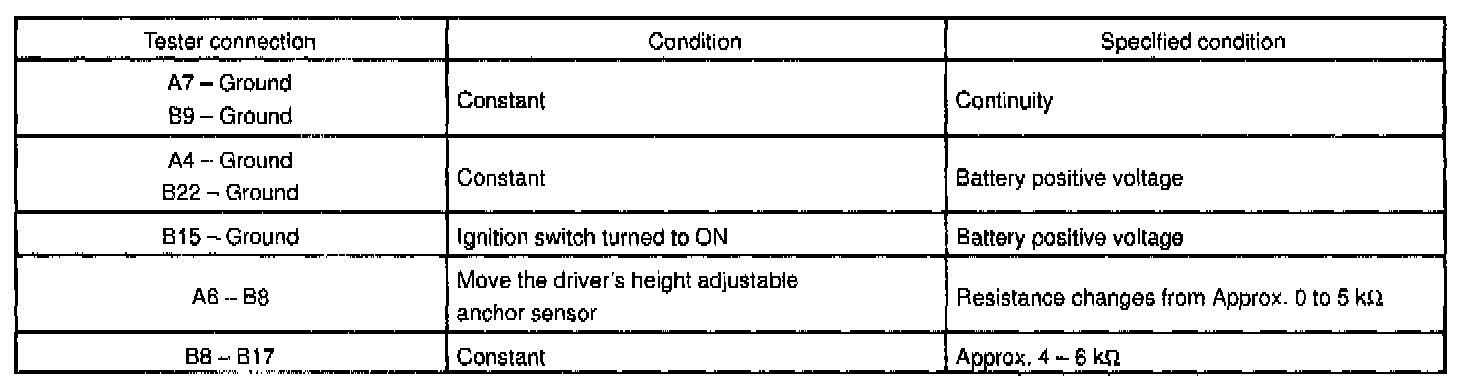

Disconnect the ECU connector, and inspect the connector wire harness side, as shown.
If circuit is not as specified, inspect the circuit connected to other parts.
