Installation

NOTE:
- Never use SRS parts from another vehicle. When replacing parts, replace them with new ones.
- Never reuse the side airbag sensor assembly involved in a collision when the airbag has deployed.
- Never repair a sensor in order to reuse it.

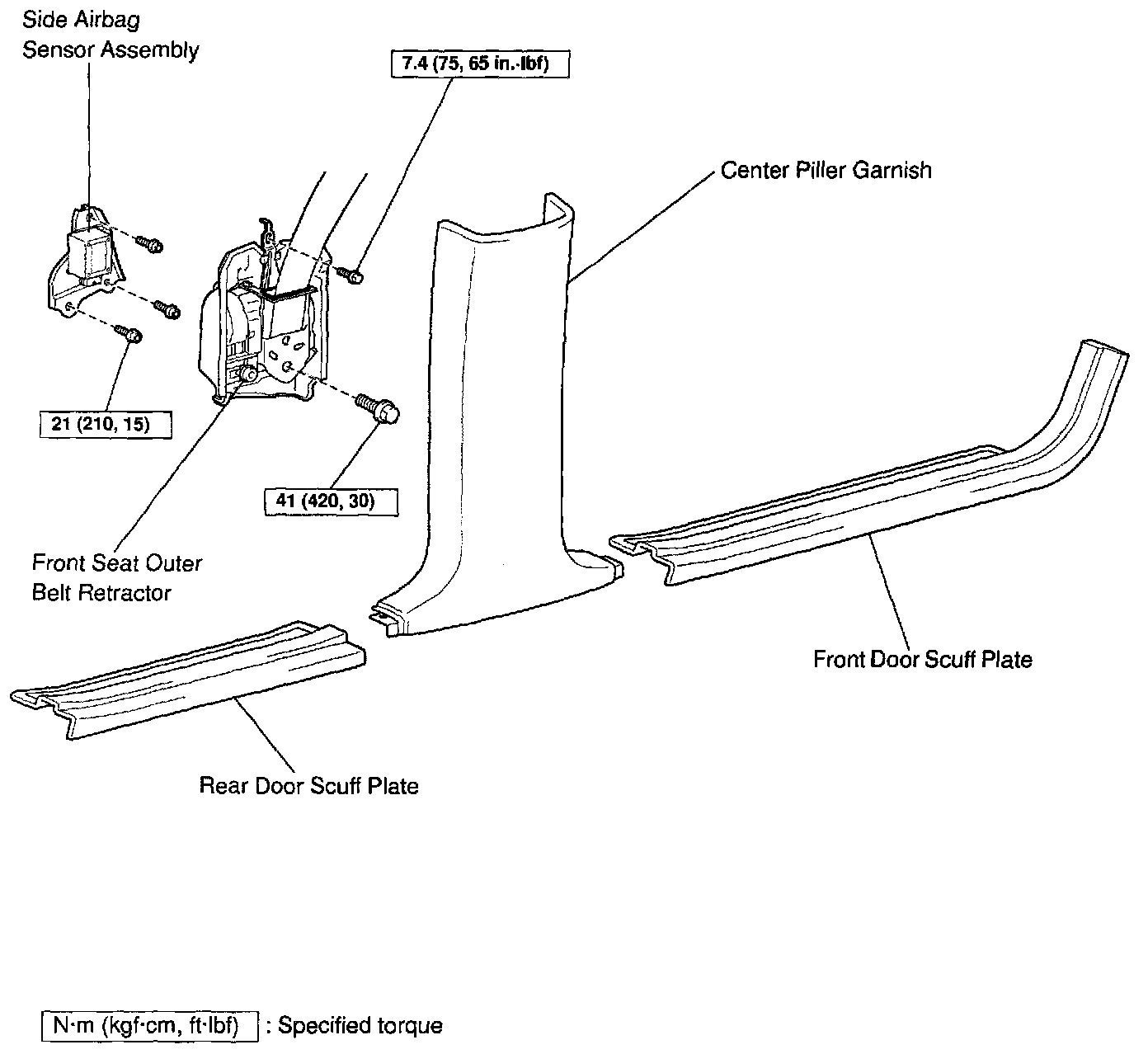

1. INSTALL SIDE AIRBAG SENSOR
a. Using a torx wrench install the side airbag assembly with 3 screws.
Torx wrench: T40 (Part No.09042-00020 or locally manufactured tool)

Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

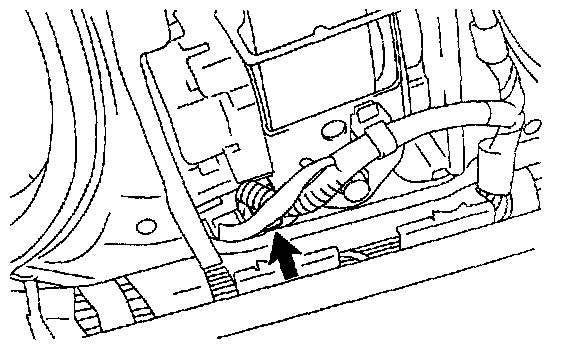

b. Connect the side airbag sensor connector.

NOTE:
- Installation of the connector is done with the sensor assembly installed. Make sure the sensor assembly is installed with the specified torque.
- If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
- When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
- After installation, shake the sensor assembly to check that there is no looseness.

2. INSTALL FRONT SEAT OUTER BELT RETRACTOR
a. Install the retractor with 2 bolts.

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)
Upper bolt: 7.4 N.m (75 kgf.cm, 85 in.lbf)
Lower bolt: 41 N.m (420 kgf.cm, 30 ft.lbf)

b. Connect the retractor switch connector.






c. Connect the pretensioner connector.

3. INSTALL THESE PARTS:
a. Center pillar lower garnish
b. Front door scuff plate
c. Rear door scuff plate
