Connector Joining Wire Harness and Wire Harness

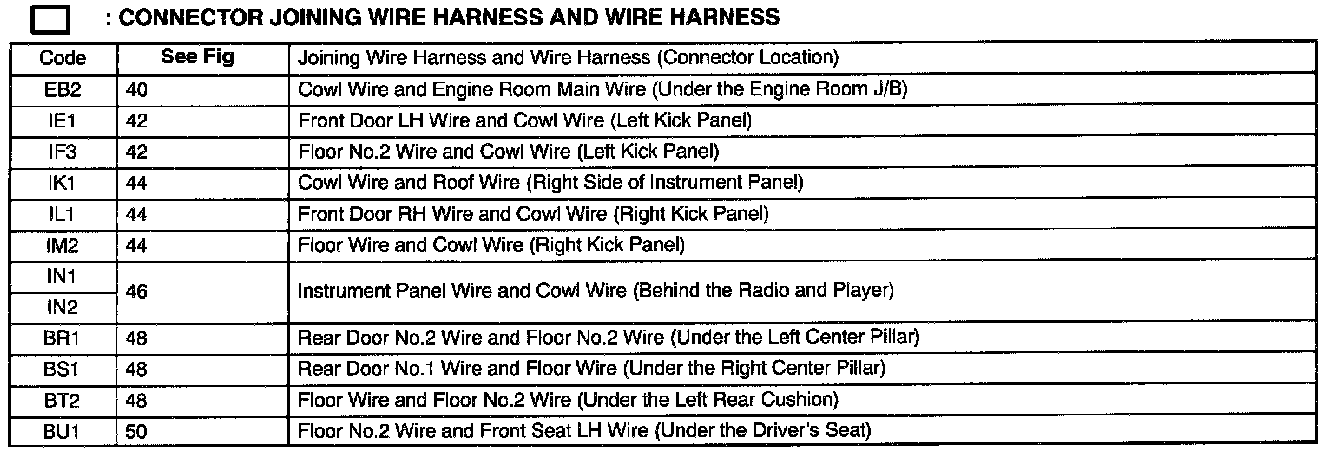

CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS




FIG 40




FIG 42




FIG 44




FIG 46




FIG 48




FIG 50
