Navigation Module: Service and Repair

REPLACE HARD DISK




a. Remove the 3 bolts and the navigation ECU.
b. GPS receipt not available.

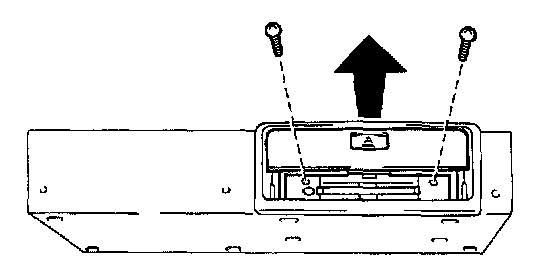

c. Remove the 2 screws and the cover.




d. Remove hard disk.

NOTE: Do not apply any impact to the hard disk.
There is a fear to cause damage to the hard disk if applying impact.
