Fuel Pump Ballast Resistor: Testing and Inspection

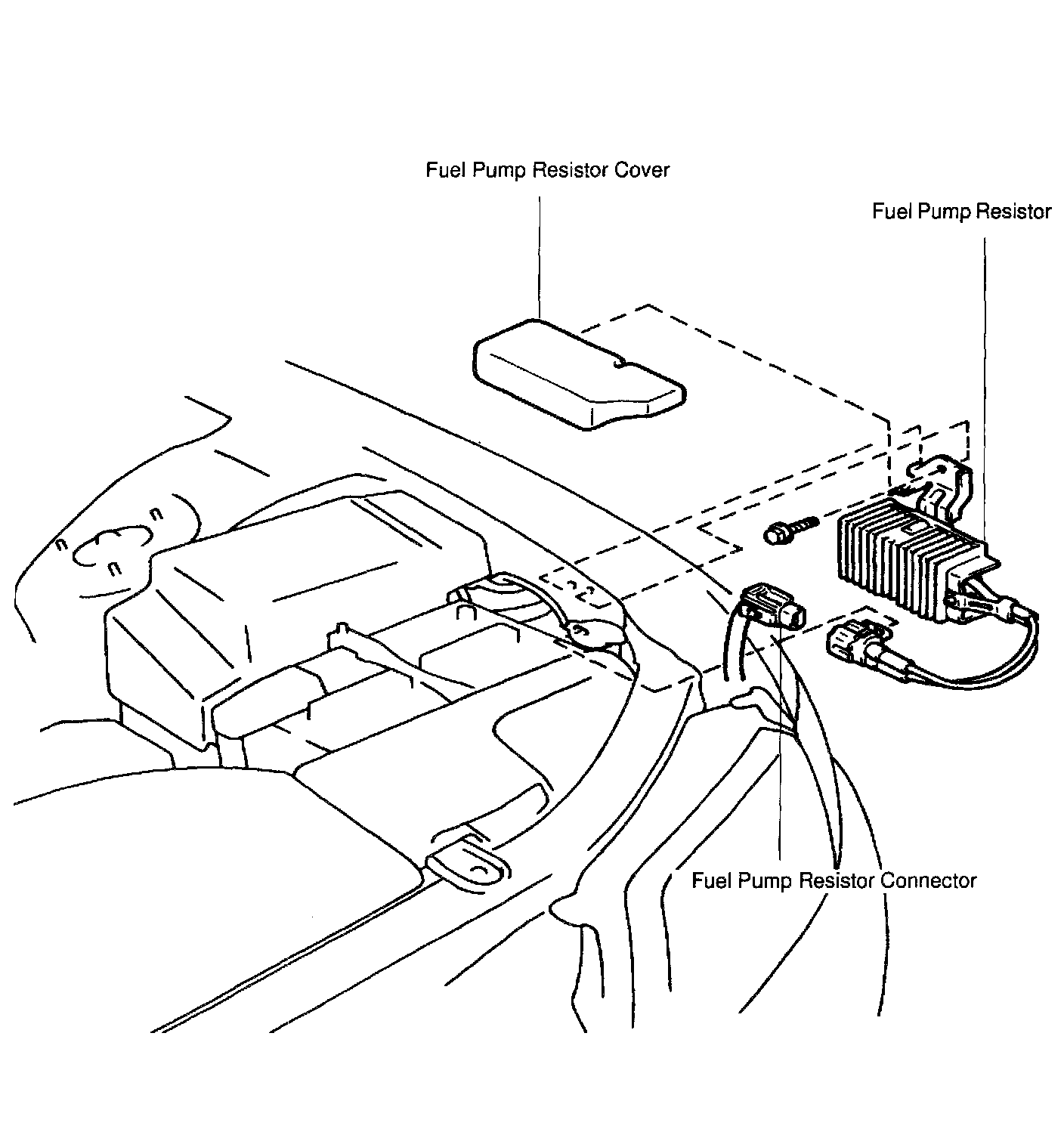

COMPONENTS

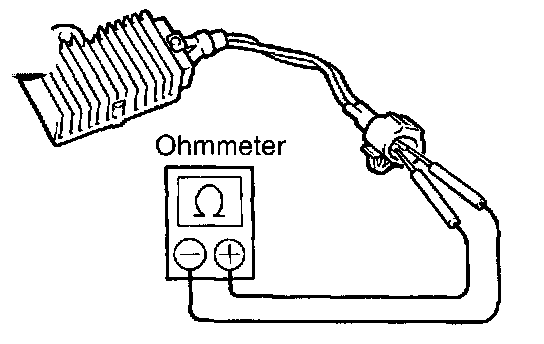

INSPECT FUEL PUMP RESISTOR
Using an ohmmeter, measure the resistance between the terminals.
Resistance: 0.70-0.76 ohm at 20 °C (68 °F)
If the resistance is not as specified, replace the resistor.
