Fuel Pressure Regulator: Service and Repair

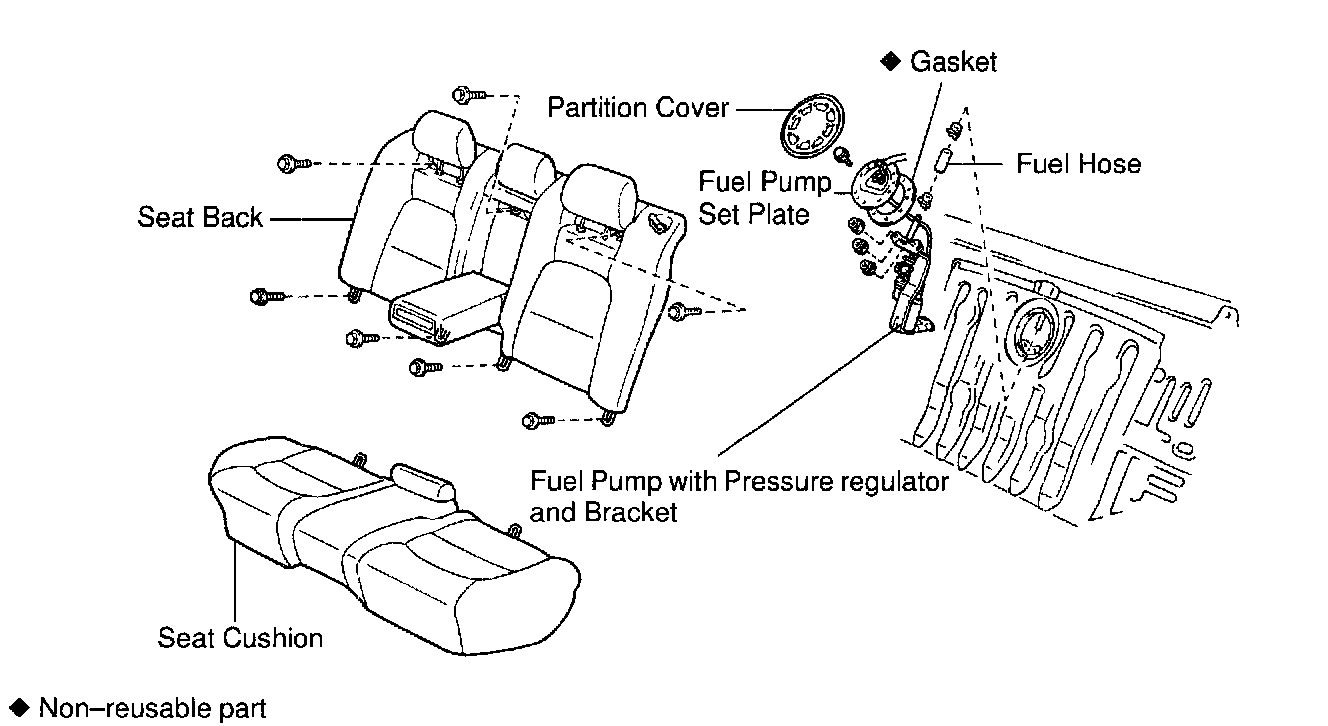

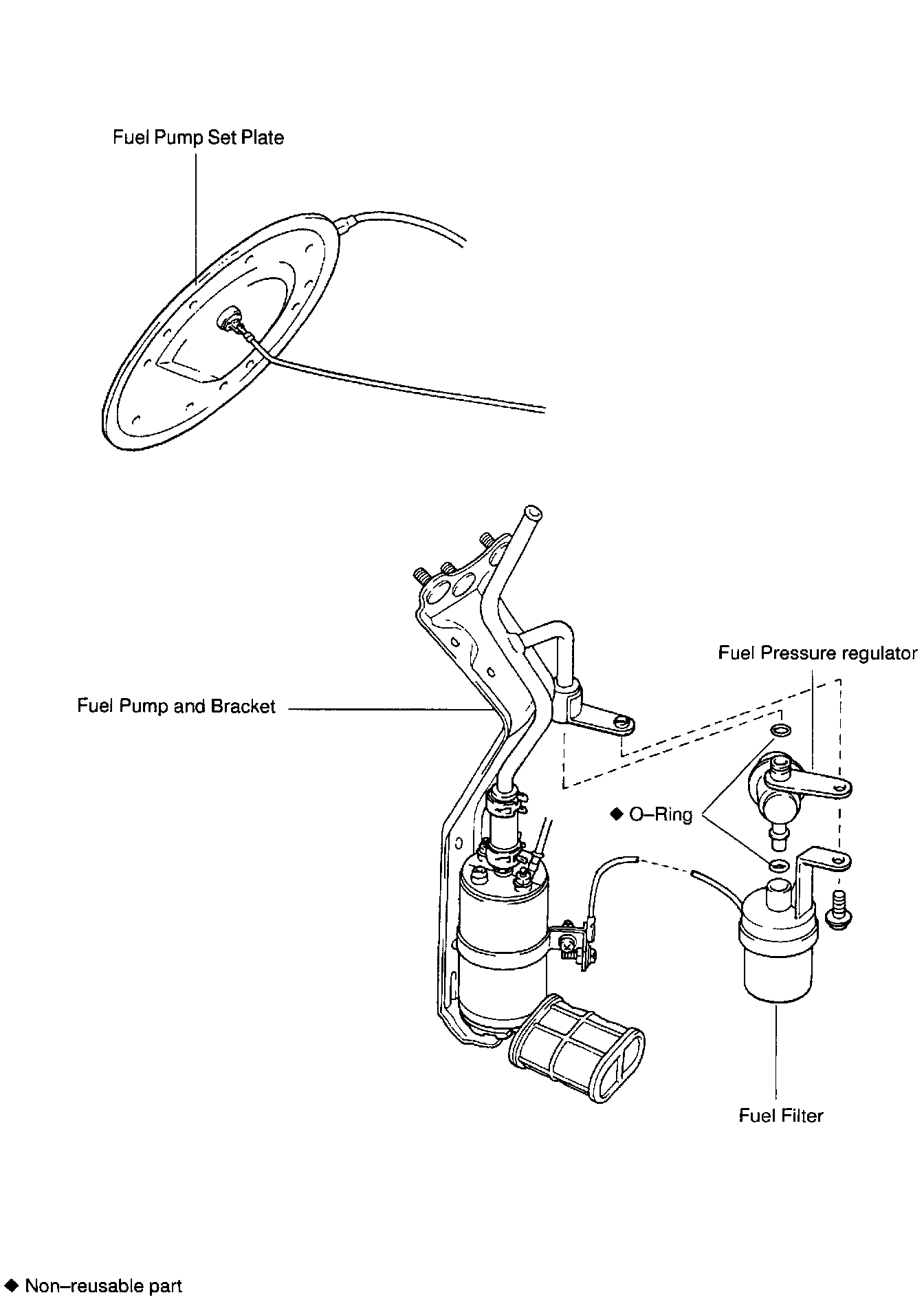

COMPONENTS

REMOVAL

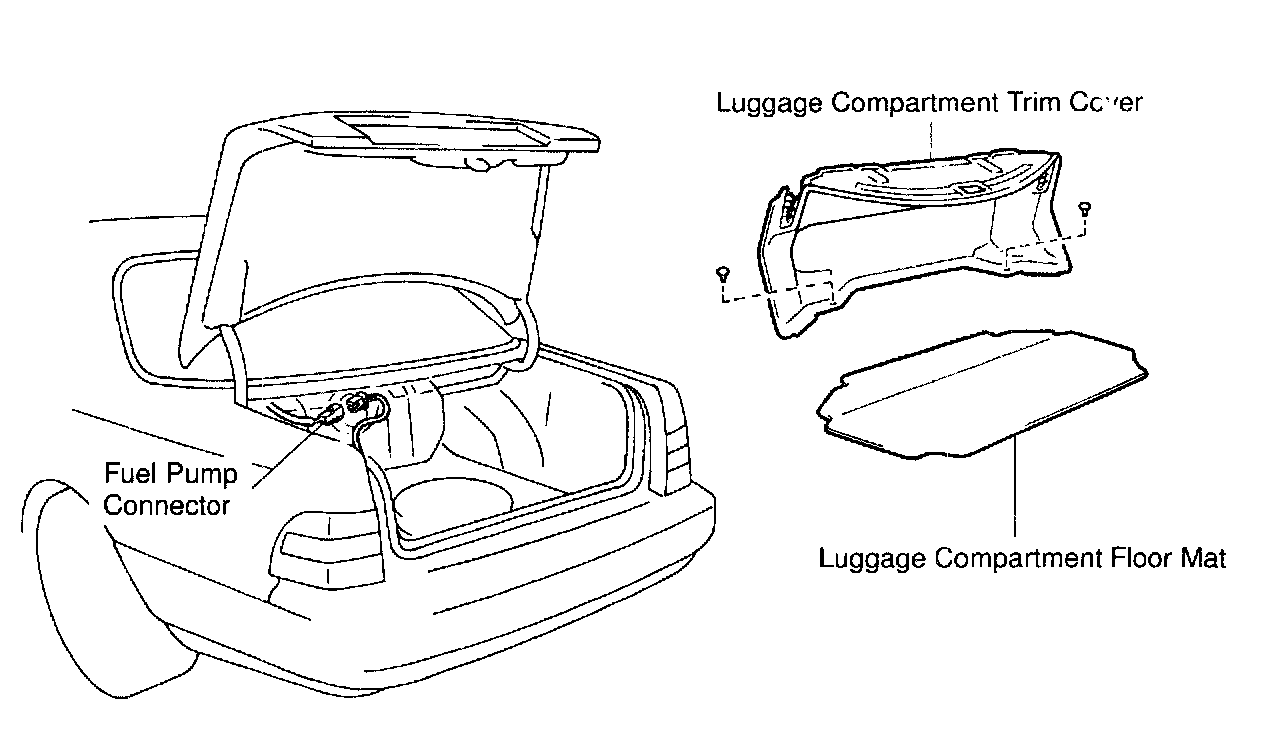

1. REMOVE FUEL PUMP ASSEMBLY FROM FUEL TANK

2. REMOVE FUEL PRESSURE REGULATOR

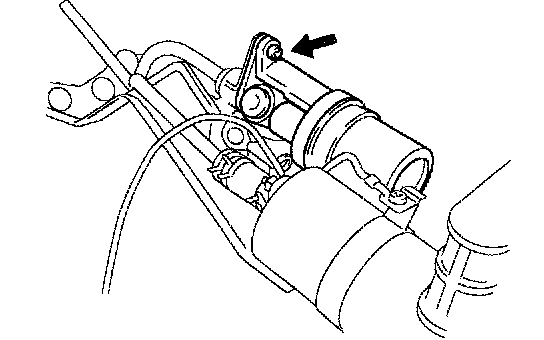

a. Remove the screw, fuel filter and fuel pressure regulator.
b. Remove the O-rings from fuel pressure regulator and fuel filter.

INSTALLATION
1. INSTALL FUEL PRESSURE REGULATOR

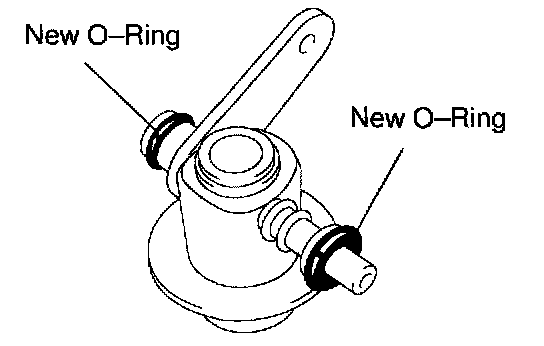

a. Apply a light coat of gasoline to 2 new O-rings, and install them to the pressure regulator.
b. Insert the pressure regulator into the fuel filter by hand completely.

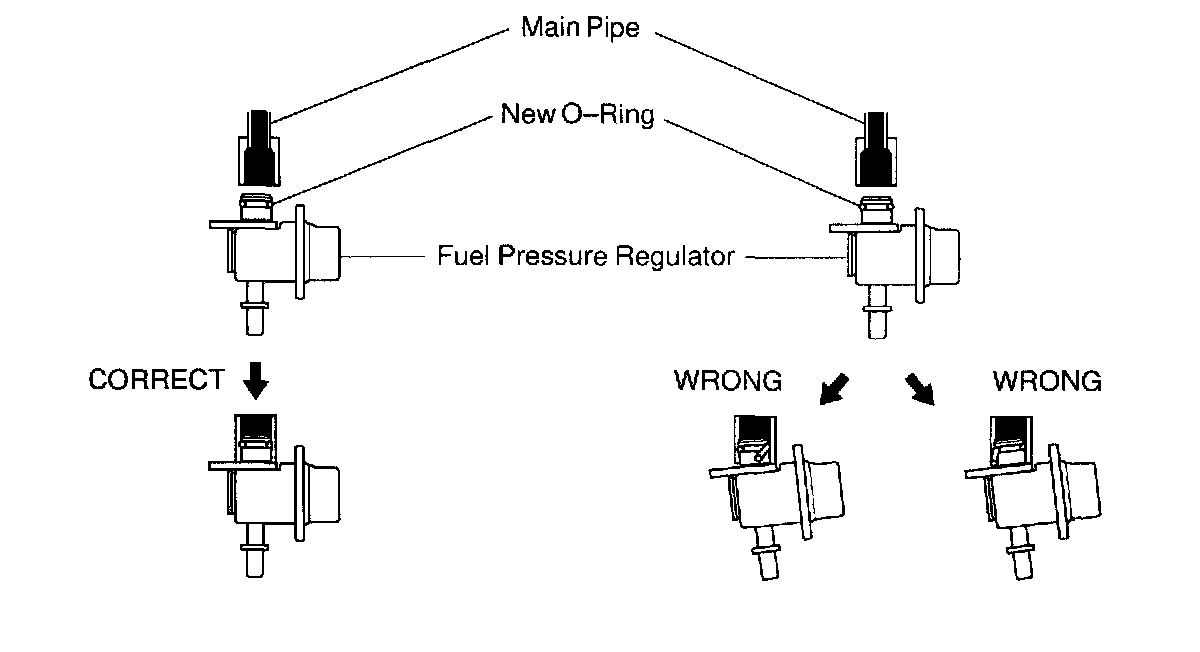

c. Insert the pressure regulator and fuel filter assembly into the delivery pipe by hand completely.




d. Check that the fuel pressure regulator and fuel filter rotate smoothly

NOTE: If it does not rotate smoothly. the O-ring may be pinched, so remove the pressure regulator, fuel filter and do steps (a) and (b) above again.




e. Install the screw.
Torque: 2.0 N.m (20 kgf.cm, 17 in.lbf)

2. INSTALL FUEL PUMP ASSEMBLY TO FUEL TANK
