With Manufacturer's Scan Tool

DTC CHECK (Using LEXUS hand-held tester)

a. Prepare the hand-held tester.

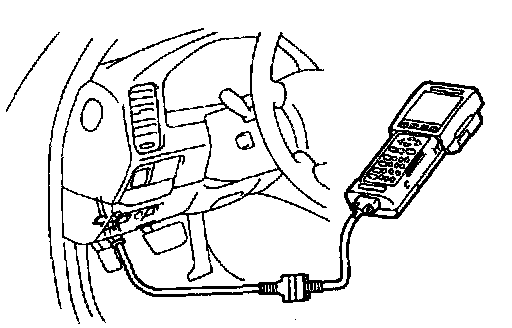

b. Connect the hand-held tester to DLC3.
c. Turn the ignition switch ON and switch the hand-held tester main switch ON.
d. Use the hand-held tester to check the DTCs, note them down. (For opening instructions, see the hand-held tester's instruction book.)
e. See "Trouble Code Description" to confirm the details of the DTCs.
