LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

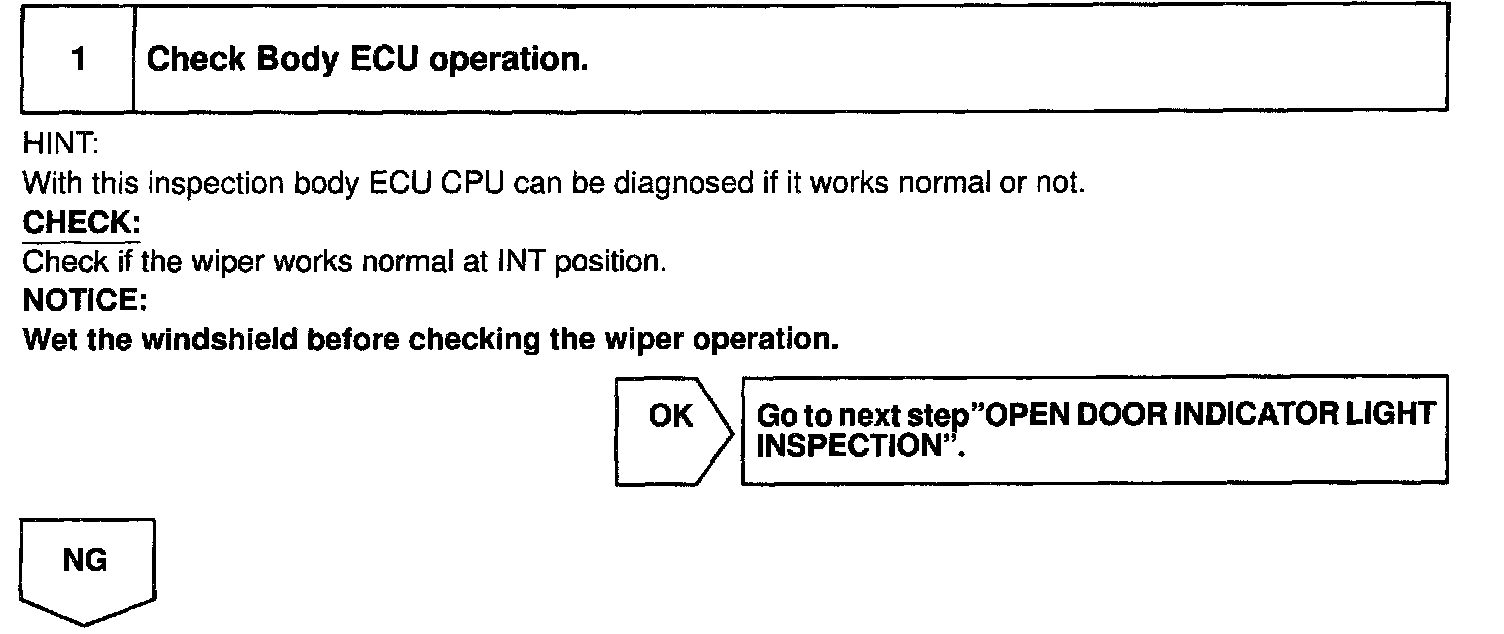

Step 1:
Step 2:
INSPECT BODY No.1 ECU

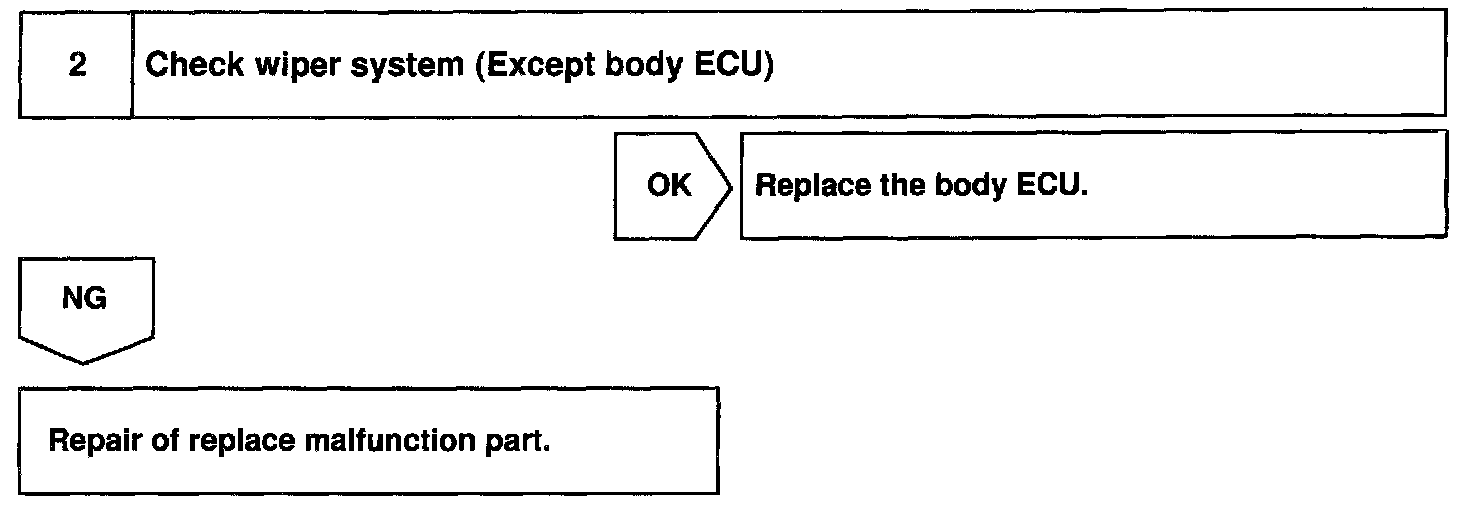

Step 1:
INSPECT OPEN DOOR INDICATOR LIGHT
