Spot Lamp: Testing and Inspection

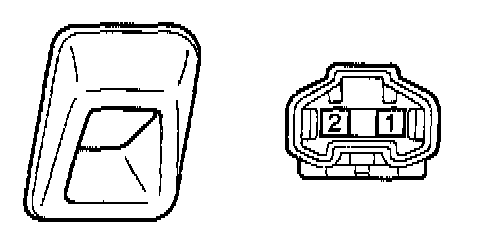

INSPECT SPOT LIGHT CONTINUITY




Using the ohmmeter, check that there is continuity between terminals.
If continuity is not as specified, replace the bulb or spotlight assembly.

INSPECT SPOT LIGHT CIRCUIT

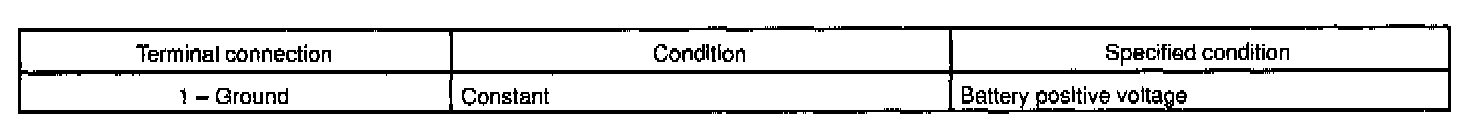

Disconnect the connector from the light and inspect the connector on the wire harness, as shown.
If circuit is not as specified, inspect the power source or wire harness.
