Instrument Cluster / Carrier: Service and Repair

COMPONENTS

DISASSEMBLY




1. REMOVE COVER
a. Remove the 7 screws.
b. Disconnect the cover from the meter case.

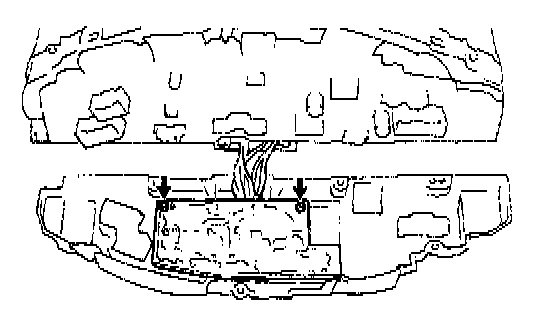

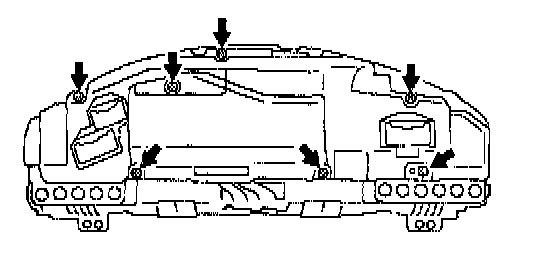

2. REMOVE COMBINATION METER ECU (No.2)
a. Remove the 2 screws.
b. Disconnect the connector.

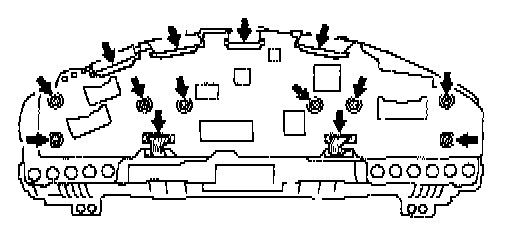

3. REMOVE COMBINATION METER ECU (No.1)
a. Remove the 8 screws and 6 connectors.
b. Remove the power source unit from the meter case.

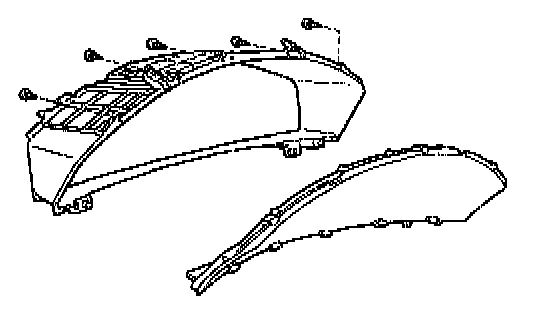

4. REMOVE METER HOOD
Remove the 8 screws and the meter hood from the meter case.




5. REMOVE METER GLASS
Remove the 5 screws and the meter glass.

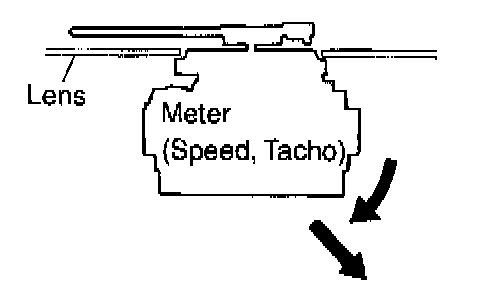

6. REMOVE METER LENS FROM CASE
Separate the meter lens together with the speedometer, tachometer and 2 gauges from the meter.

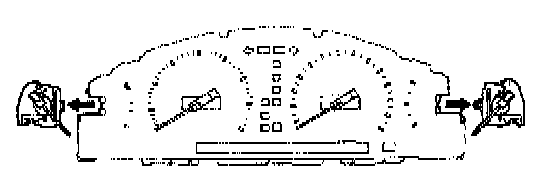

7. REMOVE FUEL AND TEMPERATURE GAUGE
Release and separate the 2 gauges from the lens.

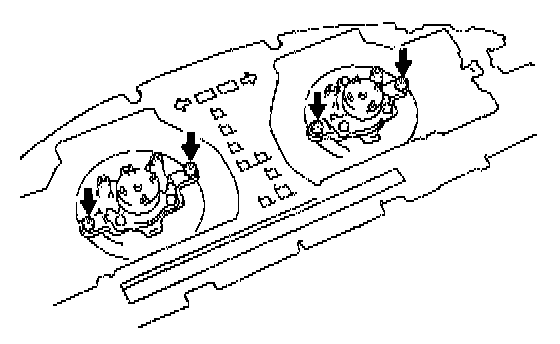

8. REMOVE SPEEDOMETER AND TACHOMETER




a. Remove the 4 screws, and the speedometer and tachometer.




b. Keep the indicator needle horizontal.
c. Remove the indicator needle taking care not to strike the lens.

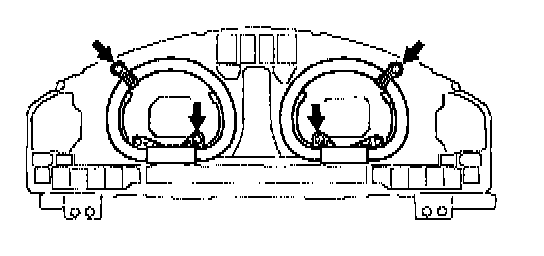

9. REMOVE 2 COLD CATHODE TUBES
a. Remove the 4 screws and 2 clips.
b. Remove the 2 cold cathode tubes.
c. Remove the 2 grommets.
d. Remove the A/T lens A and B.




10. REMOVE CIRCUIT PLATE
a. Disconnect the A/T plate with the 2 screws.

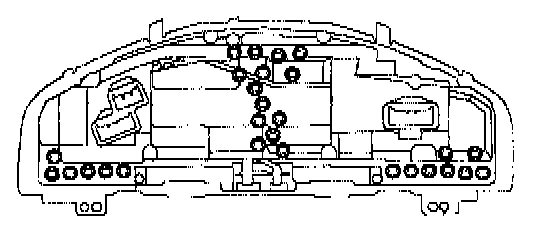

b. Remove the 28 warning lights.
c. Remove the circuit plate from the case.

REASSEMBLY

Installation is in the reverse order of disassembly.
