Instrument Cluster / Carrier: Description and Operation

CIRCUIT DESCRIPTION

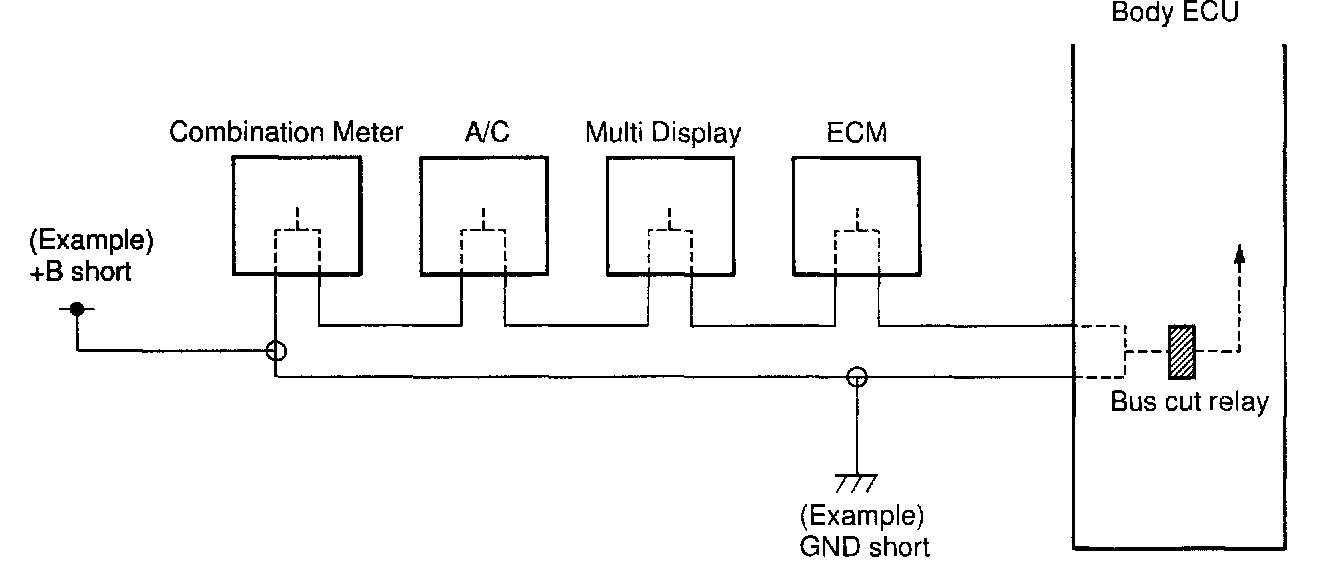

This DTC is output when +B or GND short occurs on instrument panel system communication bus. If +B or GND short is detected on instrument panel system communication bus, separate it by bus cut relay in body ECU to prevent while communication buses' failure.
