Door/Trunk Ajar Indicator/Lamp: Testing and Inspection

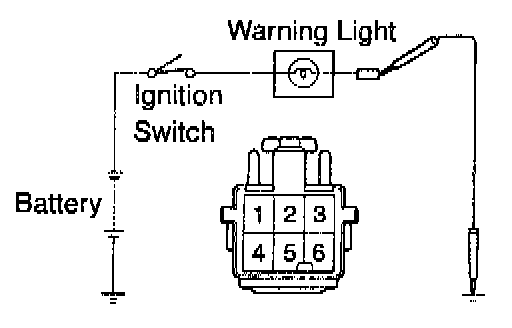

INSPECT OPEN DOOR WARNING LIGHT




Disconnect the connector from the door lock assembly and ground terminal 3 on the wire harness side connector, and check that the warning light lights up.
If the warning light does not light up, inspect the bulb or wire harness or body ECU.
