Clock: Testing and Inspection

HINT: Troubleshoot the clock according to the table.

Problem No.
Clock will not operate 1
Clock loses or gains time * 2

* ± 1.5 seconds/day

1. CLOCK WILL NOT OPERATE
a. Check that the battery positive voltage is 10 - 16 V.
If voltage is not as specified, replace the battery.
b. Check that the DOME FR, GAUGE and FR CIG fuses in not below.
If the fuse is blown, replace the fuse and check for short.

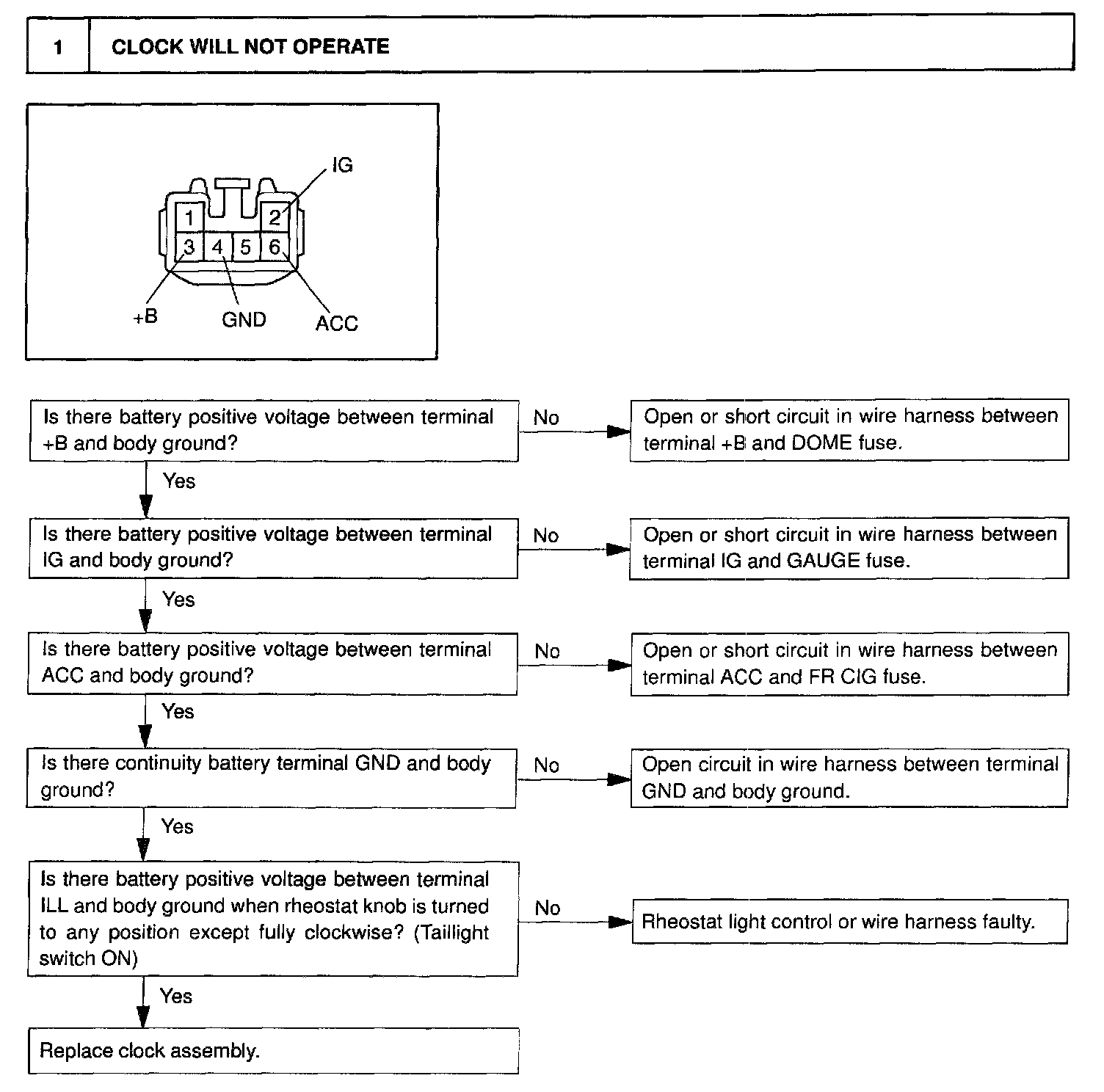

c. Troubleshoot the clock as follows.

HINT: Inspect the connector on the wire harness side.

2. CLOCK LOSES OR GAINS TIME
a. Check that the battery positive voltage is 10 - 16 V.
If voltage is not as specified, replace the battery.
b. Inspect the error of the clock.
Allowable error (per day): ± 2.0 seconds
If the error exceeds the allowable error, replace the clock assembly.
c. Check if the clock adjusting button is sticking in position and has failed to return.




d. Troubleshoot the clock as follows.

HINT: Inspect the connector on the wire harness side.
