Component Inspection

INSPECT WIRELESS DOOR LOCK BUZZER OPERATION

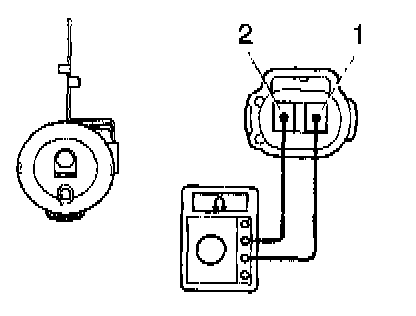

Connect the positive (+) lead from the ohmmeter to terminal 1
and the negative (-) lead to terminal 2, and measure resistance
approx. 1 K Ohms.
If resistance is not as specified, replace the buzzer.
