Description of On-Board Diagnostics

1. WARNING FOR A/C COMPRESSOR LOCK

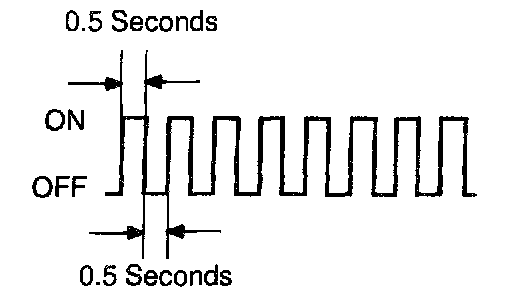

If compressor lock occurs during A/C operation, the A/C switch indicator on the A/C control assembly starts blinking. When this occurs, check for compressor lock (trouble code 22) using DTC check then proceed to inspect the circuit or the component.




2. LIST OF OPERATION METHODS

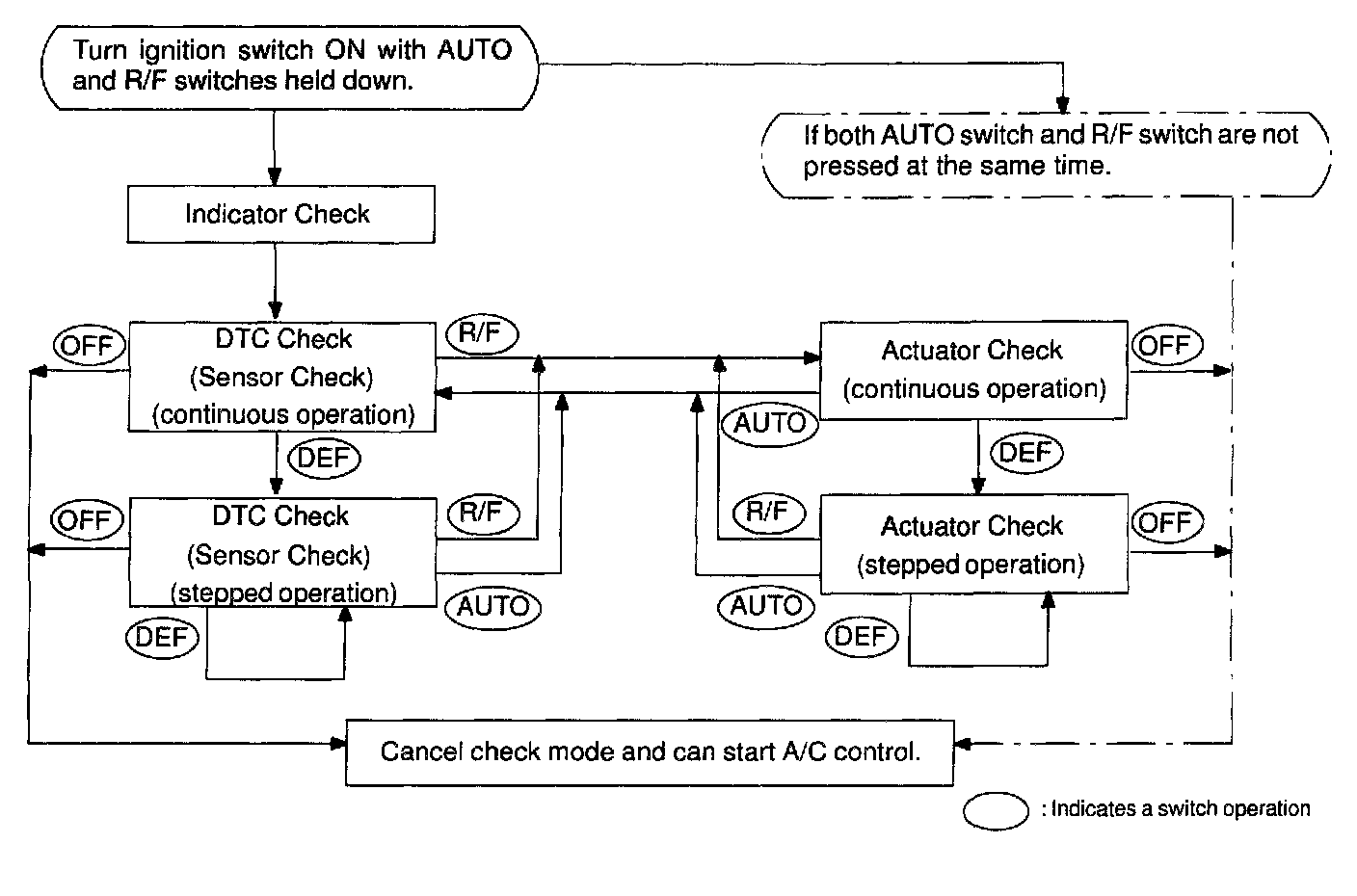

By operating each of the A/C control switches as shown in the diagram, it is possible to enter the diagnosis check mode.
