Water Valve Control Servomotor Circuit
Water Valve Control Servomotor CircuitCIRCUIT DESCRIPTION
This circuit turns the servomotor and changes each mode damper position by the signals from the A/C control assembly.

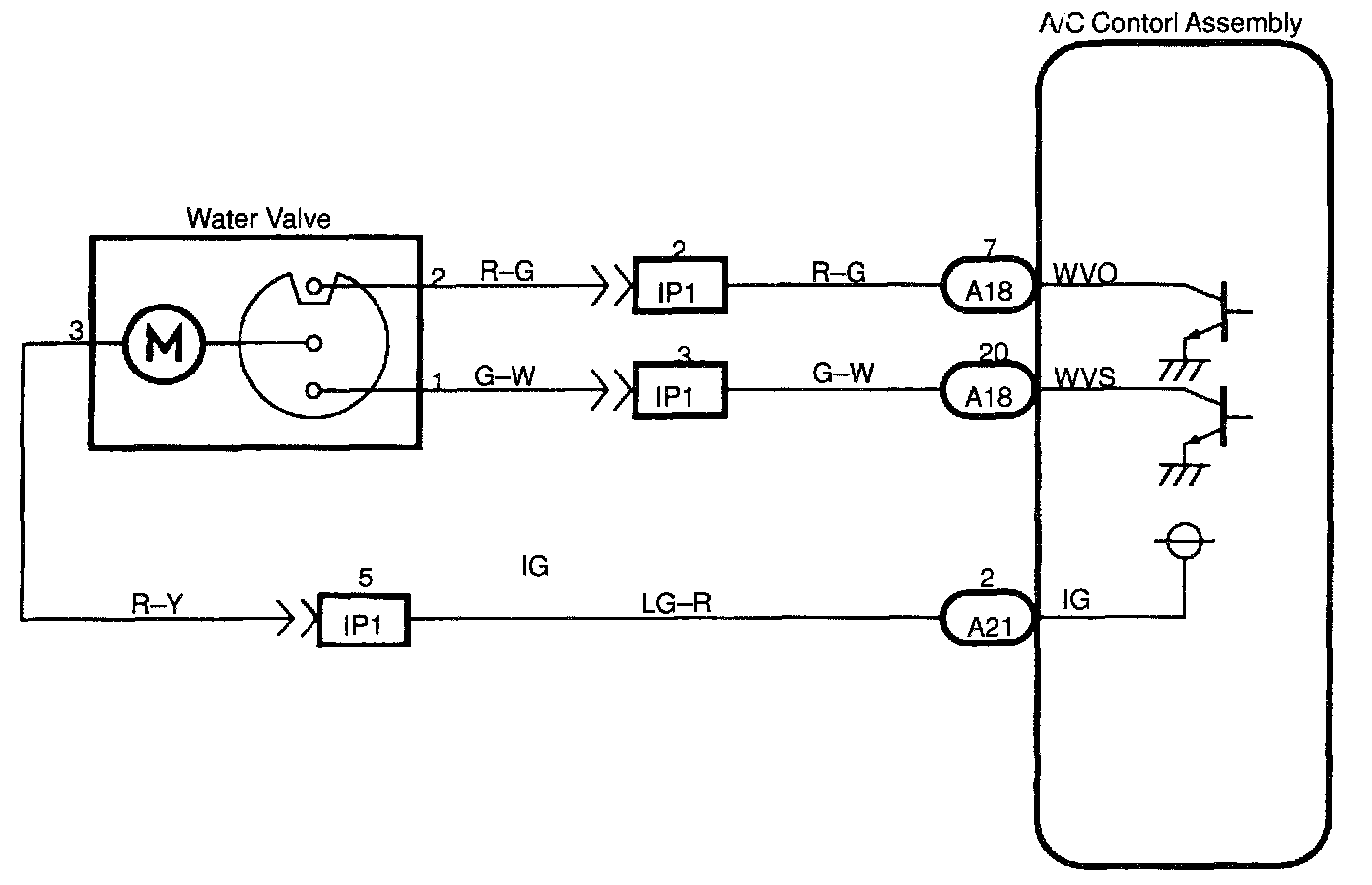

WIRING DIAGRAM
Step 1:
Step 2:
Step 3:

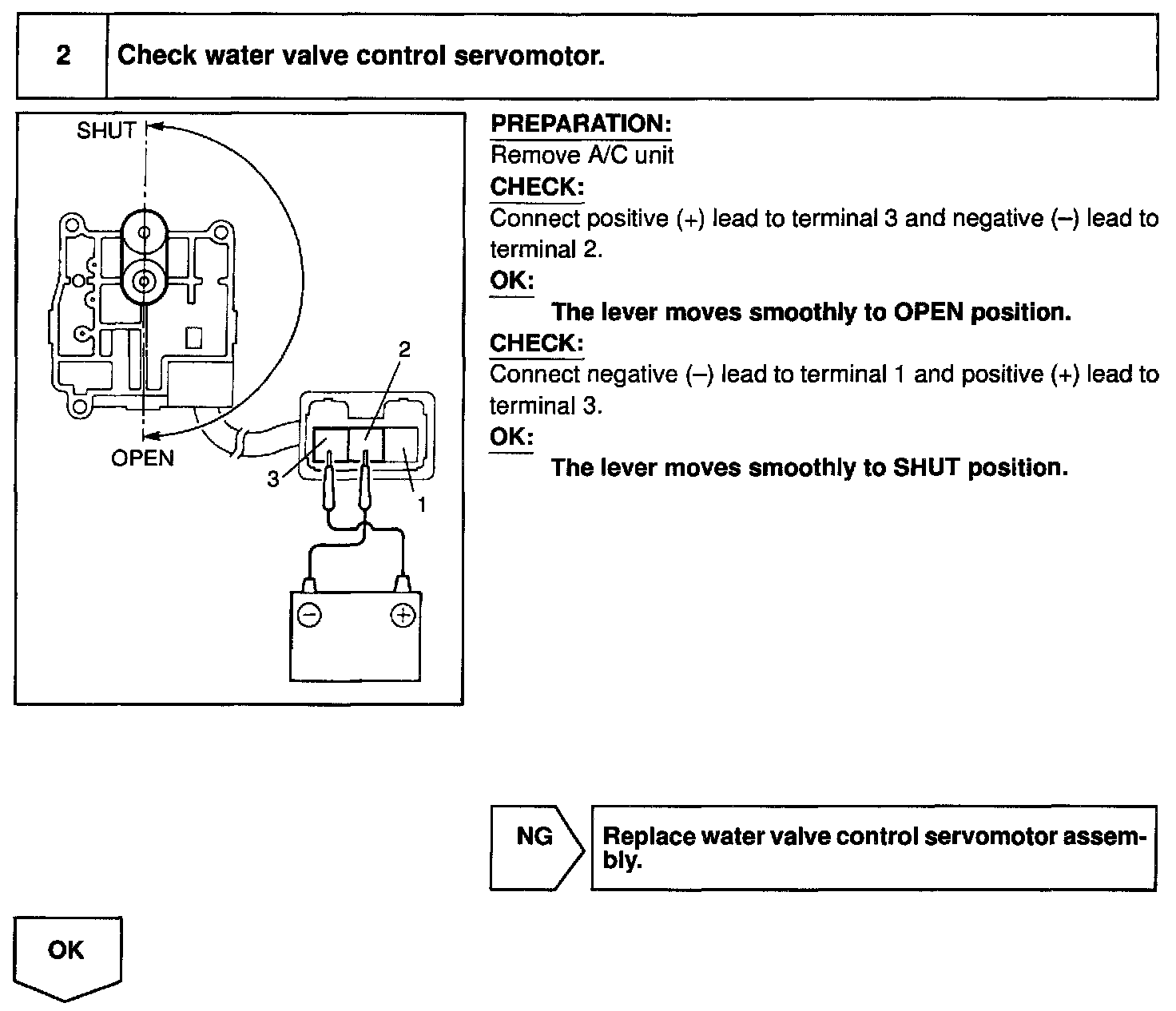

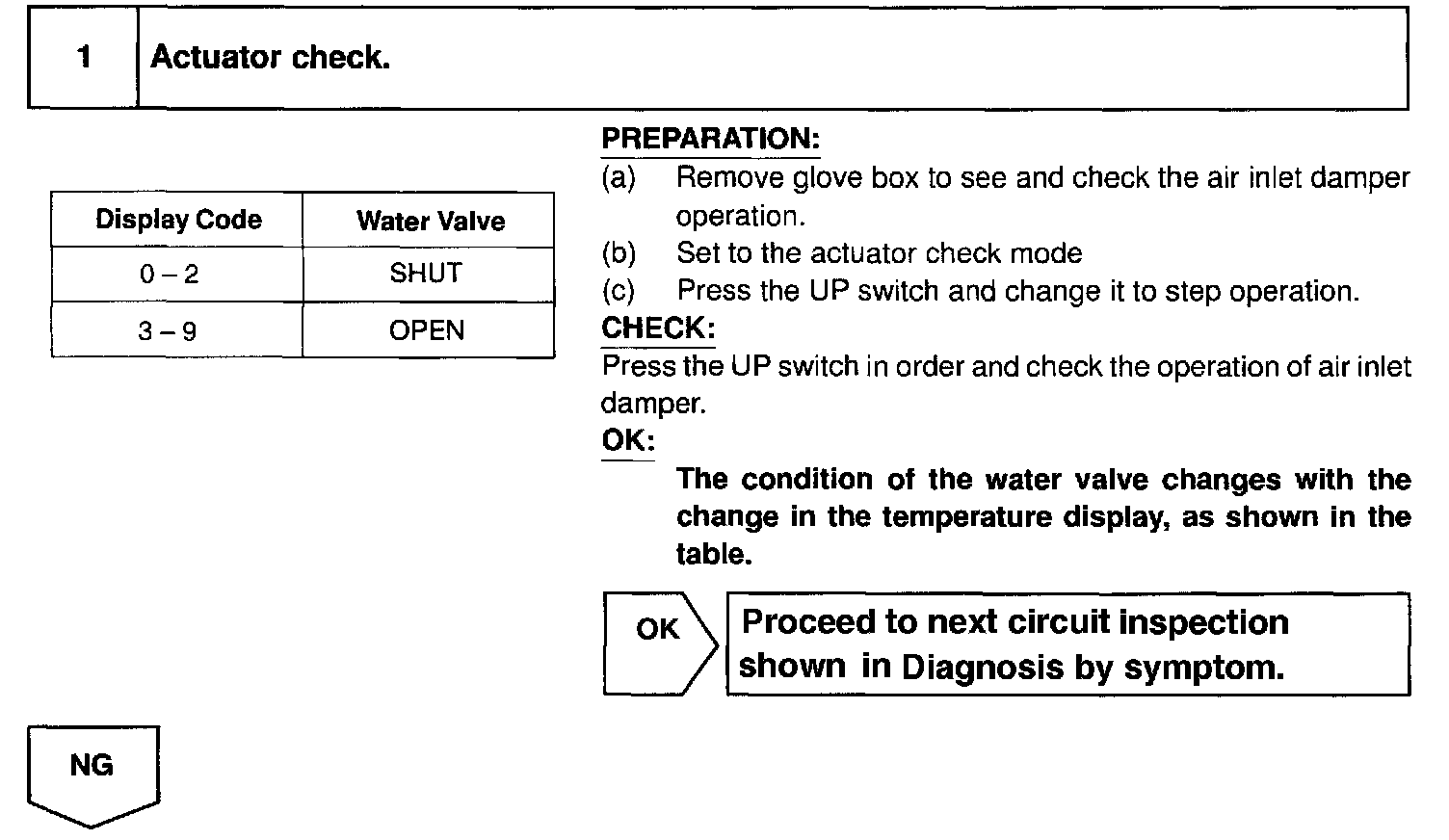

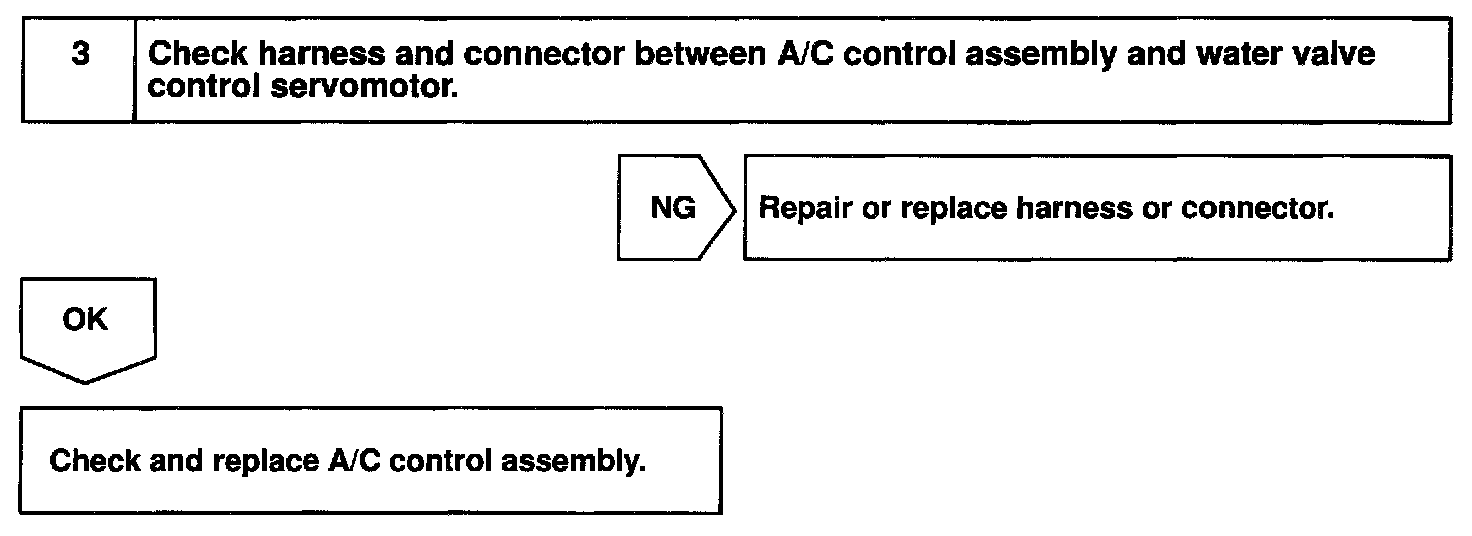

INSPECTION PROCEDURE
