Max Cool Damper Control Servomotor Circuit (Driver Side)

CIRCUIT DESCRIPTION
The max. cool servomotor is controlled by the A/C control assembly and moves the max. cool damper to the desired position.




WIRING DIAGRAM

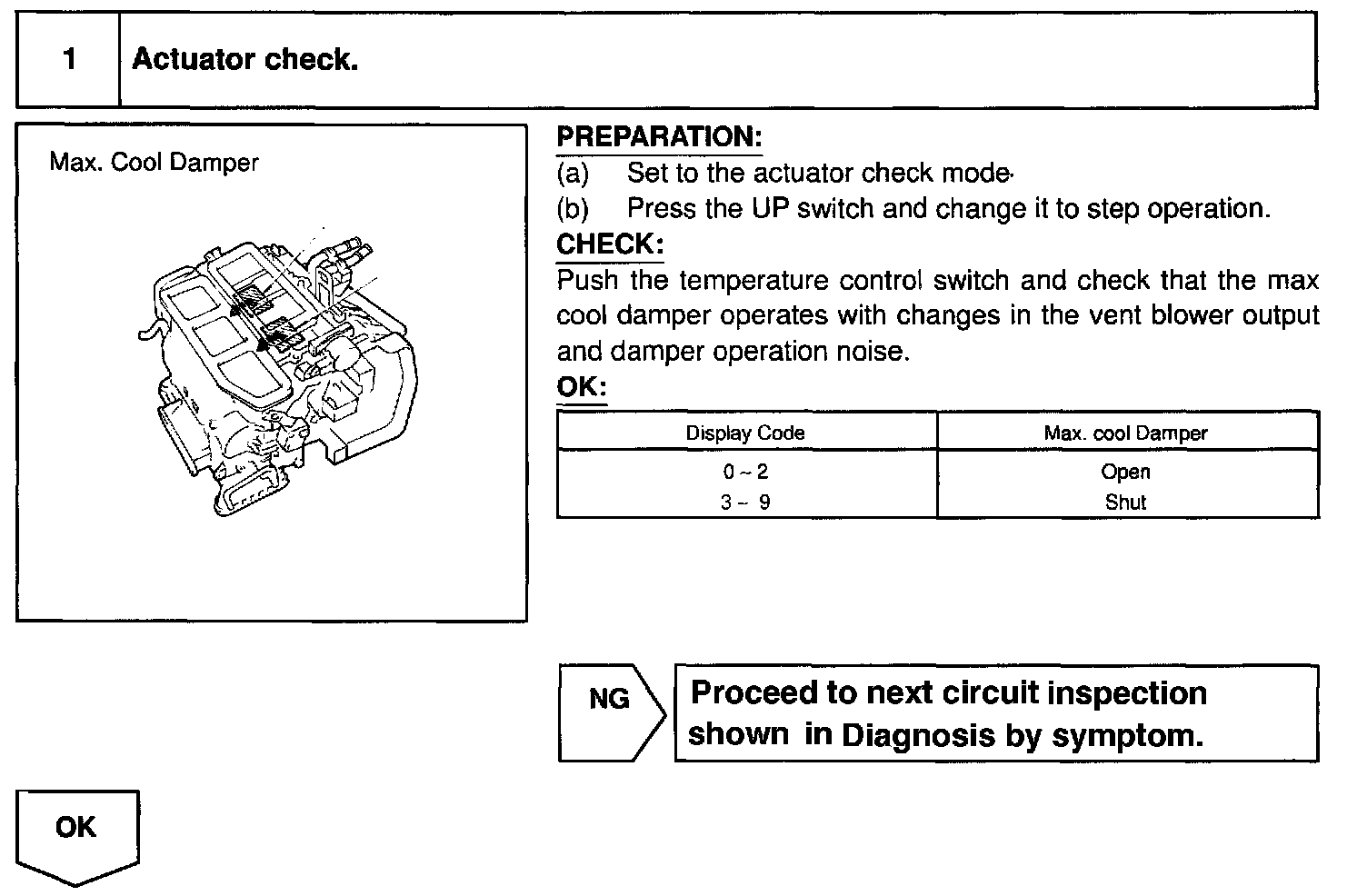

Step 1:

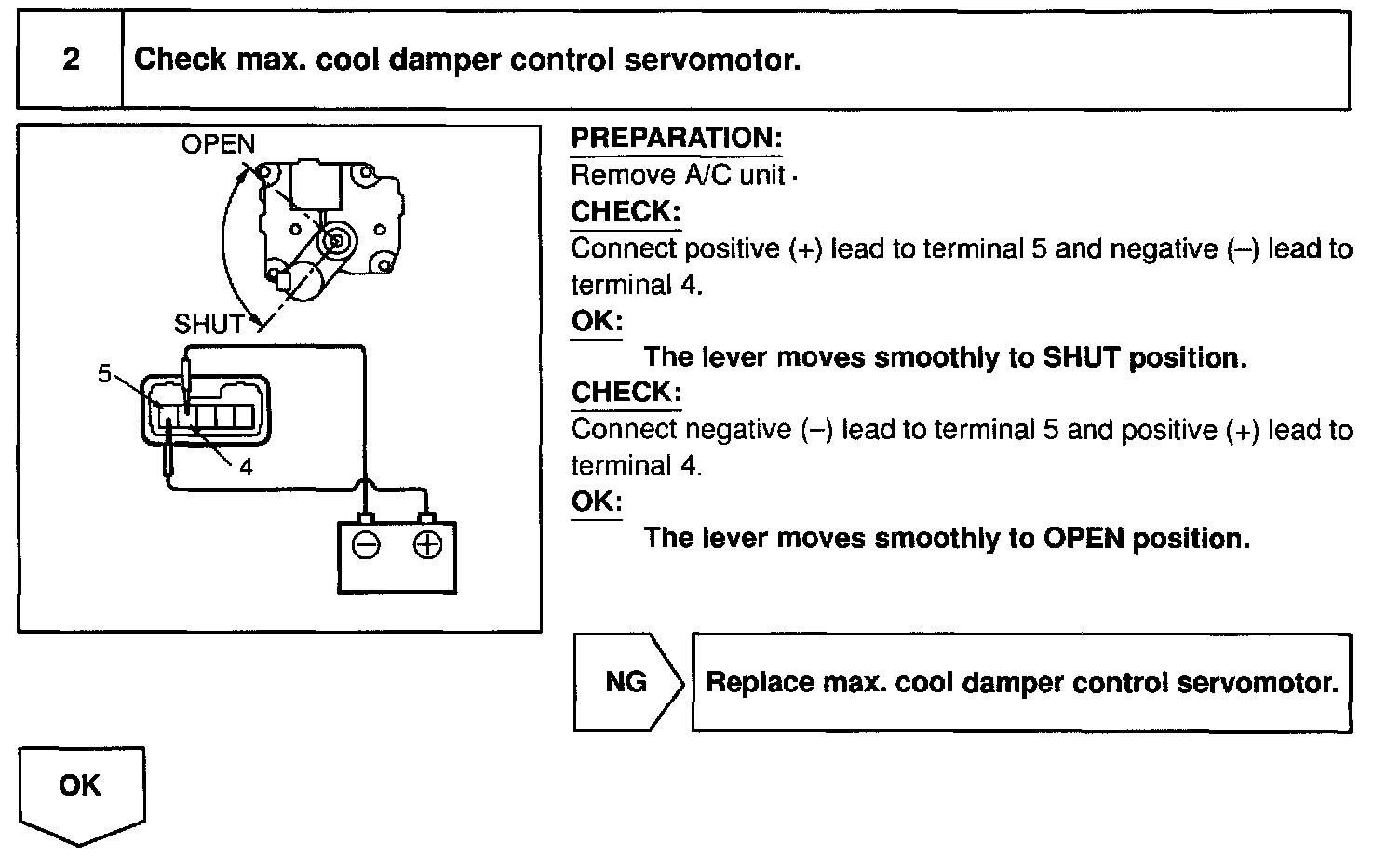

Step 2:

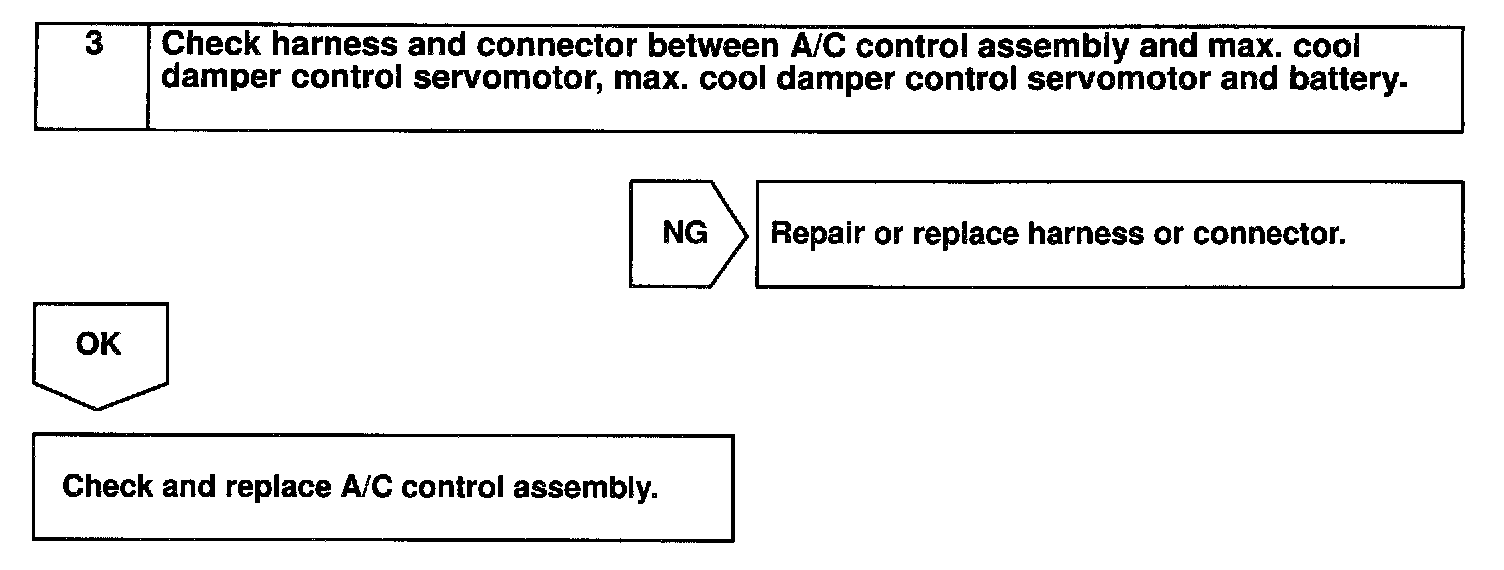

Step 3:

INSPECTION PROCEDURE
