Without Electrical Multi Vision

REMOVAL

1. REMOVE THESE PARTS
a. Cluster finish panel
b. No. 2 register




2. REMOVE A/C CONTROL ASSEMBLY

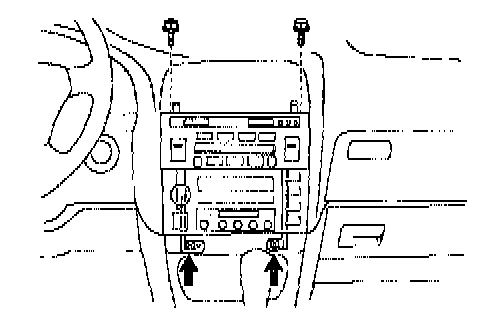

a. Remove the 4 bolts and pull out A/C control assembly, then disconnect the connectors.

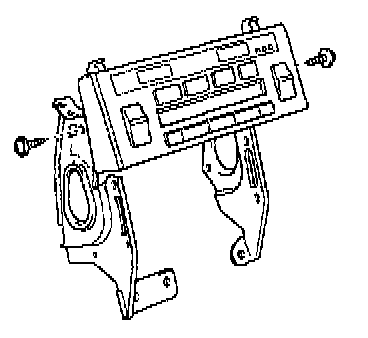

b. Remove the 2 screws and A/C control assembly from the radio.

INSTALLATION

Installation is in the reverse order of removal.
