Lexus
>>
1999
>>
LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Water Pump
Water Pump

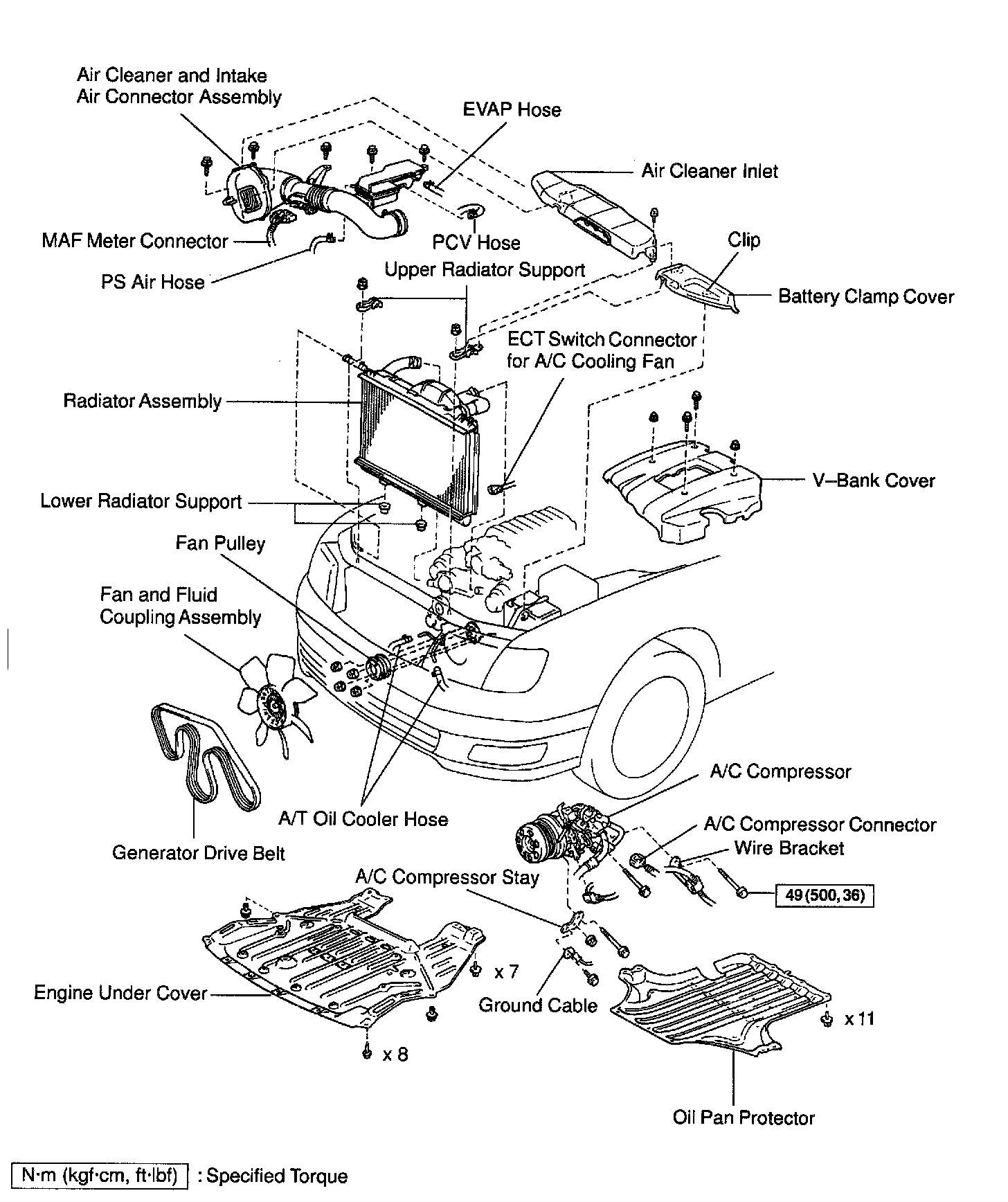

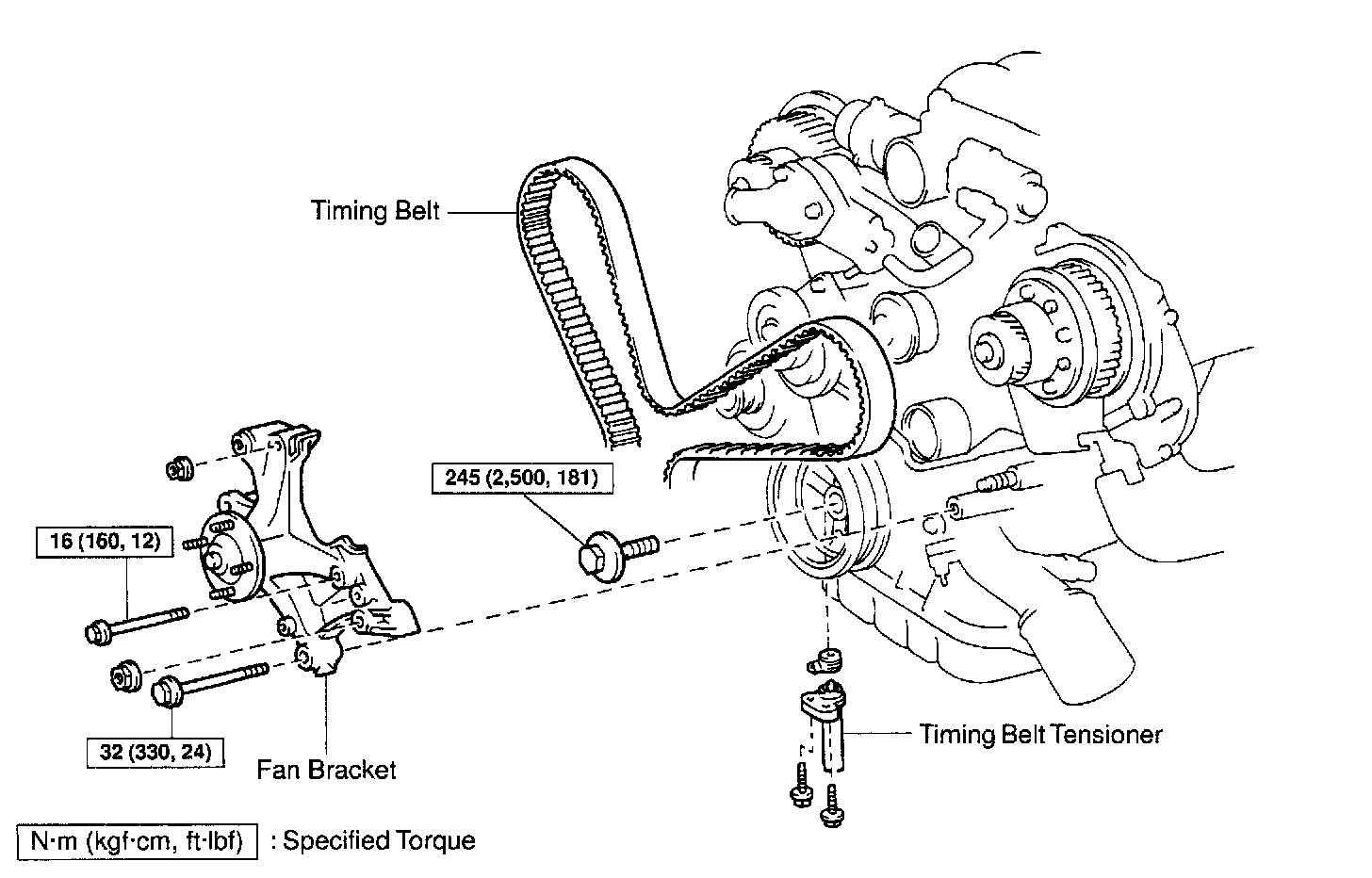

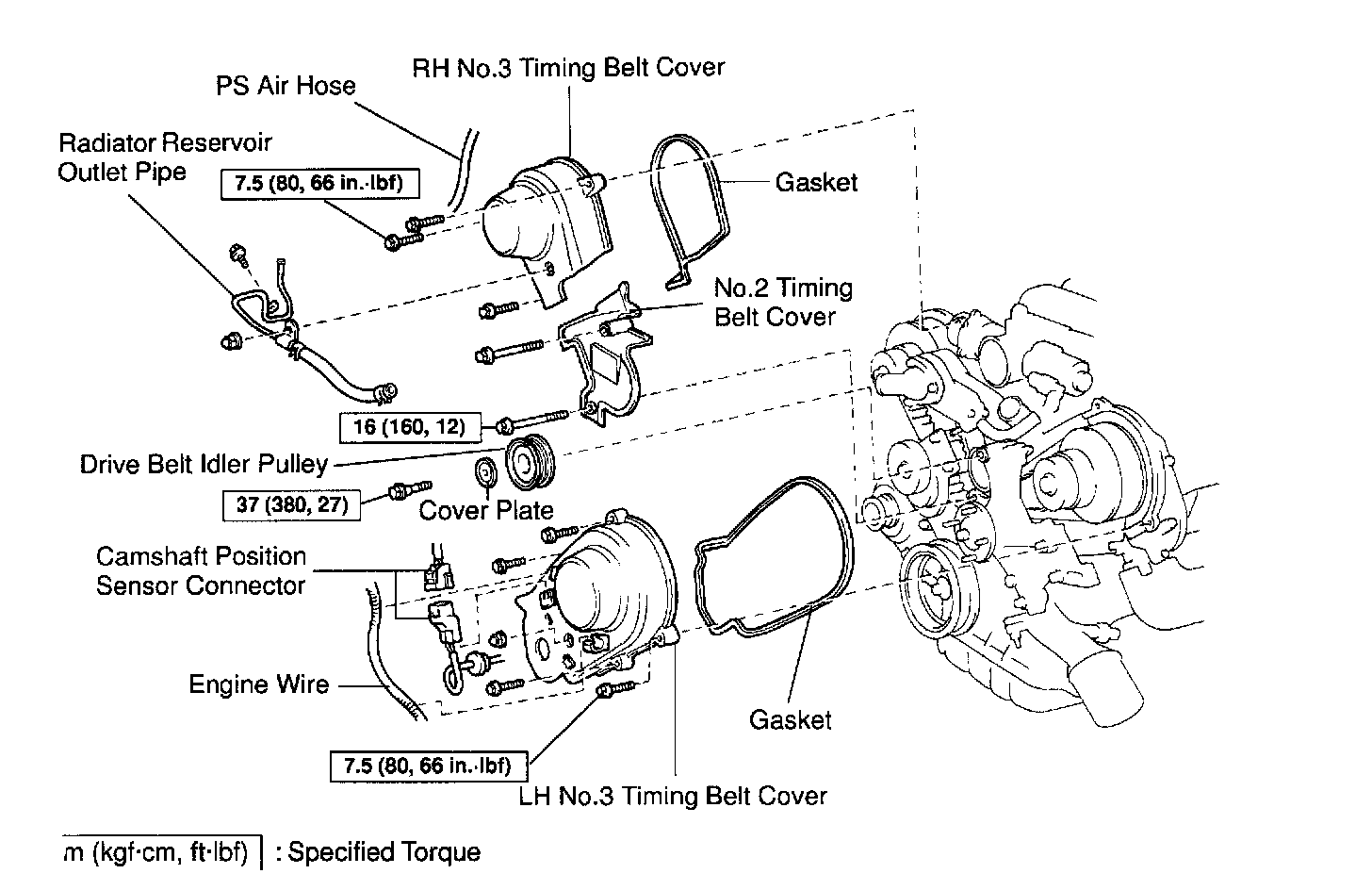

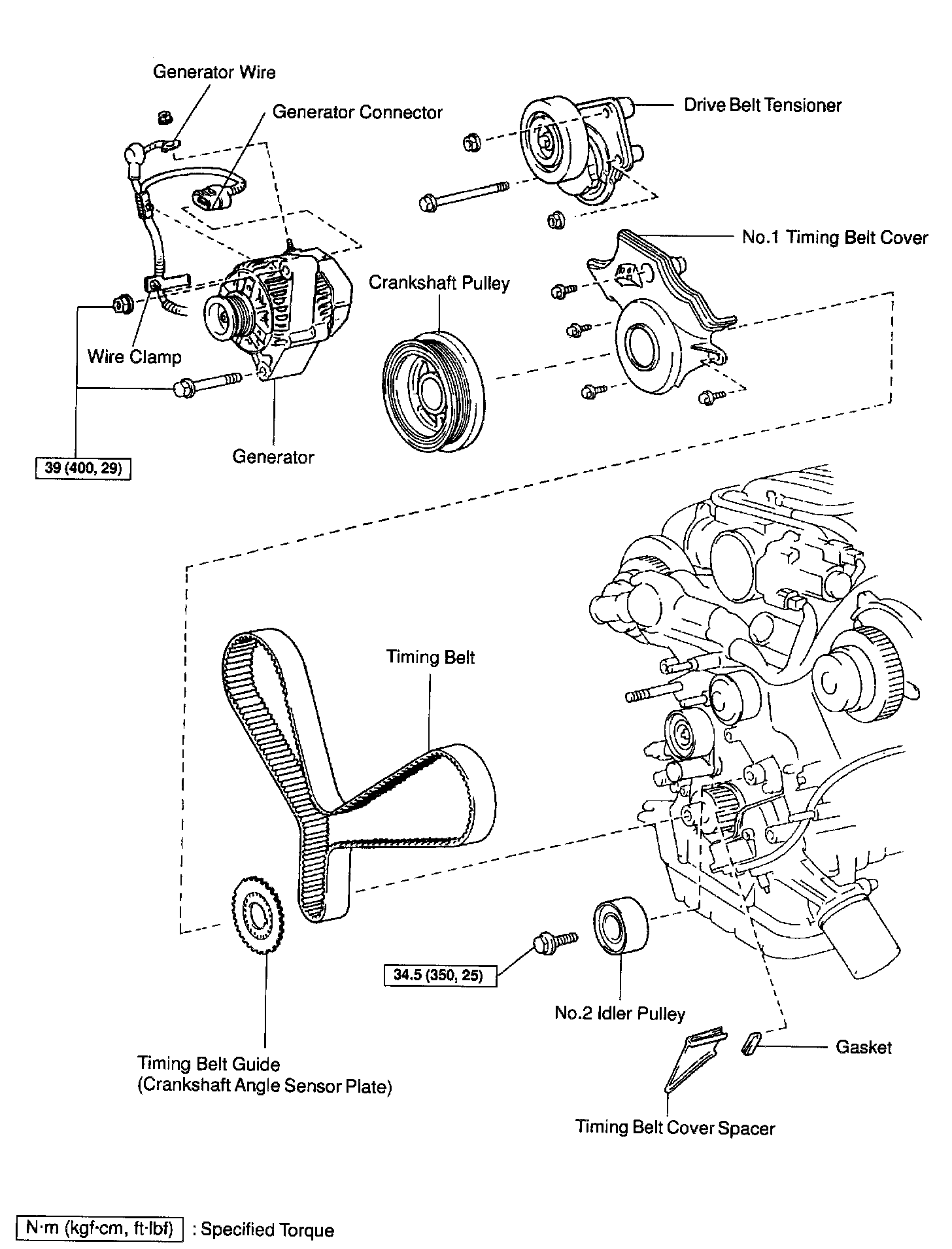

Water Pump, Cooling and Accessory Drive Views
