Throttle Valve Solenoid, A/T

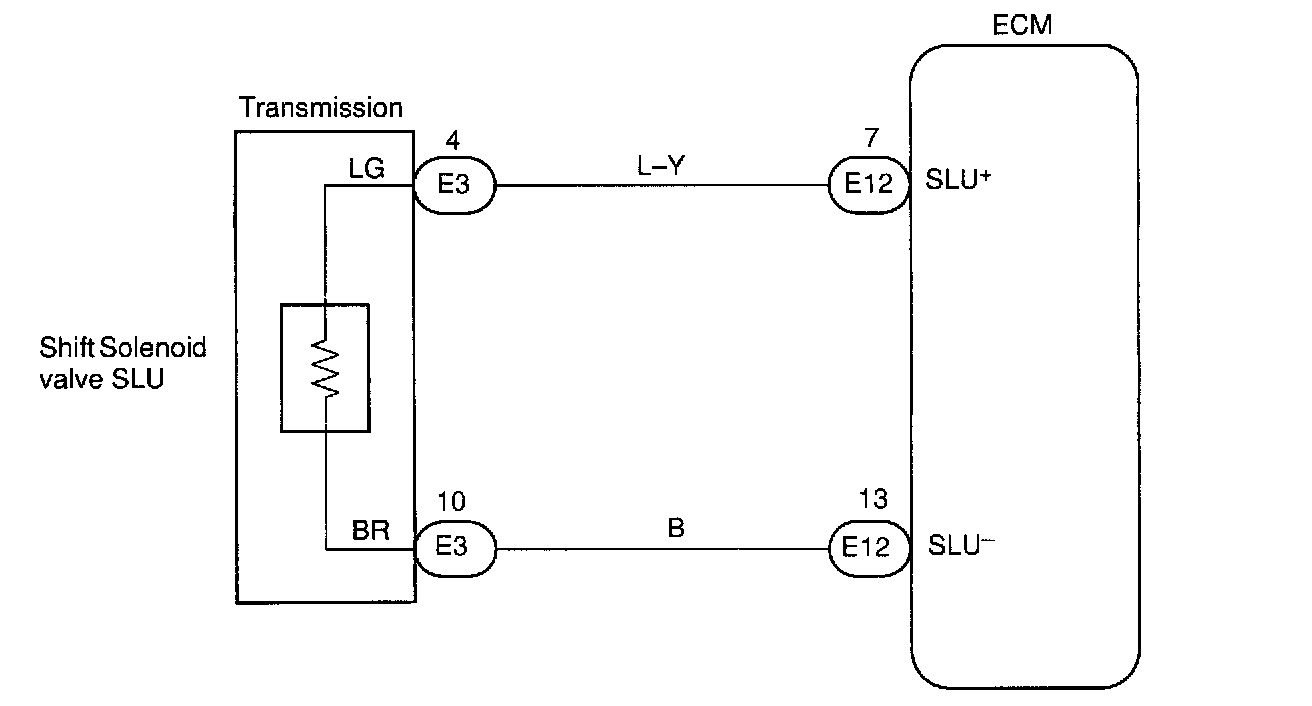

Solenoid SLU (Lock Up)

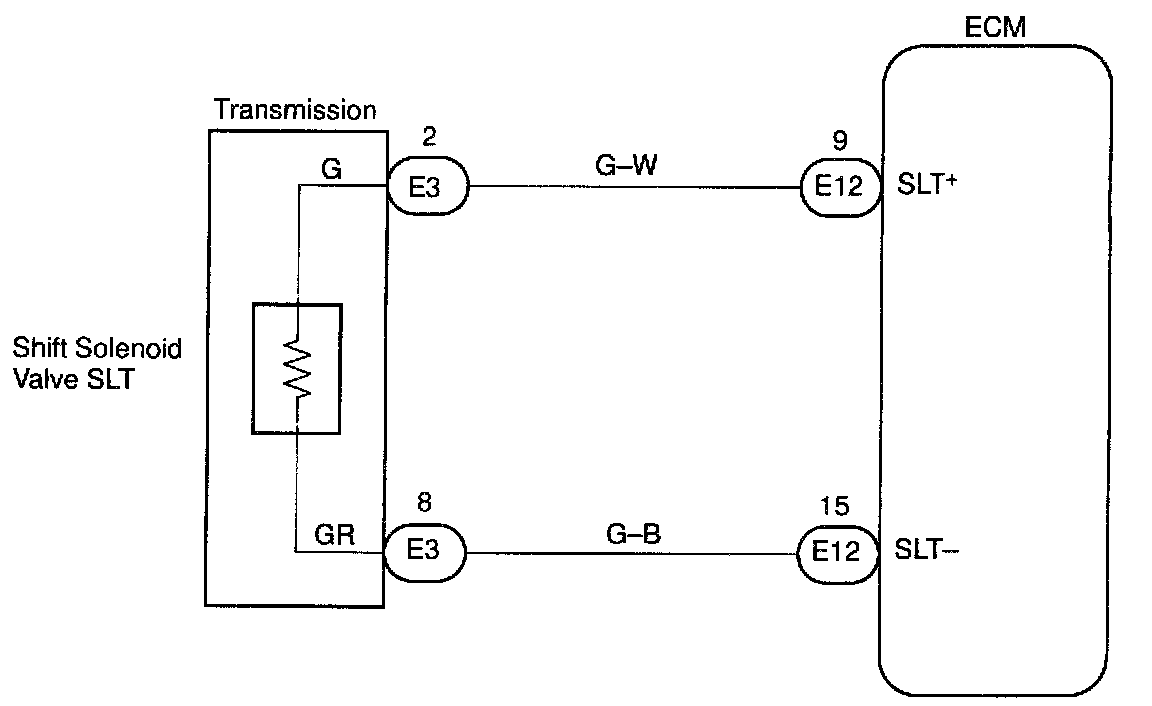

Solenoid SLT (Line Pressure)

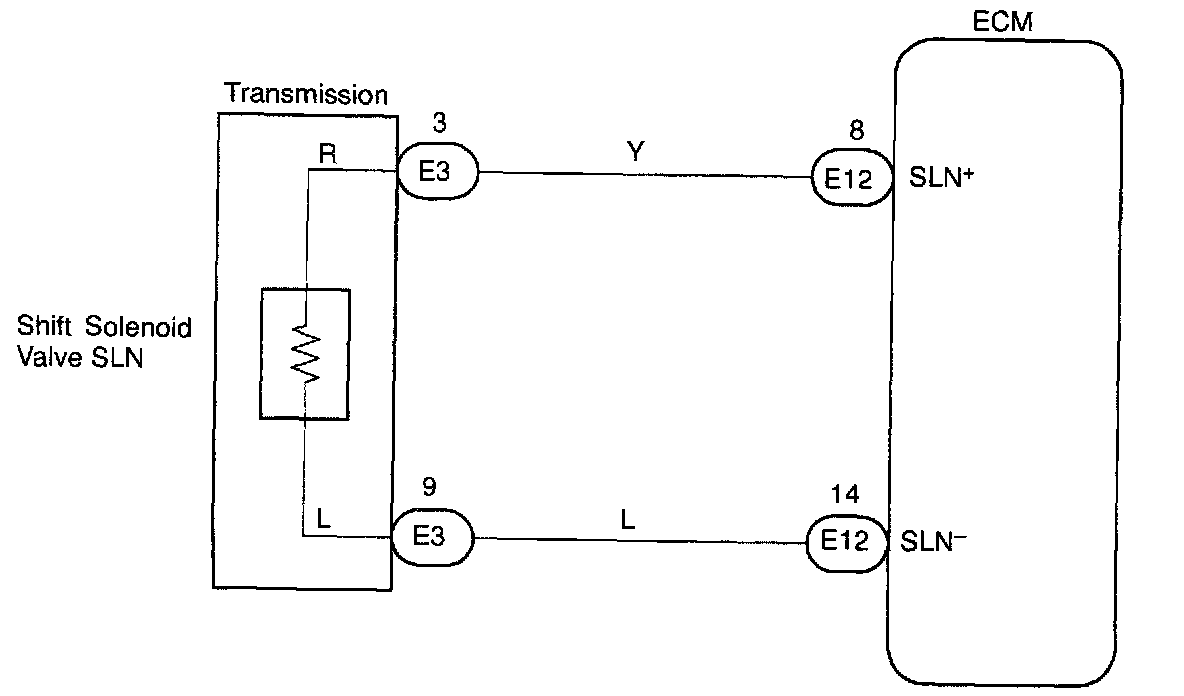

Solenoid SLN (Accumulator Pressure)
