Home >> Lexus >> 1999 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module

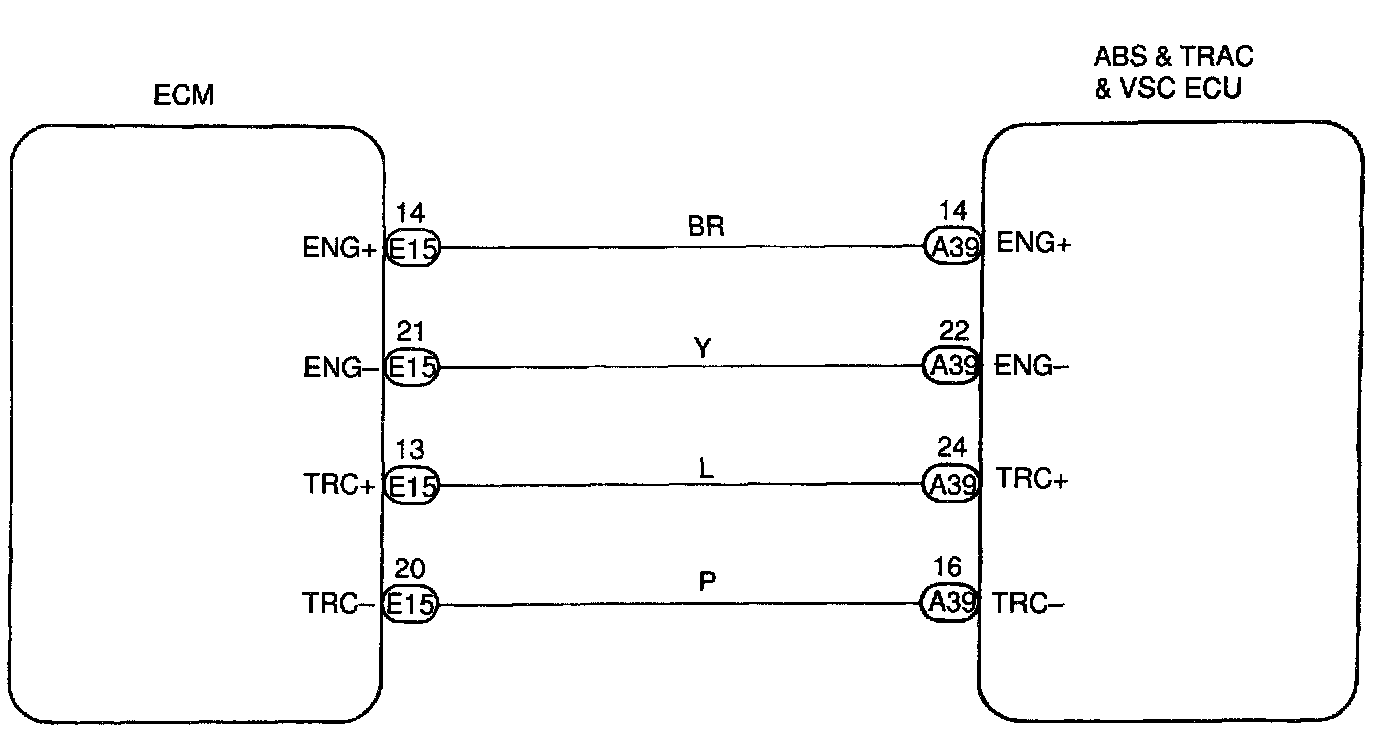

Electronic Brake Control Module




Part 1 of 3




Part 2 of 3




Part 3 of 3
