Component Inspection

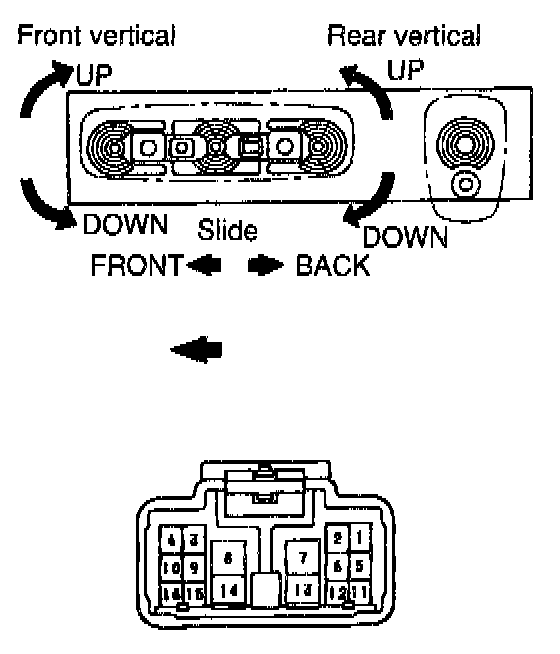

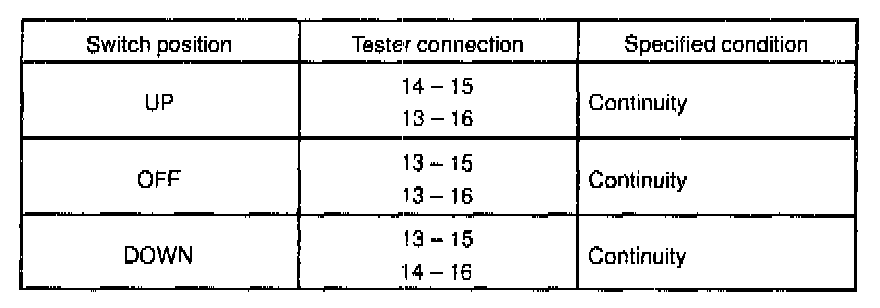

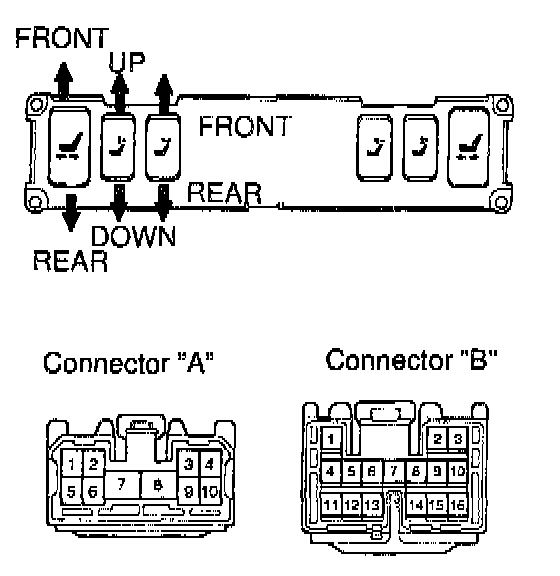

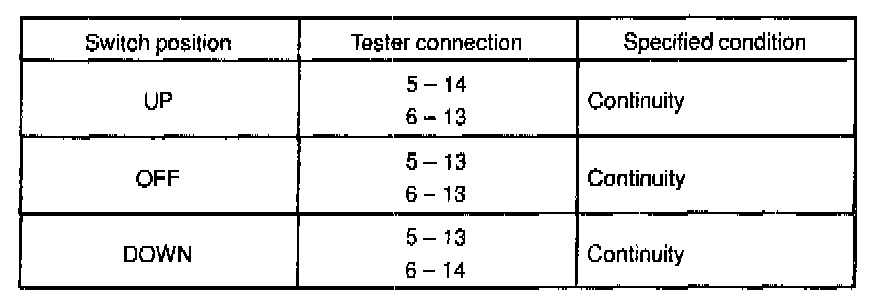

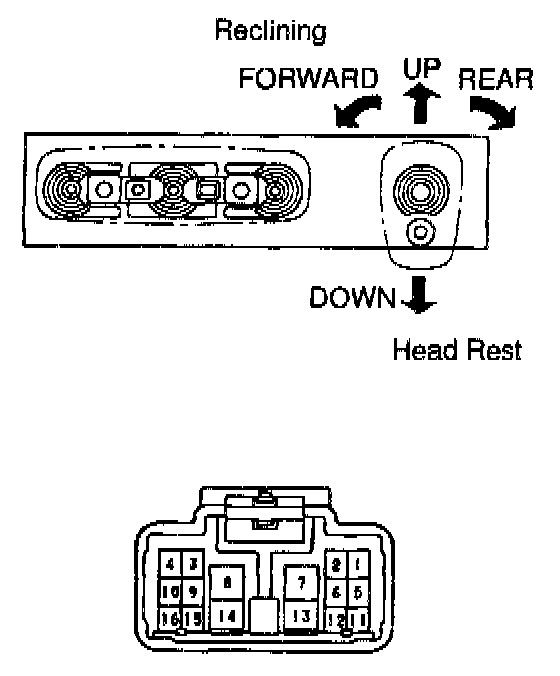

INSPECT FRONT POWER SEAT SWITCH CONTINUITY

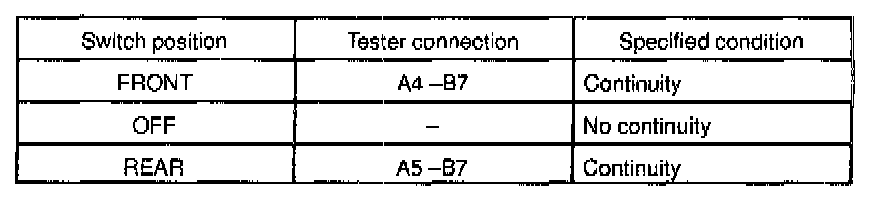

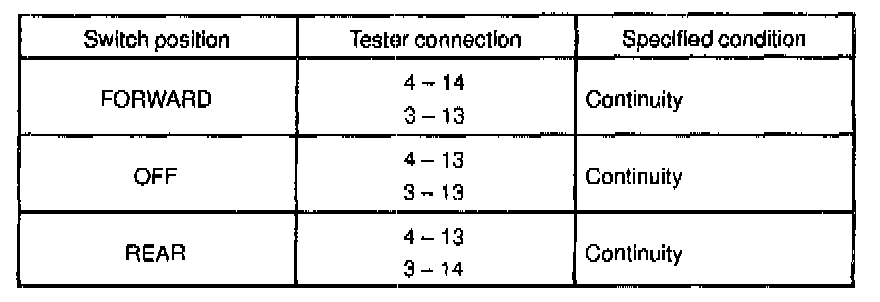

SLIDE SWITCH

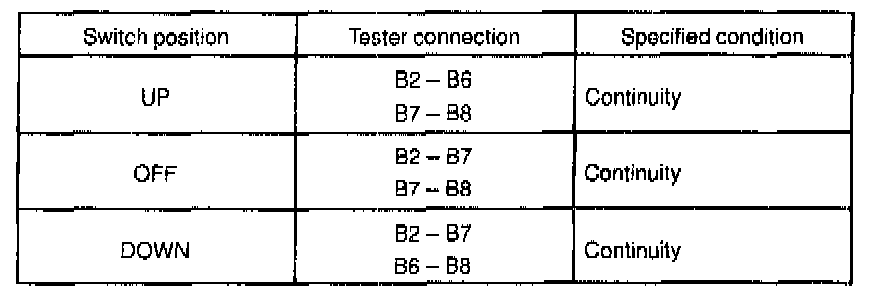

FRONT VERTICAL SWITCH







REAR VERTICAL SWITCH







RECLINING SWITCH







HEADREST SWITCH

If continuity is not as specified, replace the switch.

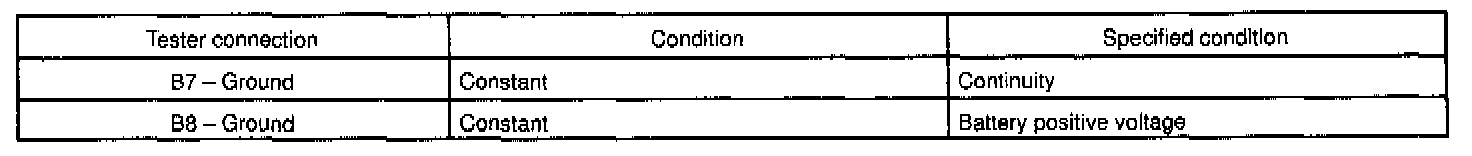

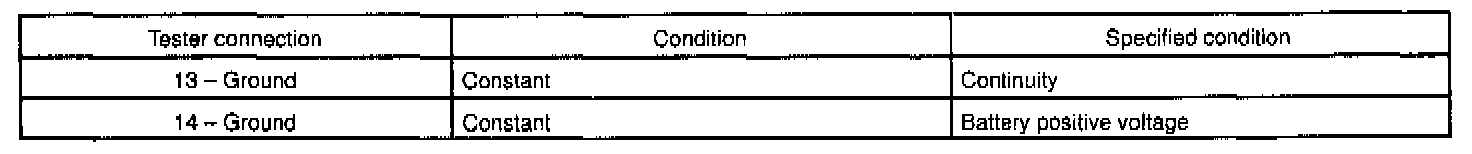

INSPECT POWER SEAT SWITCH CIRCUIT
a. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.

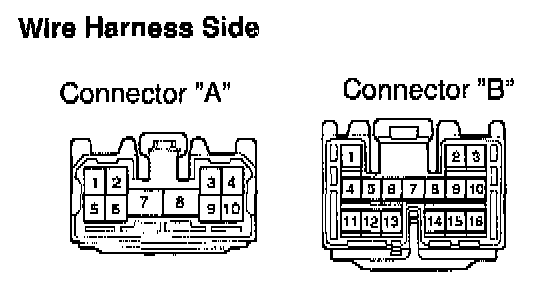

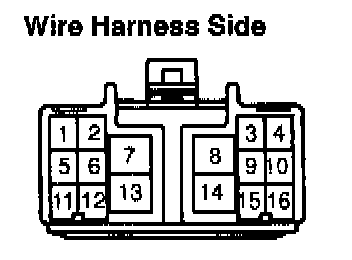

b. Inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.

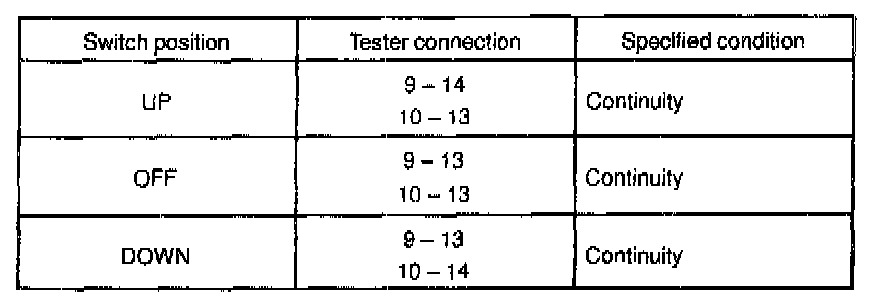

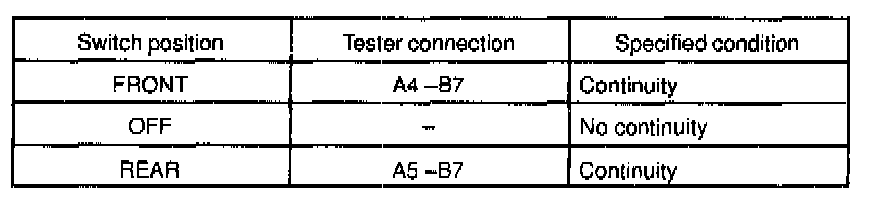

INSPECT LUMBAR SUPPORT SWITCH CONTINUITY







If continuity is not as specified, replace the switch.

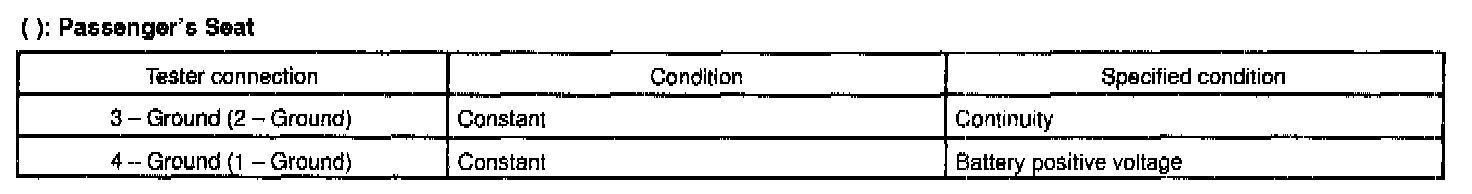

INSPECT LUMBAR SUPPORT SWITCH CIRCUIT
a. Disconnect the switch connector and connect the seal wire harness to the floor wire harness.




b. Inspect the connector on the wire harness side, as shown.




If circuit is not as specified, inspect the circuits connected to other parts.

TAIWAN MODELS ONLY:

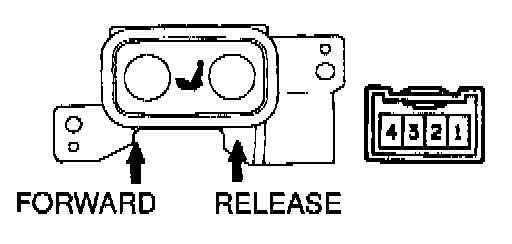

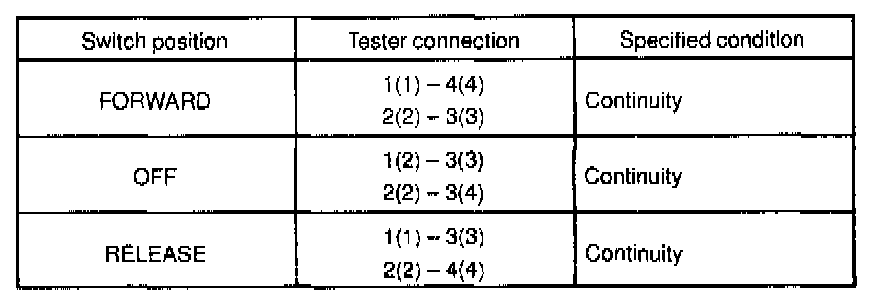

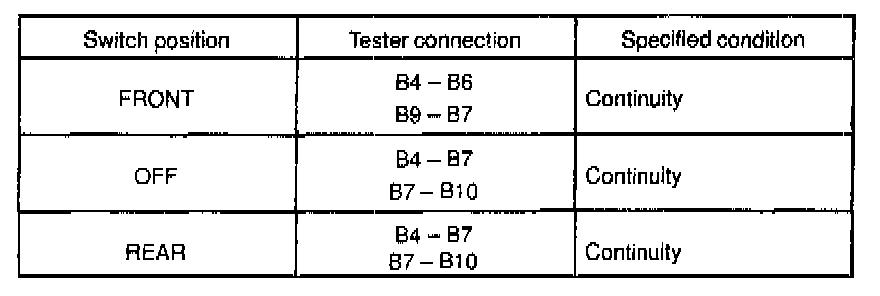

INSPECT REAR POWER SEAT SWITCH CONTINUITY

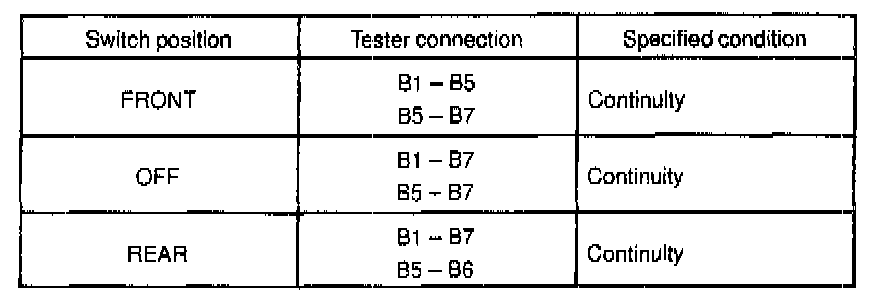

Slide Switch LH







Slide Switch RH

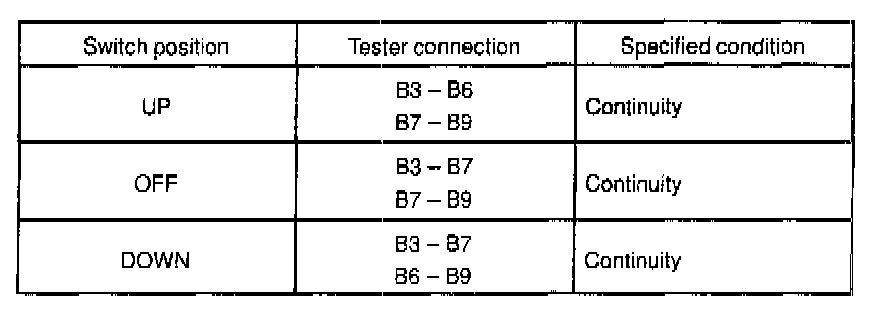

Headrest Switch LH (for vertical)







Headrest Switch RH (for vertical)







Headrest Switch LH (for turning)







Headrest Switch RH (for turning)

INSPECT REAR POWER SEAT SWITCH CIRCUIT
a. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.







b. Inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.
