Power Door Lock Control System

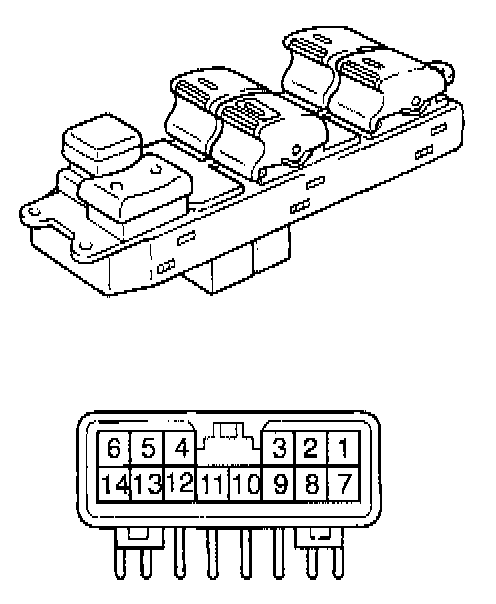

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY

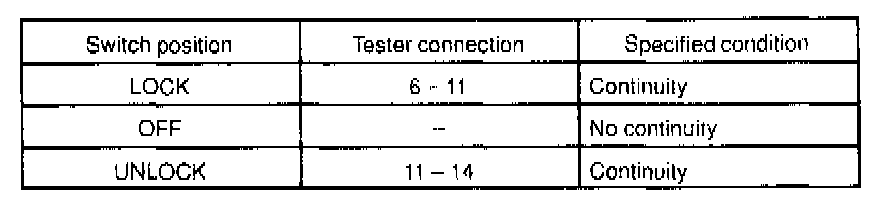

Master Switch: Driver's Door Lock Manual Switch







If continuity is not as specified, replace the switch.
If continuity is as specified, inspect the switch circuit.

INSPECT POWER WINDOW MASTER SWITCH CIRCUIT

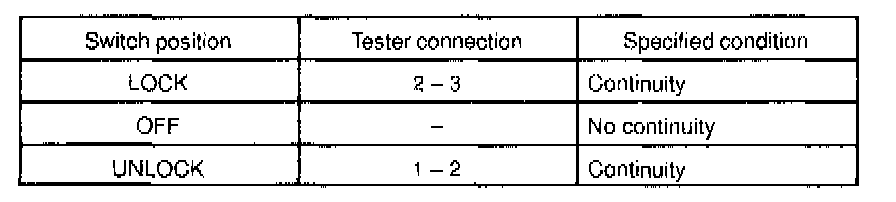

INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY







If continuity is not as specified, replace the switch
If continuity is as specified, inspect the switch circuit.

INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CIRCUIT

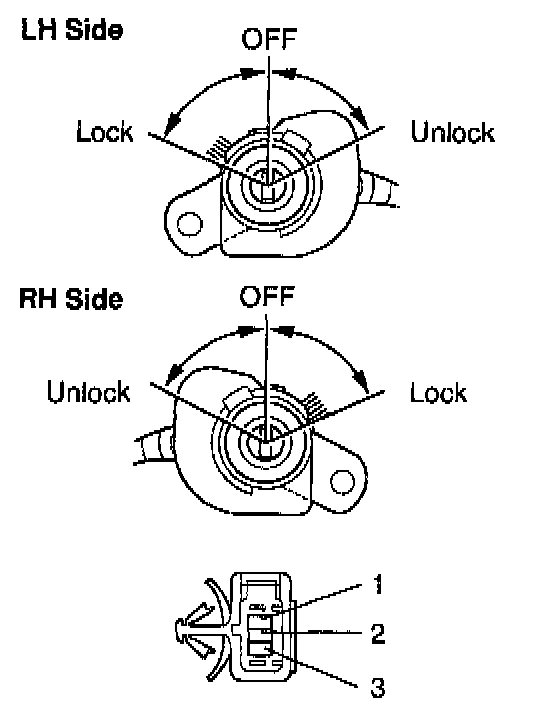

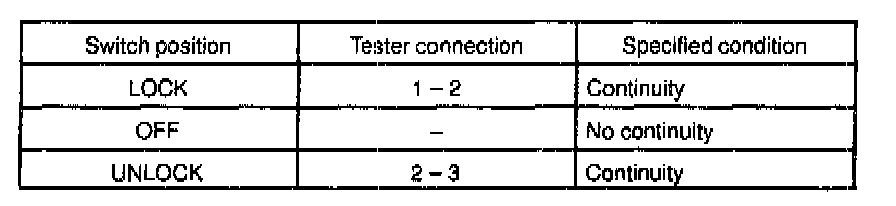

INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY







If continuity is not as specified, replace the switch.

HINT: Door key lock and unlock switch is built into the front door lock assembly.
If continuity is as specified, inspect the switch circuit.

INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CIRCUIT

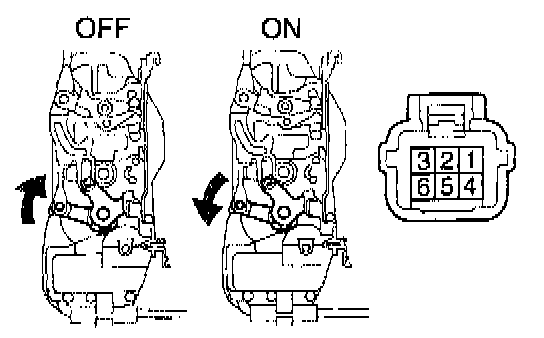

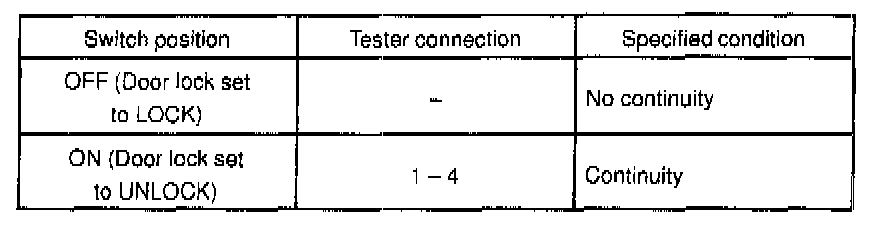

INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY







If continuity is not as specified, replace the door lock assembly.

HINT: Door unlock detection switch is built into the door lock assembly.
If continuity is as specified, inspect the door lock assembly circuit.
