ECU Power Source Circuit

CIRCUIT INSPECTION

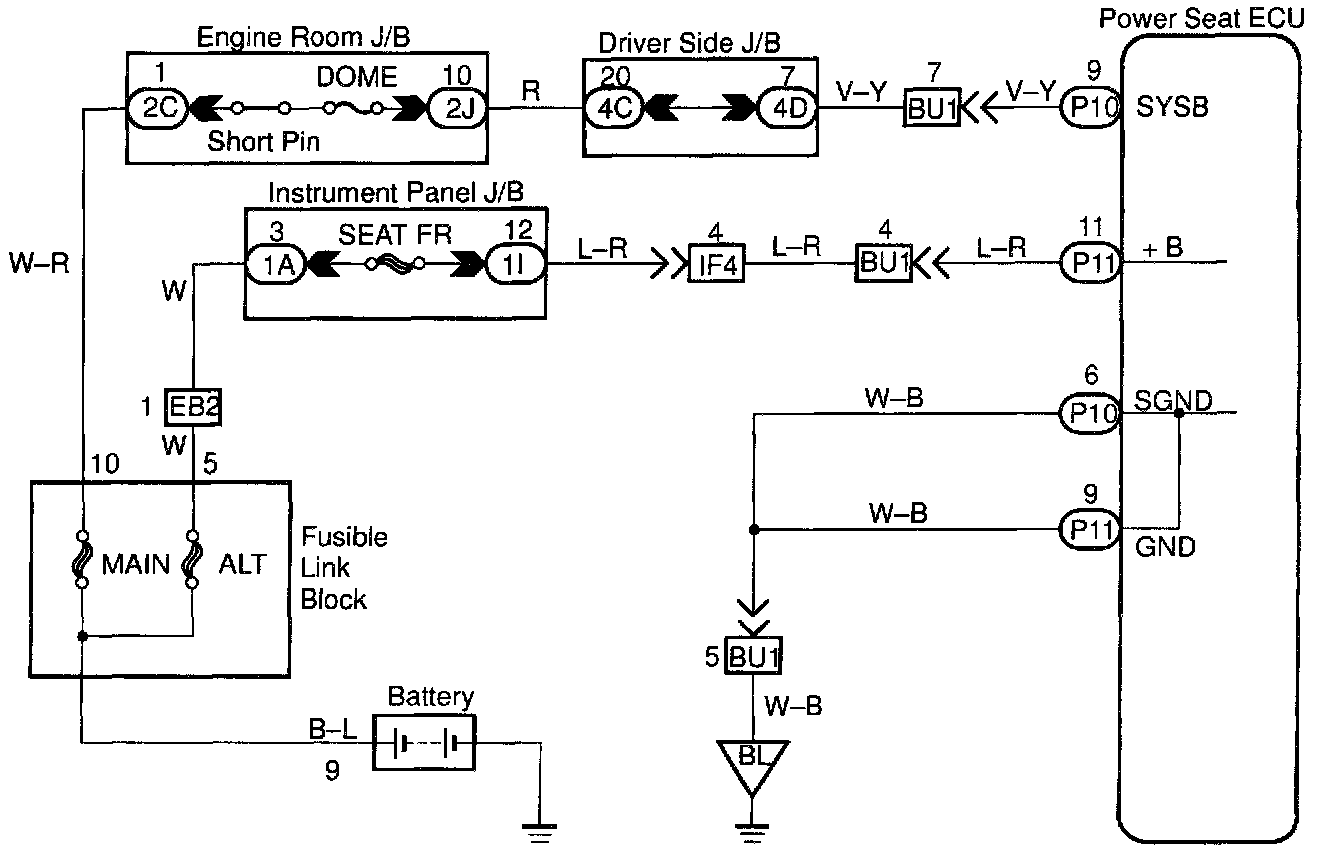

WIRING DIAGRAM

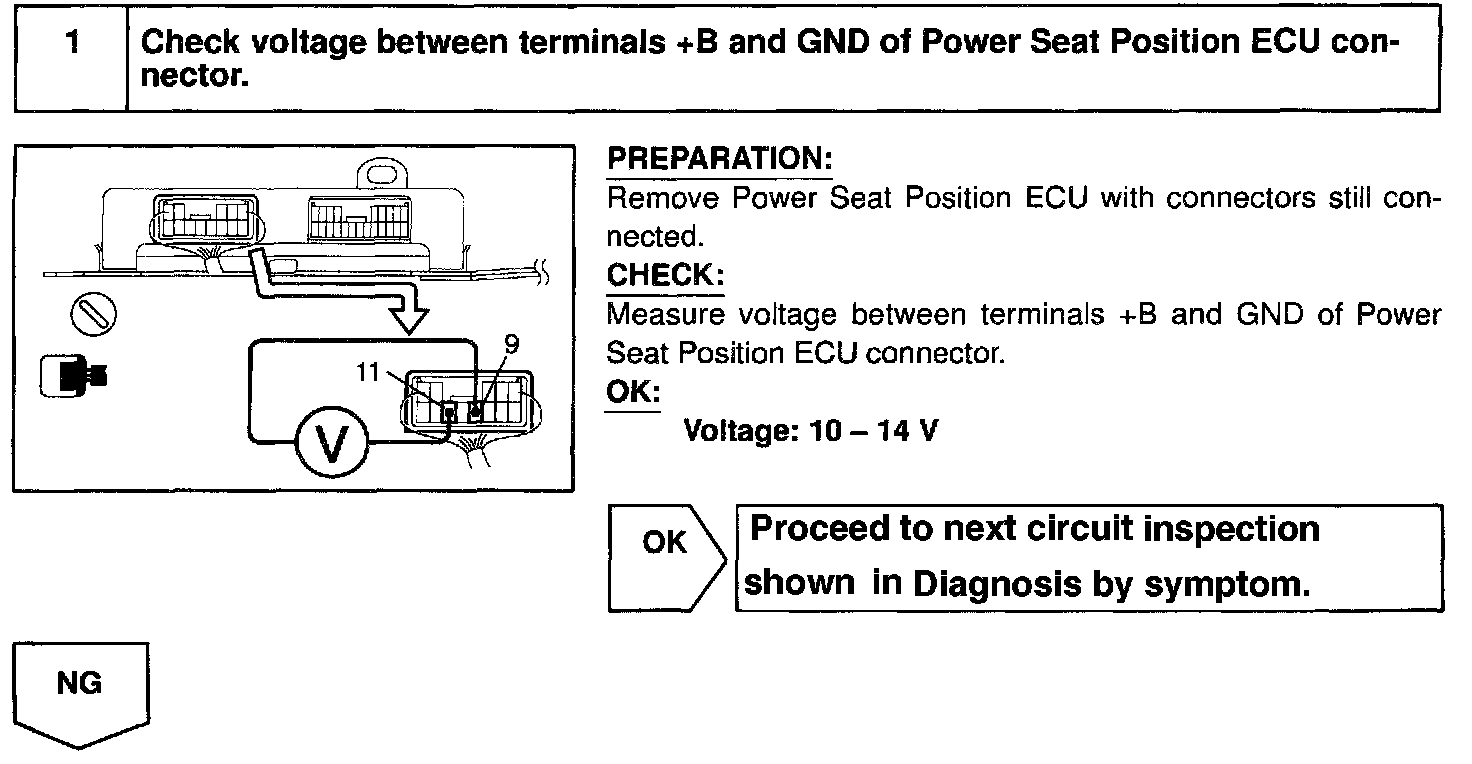

Step 1:

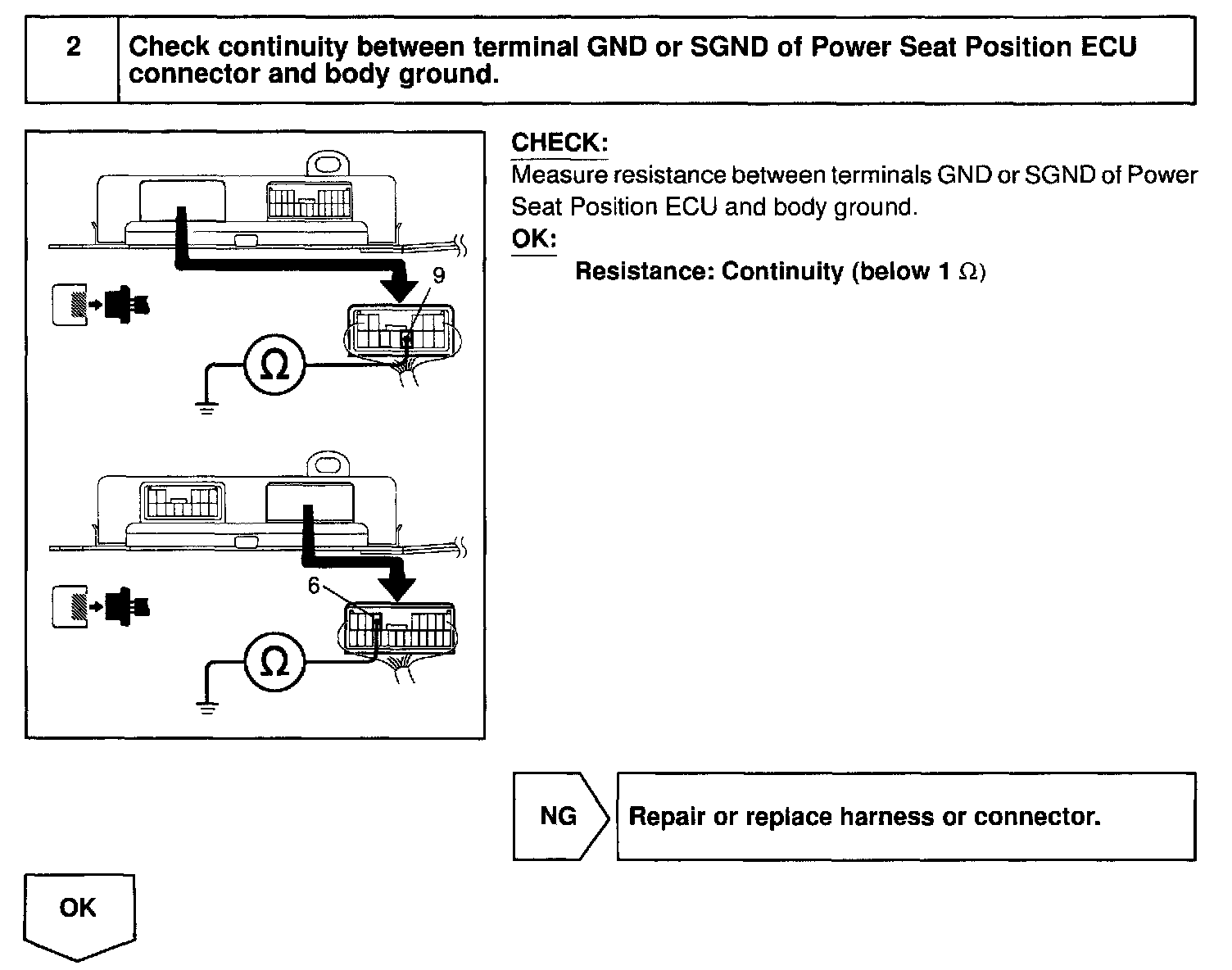

Step 1:

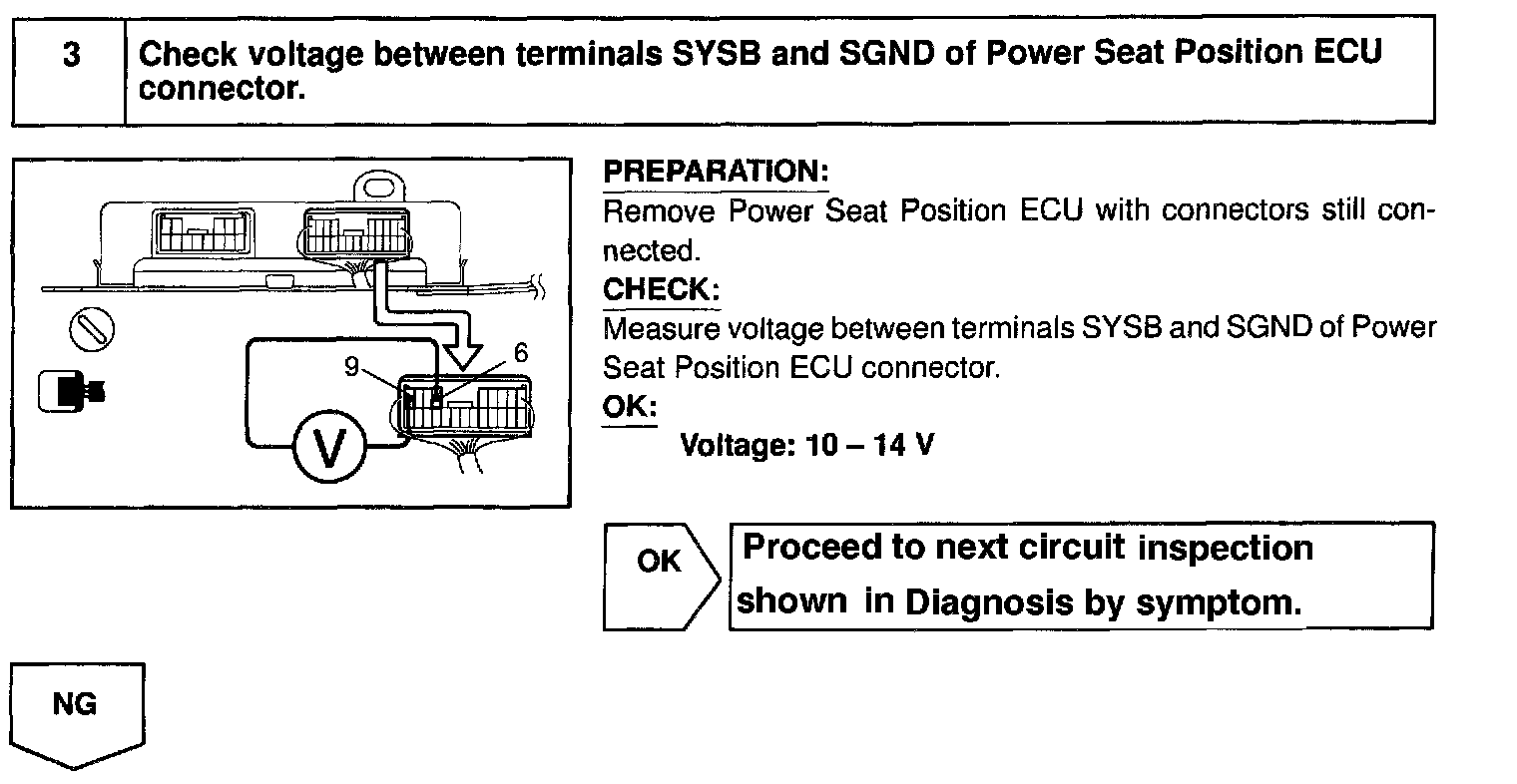

Step 3:

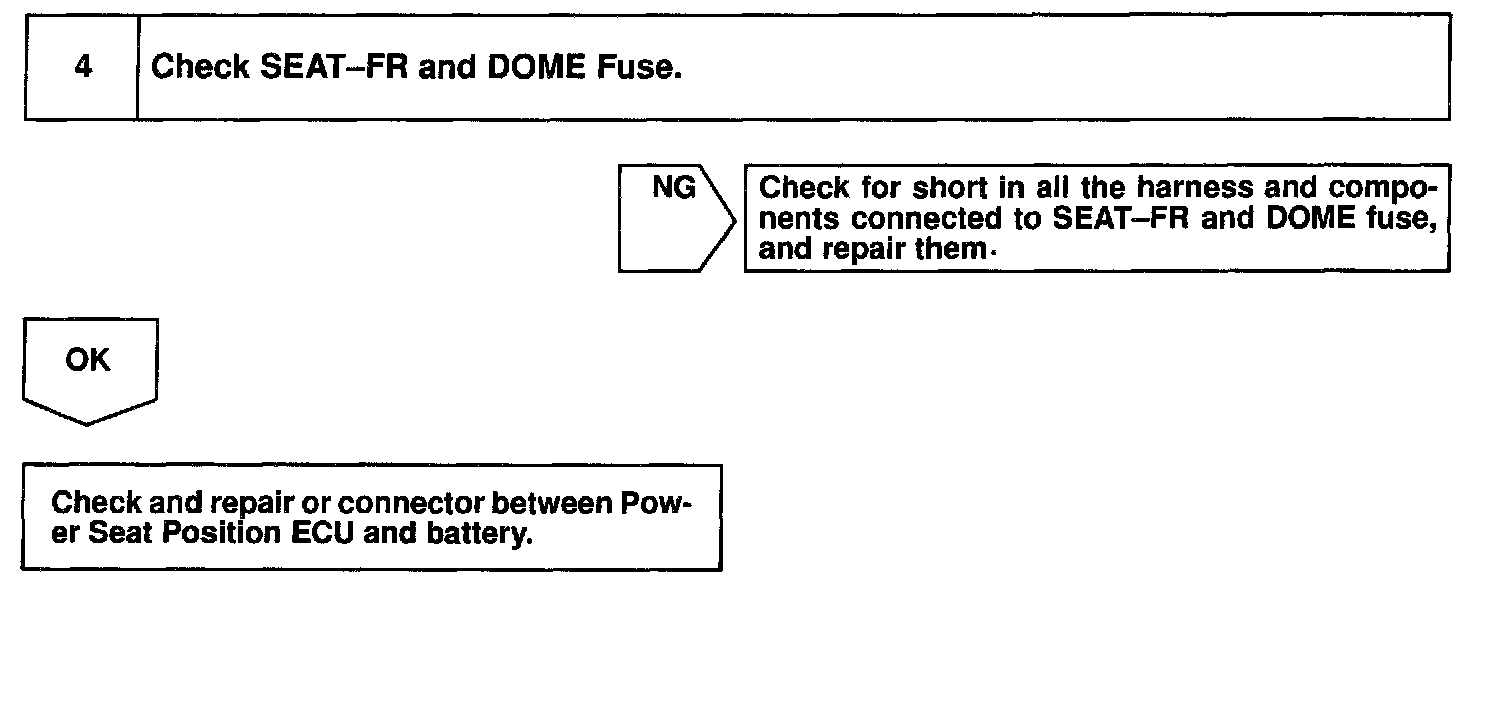

Step 4:

INSPECTION PROCEDURE
