Component Tests and General Diagnostics

INSPECT SEAT HEATER CONTINUITY

Seat Cushion:

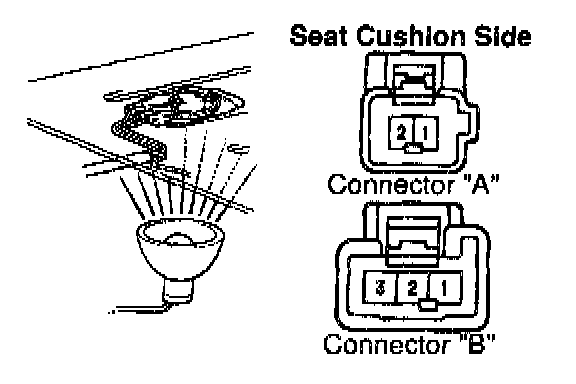

a. Heat the thermostat with a light.

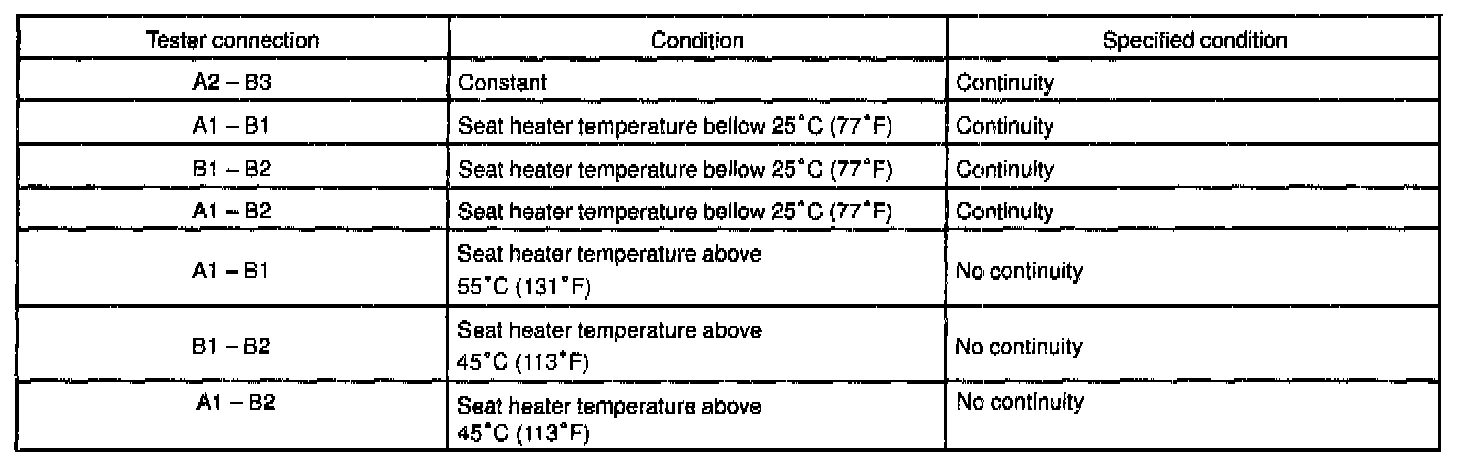

b. Inspect the seat heater continuity between terminals.
If continuity is not as specified, replace the seat cushion pad.

Seat Back:

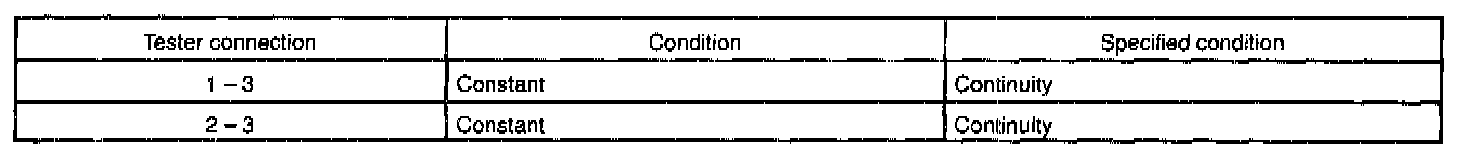

Inspect the seat heater continuity between terminals, as shown.
If continuity is not as specified, replace the seat back pad.
