Power Mirror Control System

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

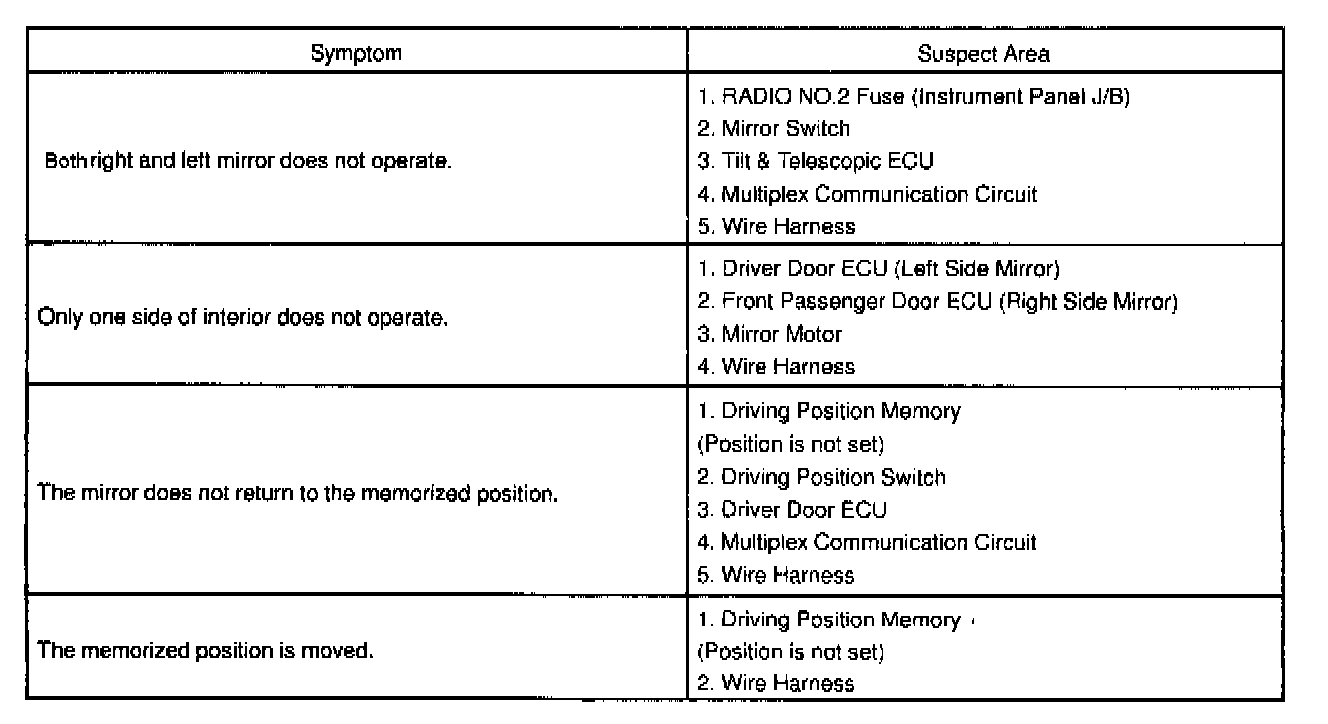

w/ Memory System:

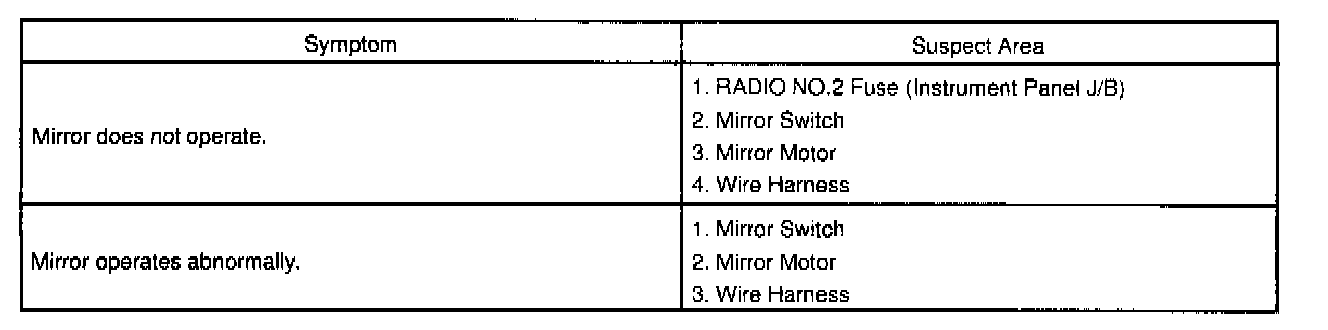

w/o Memory System:
