Dash Board Removal and Installation

REMOVAL
1. TILT DOWN AND PULL OUT STEERING WHEEL
2. REMOVE THESE PARTS:
a. Front seat

Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

b. Rear seat cushion
c. Rear seat belt floor anchor

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

d. Rear seatback

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

e. Front door scuff plates
f. Rear door scuff plates
g. Rear seat side garnishes




h. High-mounted stop light

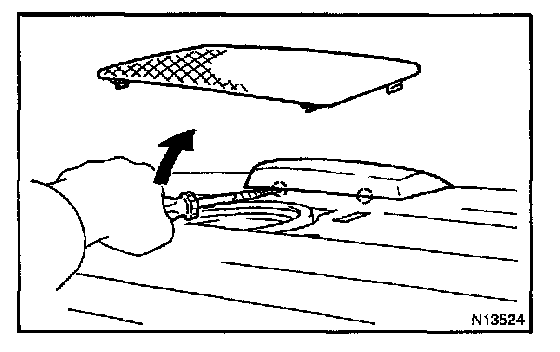

i. Speaker grille
j. Package tray trim
k. Assist grip
l. Center pillar garnishes

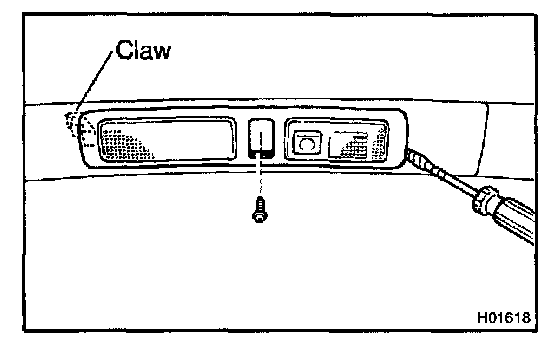

3. REMOVE REAR PERSONAL LIGHT
a. Remove the screw.
b. Using a screwdriver remove the light as shown in the illustration.

HINT: Tape the screwdriver tip before use.

c. Disconnect the connector.

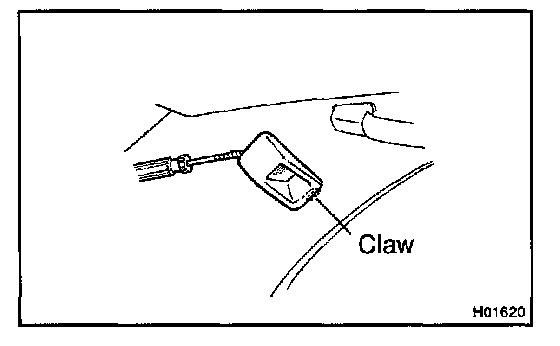

4. REMOVE SPOT LIGHT
a. Using a screwdriver, remove the light as shown in the illustration.

HINT: Tape the screwdriver tip before use.

b. Disconnect the connector.

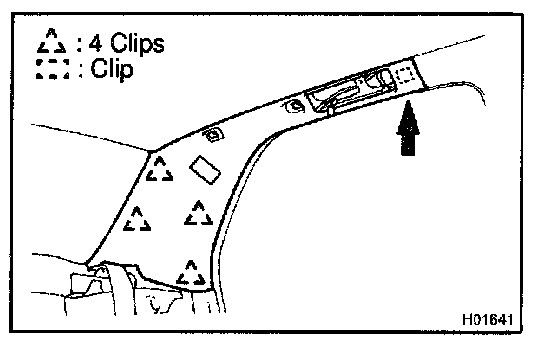

5. REMOVE ROOF SIDE INNER GARNISH
Remove the roof side inner garnish.

NOTE: Paying enough attention remove the clip on the roof side inner garnish shown in the illustration. Otherwise, the roof side inner garnish or the front pillar garnish might be broken.

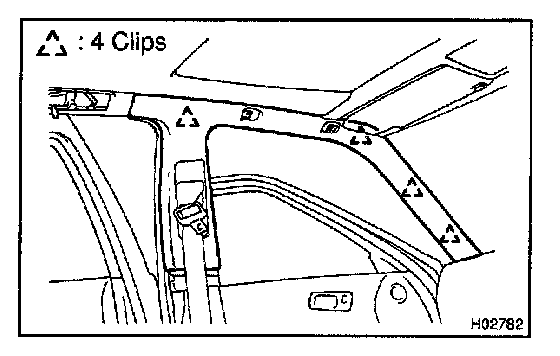

6. REMOVE FRONT PILLAR GARNISH
a. Remove the front seat outer belt shoulder anchor.
b. Remove the front pillar garnish.

7. REMOVE STEERING COLUMN COVER
8. REMOVE STEERING WHEEL

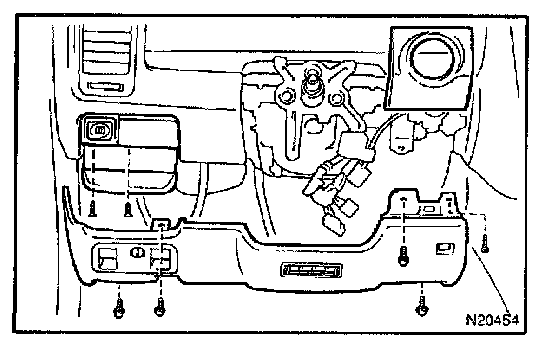

9. REMOVE THESE PARTS:
a. Parking brake release lever
b. Hood lock release lever
c. No.1 under cover
d. Finish plate
e. End pad
f. No.1 safety pad
g. Coin box
h. No.2 heater to register duct
i. No.2 under cover




10. REMOVE INSTRUMENT PANEL BOX ASSEMBLY
a. Using a screwdriver, pry out the glove compartment door finish plate.

HINT: Tape the screwdriver tip before use.

b. Remove the connector from the glove compartment door finish plate.

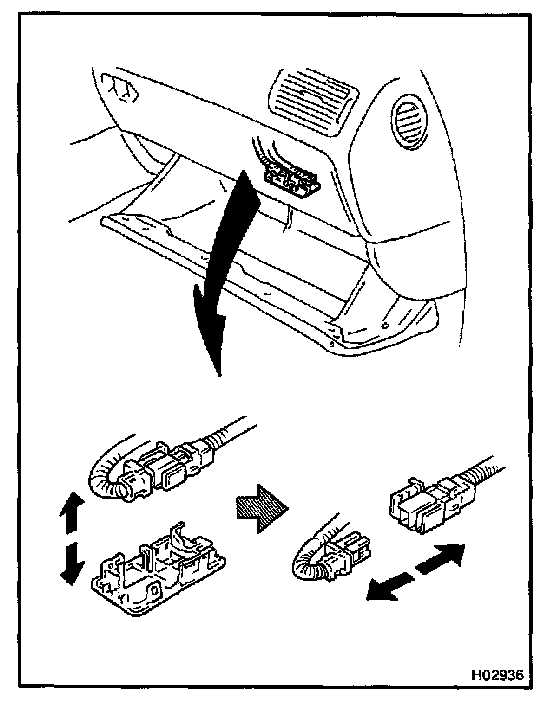

c. Disconnect the airbag connector.

NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.




d. Remove the 3 screws and 2 nuts.
e. Disconnect the connector, remove the instrument panel box assembly.




11. REMOVE GLOVE COMPARTMENT

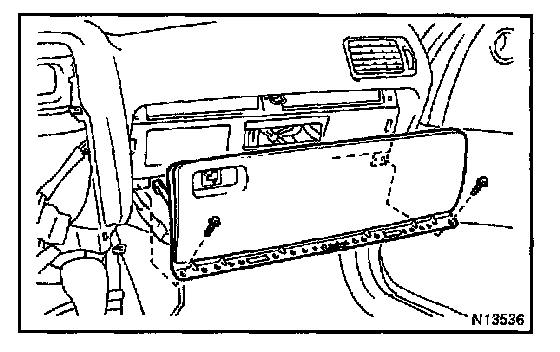

a. Remove the 2 bolts and glove compartment door.
b. Remove the 3 screws and glove compartment.

12. REMOVE STEERING COLUMN




13. REMOVE UPPER CLUSTER FINISH PANEL
a. Using a screwdriver, remove the upper cluster finish panel.
b. Disconnect the connectors.

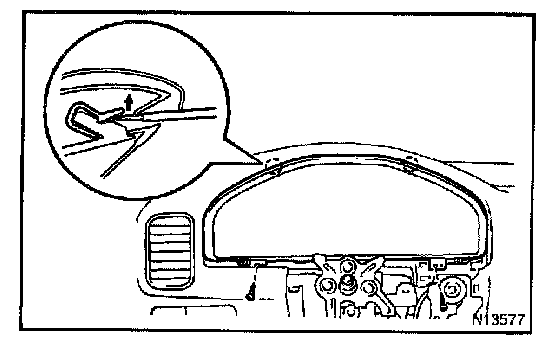

14. REMOVE COMBINATION METER
a. Remove the 2 screws.
b. Insert a screwdriver in the 2 clip holes, remove the combination meter.

HINT: Tape the screwdriver tip before use.

c. Disconnect the connectors.




15. REMOVE NO.2 REGISTER
a. Using a screwdriver, remove the No.2 register as shown in the illustration.

HINT: Tape the screwdriver tip before use.

b. Disconnect the connector.




16. REMOVE CLUSTER FINISH PANEL

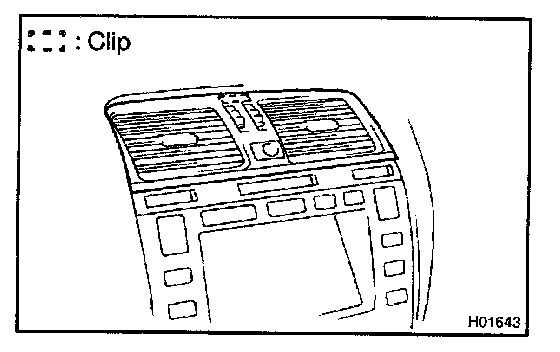

a. Using a screwdriver, remove the cluster finish panel.

HINT: Tape the screwdriver tip before use.

b. Disconnect the connector.

17. REMOVE THESE PARTS:
a. Radio with A/C control assembly
b. Cup holder

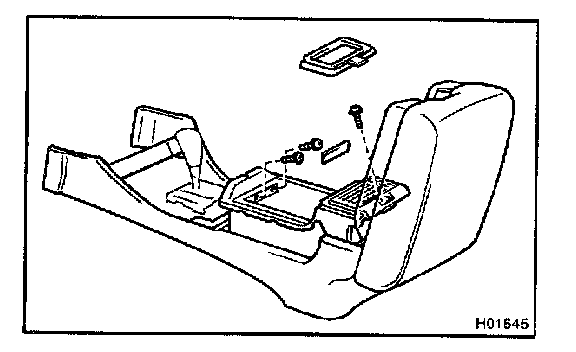

18. REMOVE LOWER REAR CONSOLE BOX

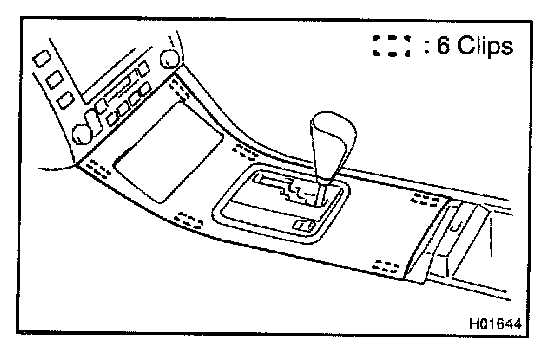

a. Remove the lower console cover.
b. Remove the rear console cover.
c. Disconnect the connector.
d. Remove the 3 screws and lower rear console box.

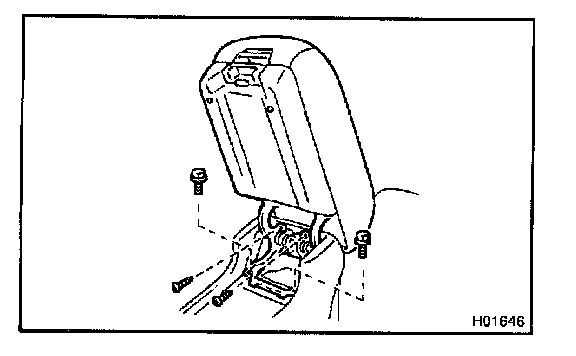

19. REMOVE REAR CONSOLE ARMREST
a. Remove the No.3 console box duct.
b. Remove the 2 bolts, 2 screws and rear console armrest.

20. REMOVE CONSOLE BOX

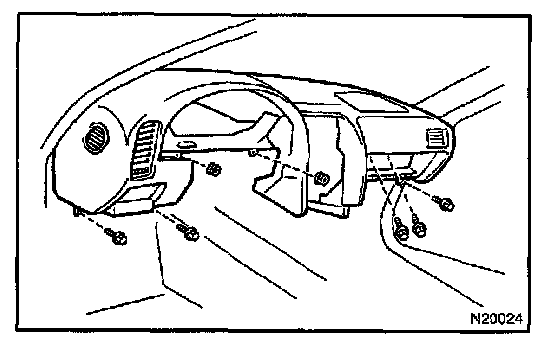

21. REMOVE INSTRUMENT PANEL
a. Remove the 2 bolts from the front passenger airbag assembly.

Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

b. Remove the 3 bolts and 2 nuts.
c. Disconnect the connectors.
d. Remove the instrument panel.




22. REMOVE INSTRUMENT PANEL REINFORCEMENT
a. Remove the 4 nuts arid 6 bolts.
b. Remove the instrument panel reinforcement.

INSTALLATION
Installation is in the reverse order of removal.
