Component Inspection

INSPECT LUGGAGE COMPARTMENT DOOR OPENER MOTOR OPERATION

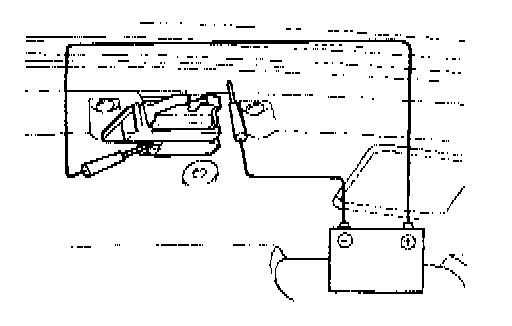

Connect positive (+) lead to the opener motor connector and
negative (-) lead to the body of the opener motor, and check that the motor operates.

INSPECT LUGGAGE COMPARTMENT DOOR OPENER MOTOR CIRCUIT
