Amplifier: Testing and Inspection

Nakamichi made:
INSPECT POWER AMPLIFIER CIRCUIT

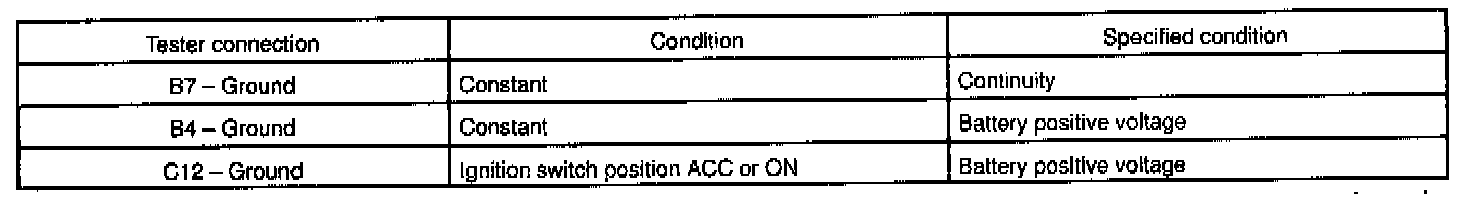

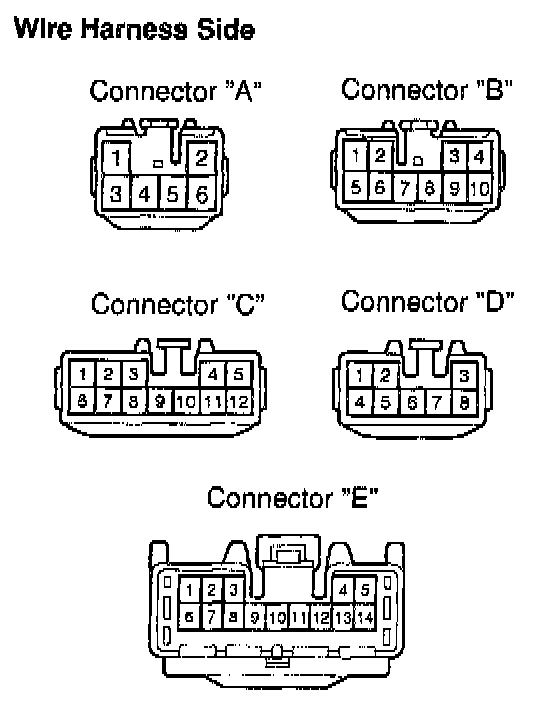

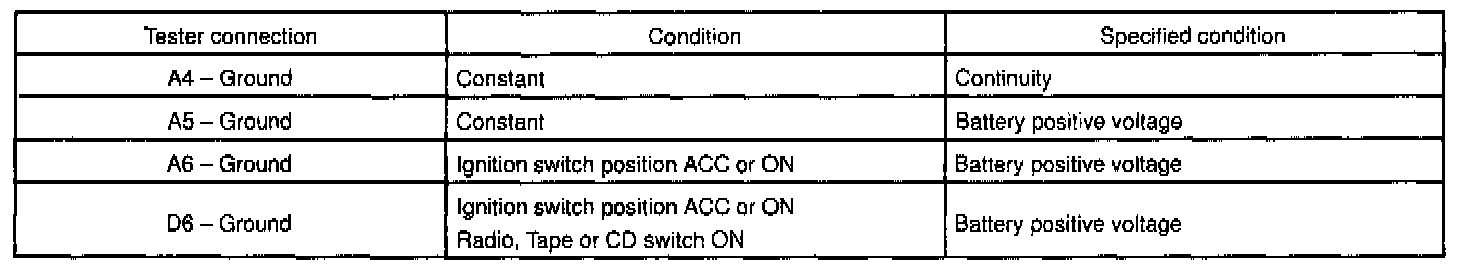

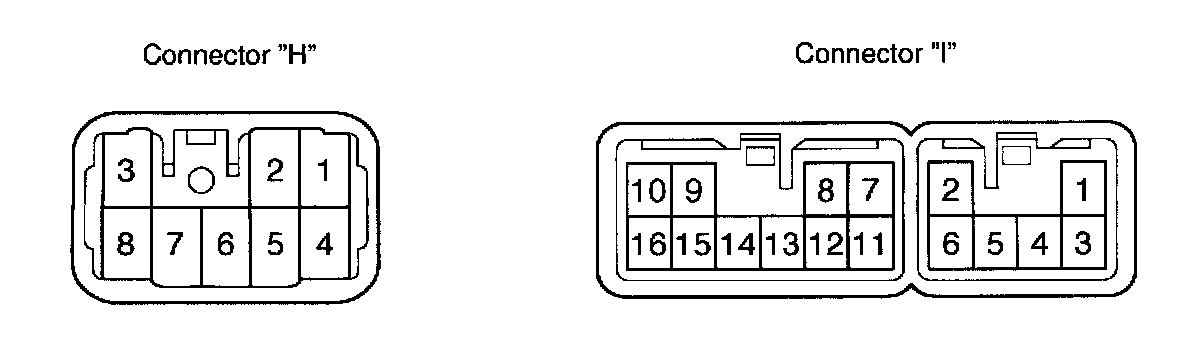

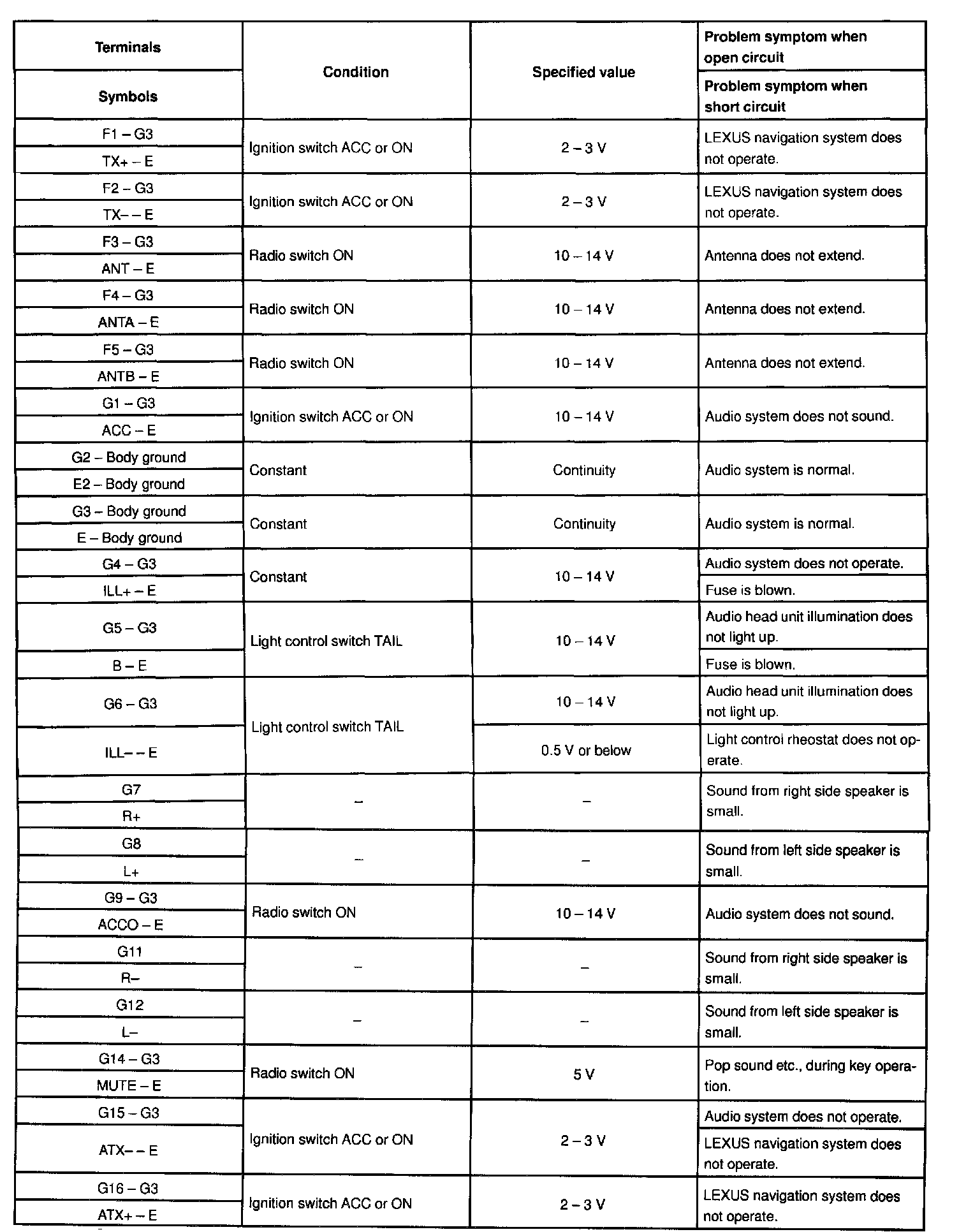

Disconnect the connector from the power amplifier and inspect the connector on the wire harness side, as shown.

If circuit is not as specified, inspect the circuits connected to other parts.

Pioneer made and LEXUS navigation system:
INSPECT POWER AMPLIFIER CIRCUIT

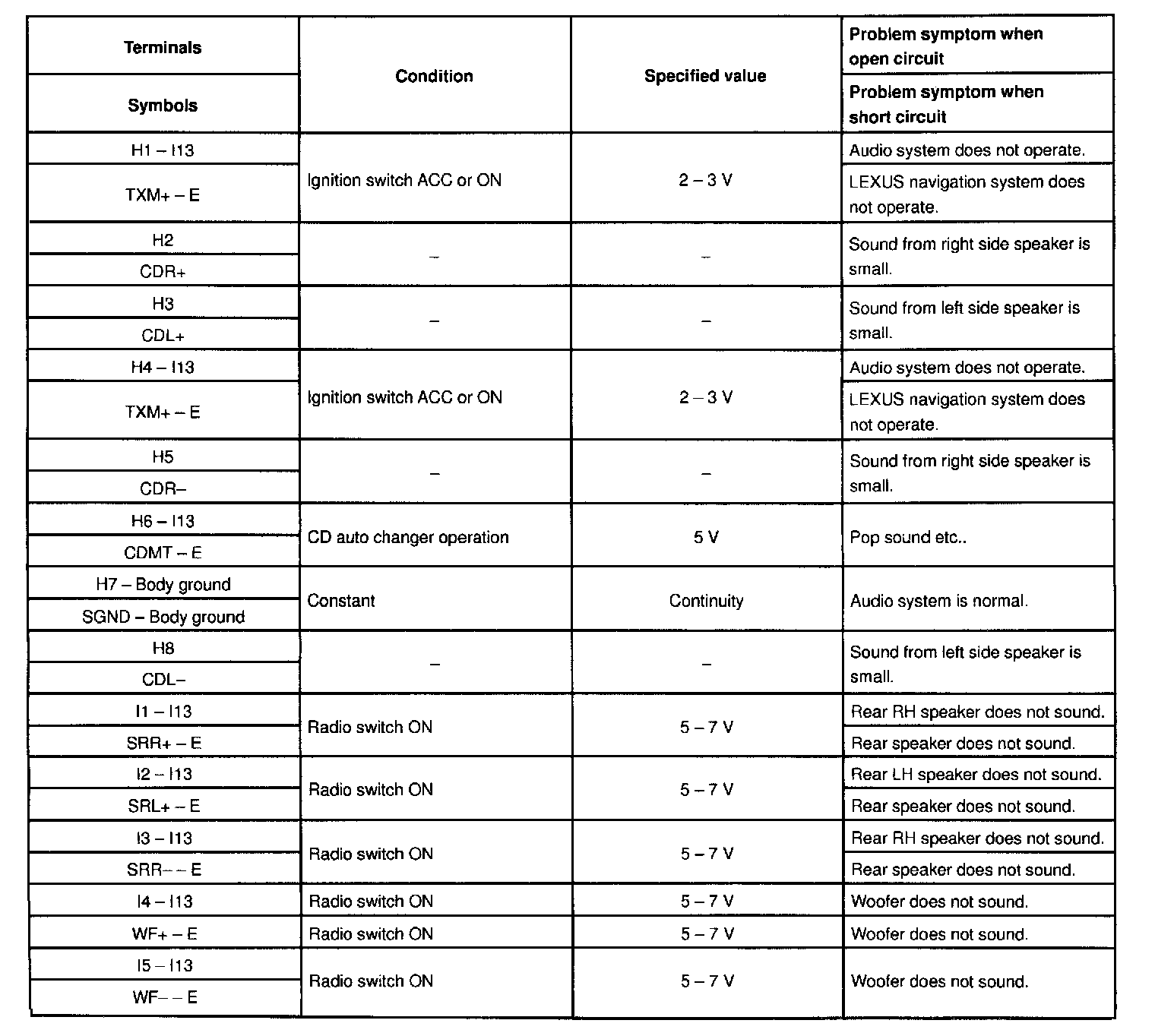

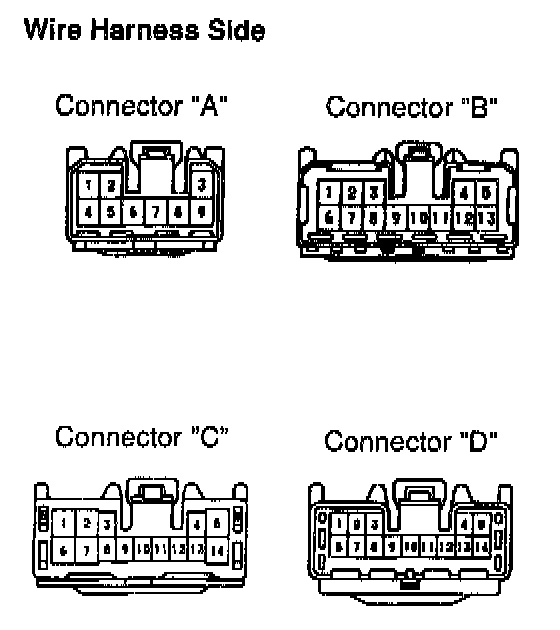

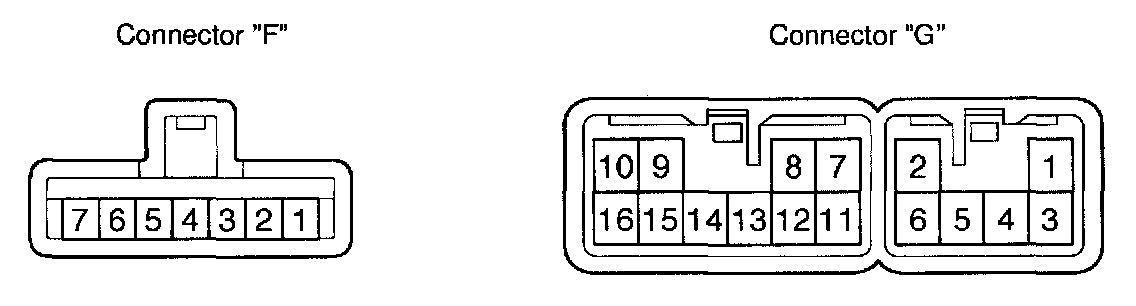

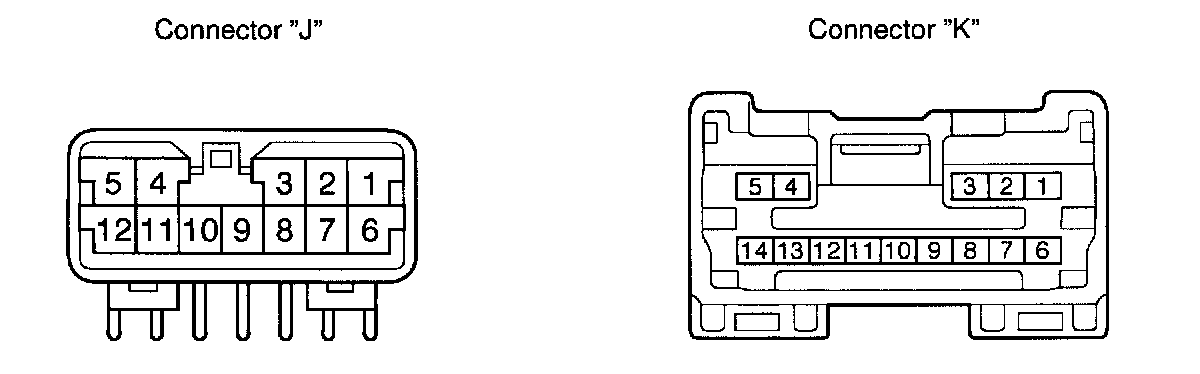

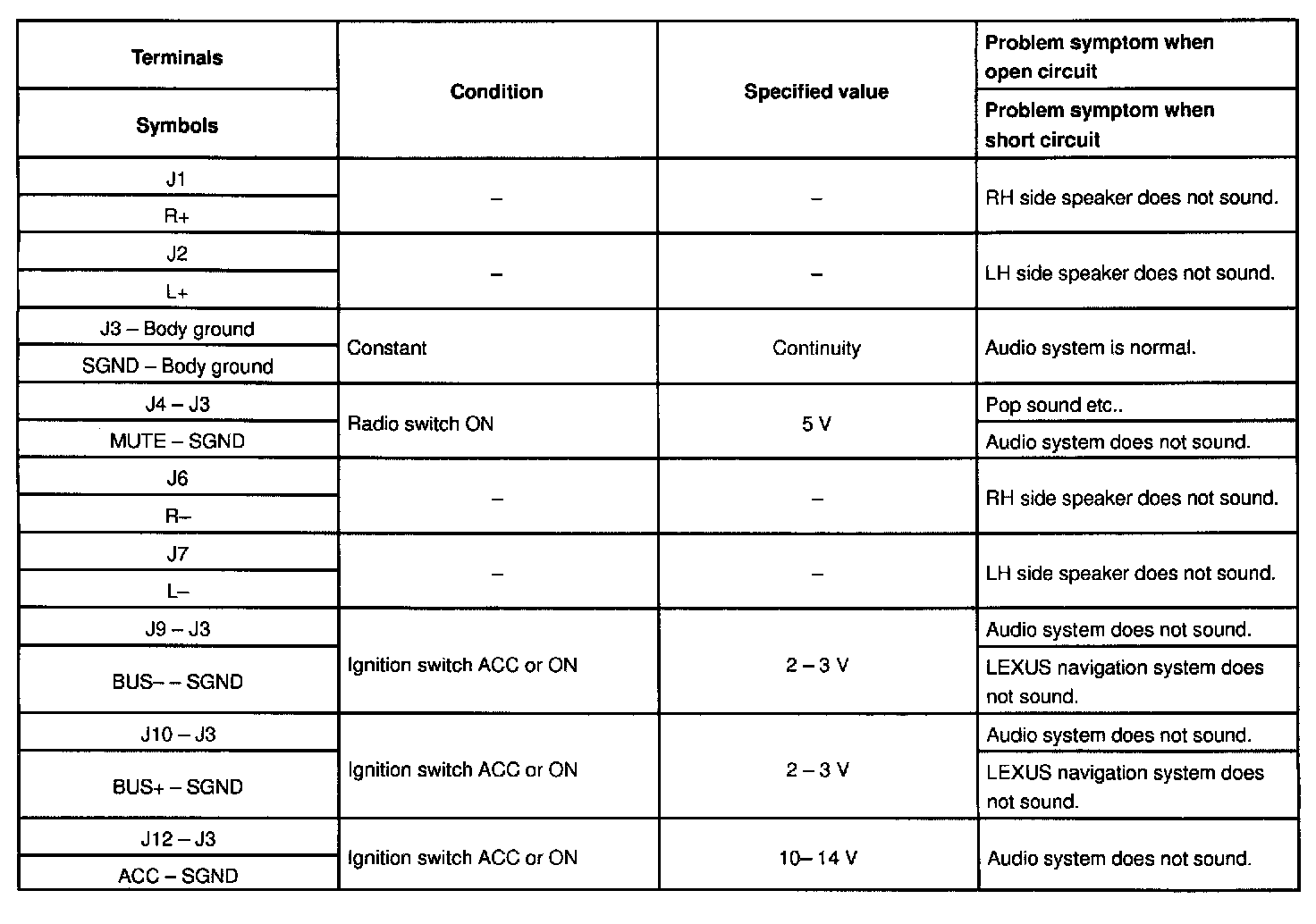

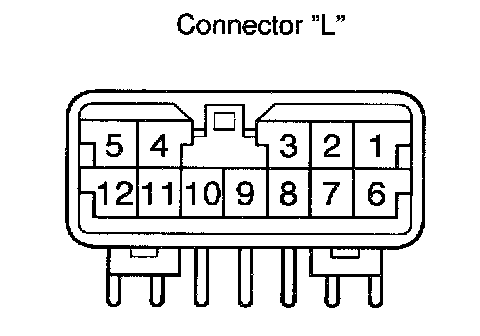

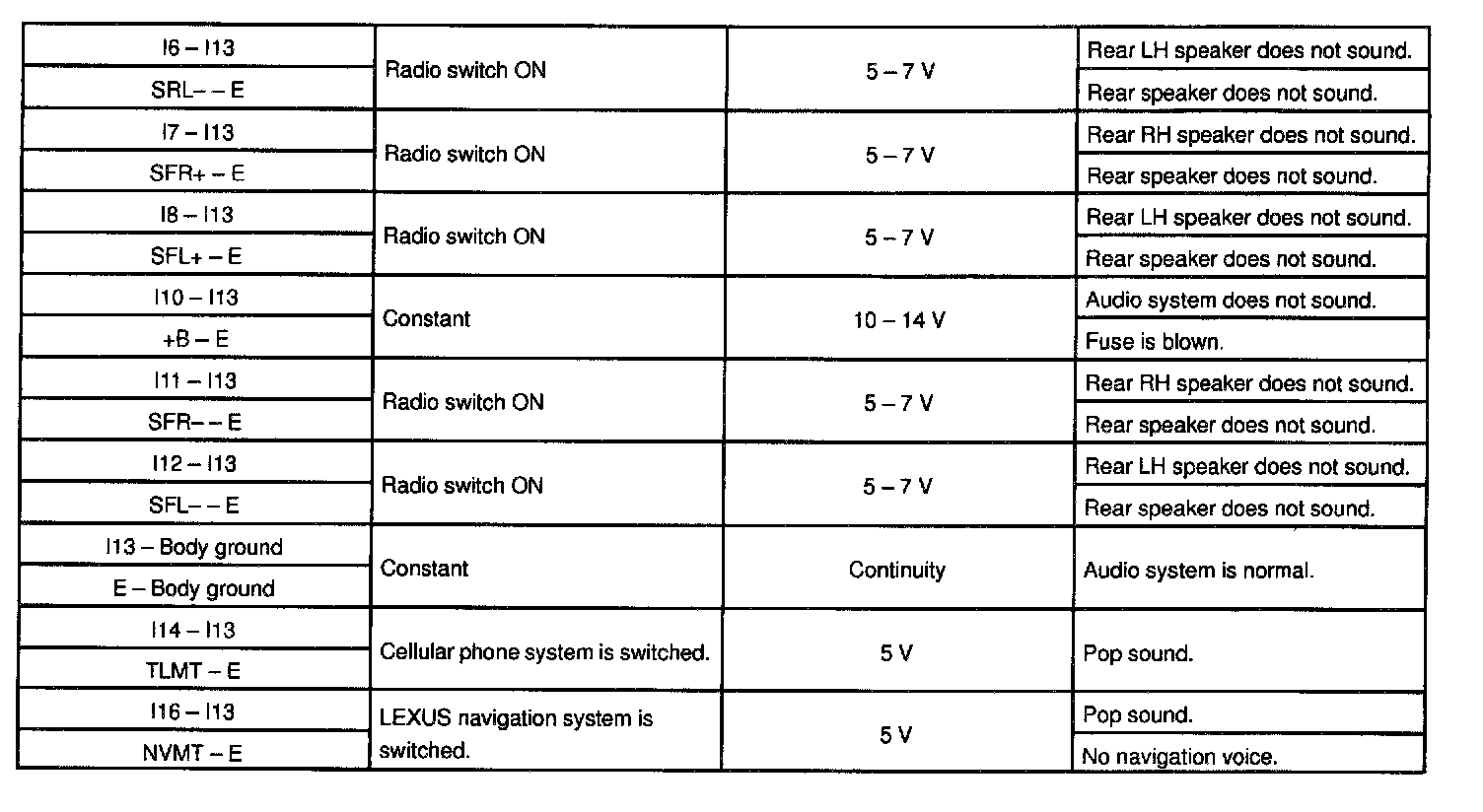

Disconnect the connector from the power amplifier and inspect the connector on the wire harness side as shown.







3. AUDIO HEAD UNIT










4. POWER AMPLIFIER - 1







5. POWER AMPLIFIER - 2







5. CD AUTO CHANGER
