Garage Door Opener Transmitter: Service and Repair
REMOVAL1. REMOVE FRONT PERSONAL LIGHT LENS
2. REMOVE FRONT PERSONAL LIGHT
a. Remove the 3 screws.
b. Disconnect the 2 connectors.
3. REMOVE GARAGE DOOR OPENER
a. Remove the 3 screws.
b. Remove the garage door opener connector from the personal light.
c. Disconnect the secondary locking device.

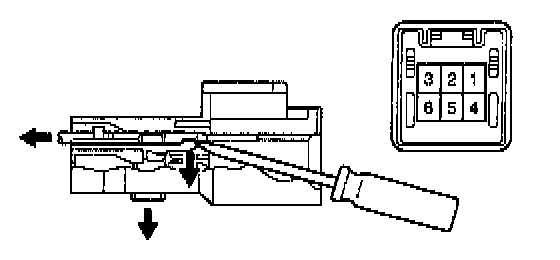

d. Release the locking plug of the terminal 4 and 5, and pull the terminals out from the rear.
HINT: Use a small screw driver.
INSTALLATION
1. INSTALL GARAGE DOOR OPENER
a. Connect the wire harness to the terminal 4 and 5.
b. install the 3 screws.
2. INSTALL FRONT PERSONAL LIGHT
a. Connect the 2 connectors.
b. install the 3 screws.
3. INSTALL FRONT PERSONAL LIGHT LENS
