Ignition Key In Signal: Testing and Inspection

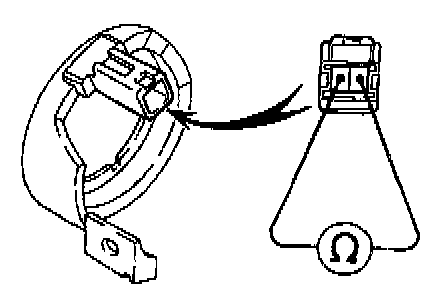

INSPECTION TRANSPONDER KEY COIL CONTINUITY
Check that there is continuity between terminal 1 and 2. If continuity is not as specified, replace the coil.
