B1435

CIRCUIT DESCRIPTION




This sensor detects the position of the max. cool damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the max. cool damper control servomotor assembly.

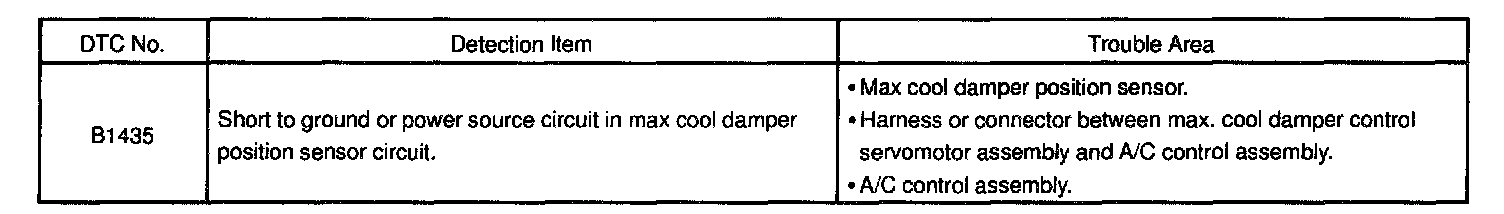

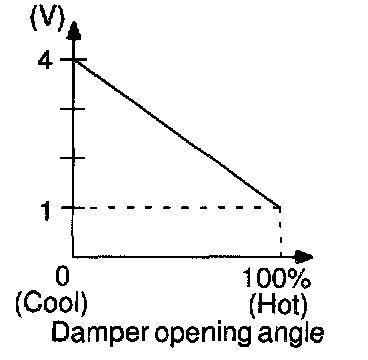

DETECTING CONDITIONS




WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

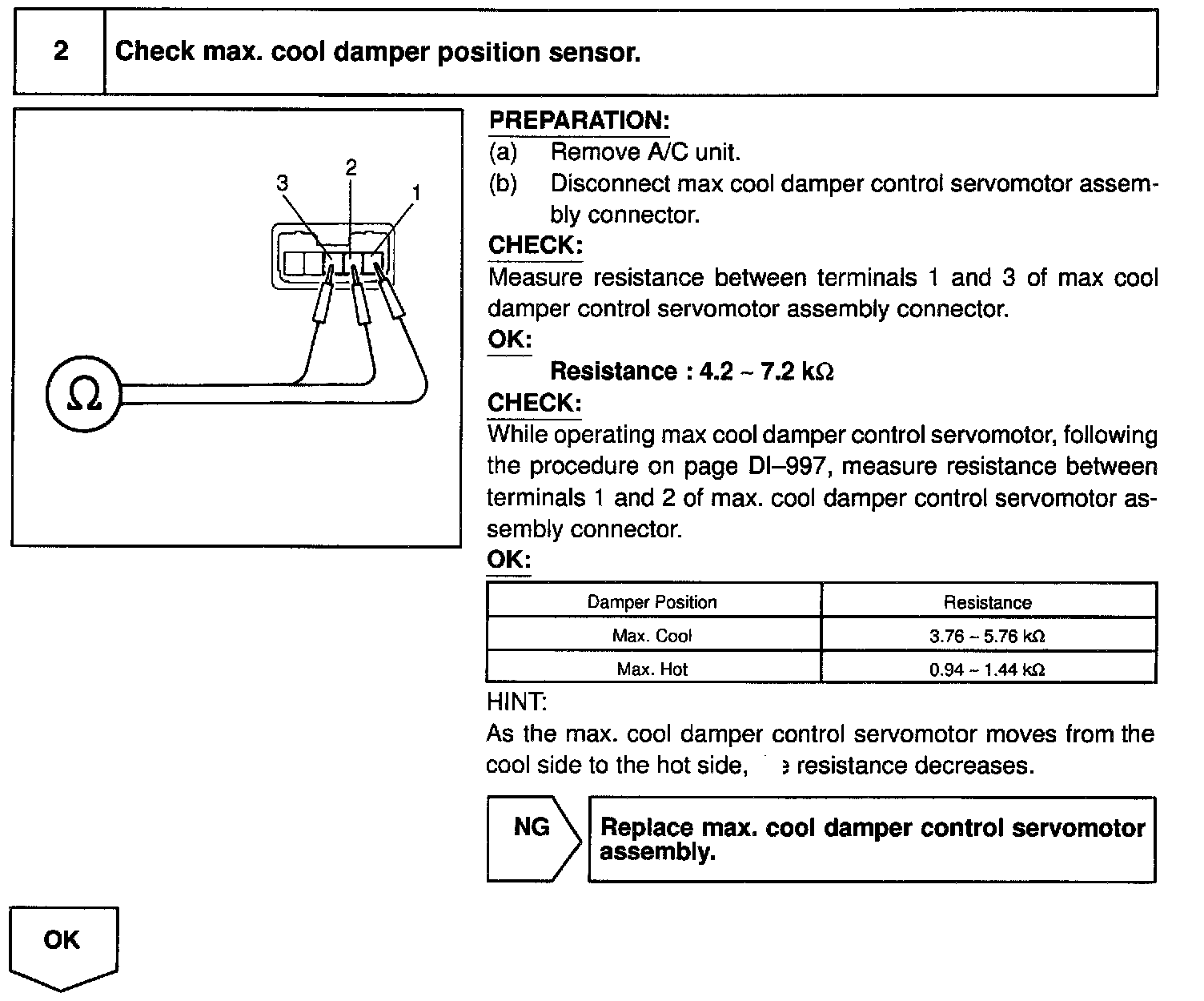

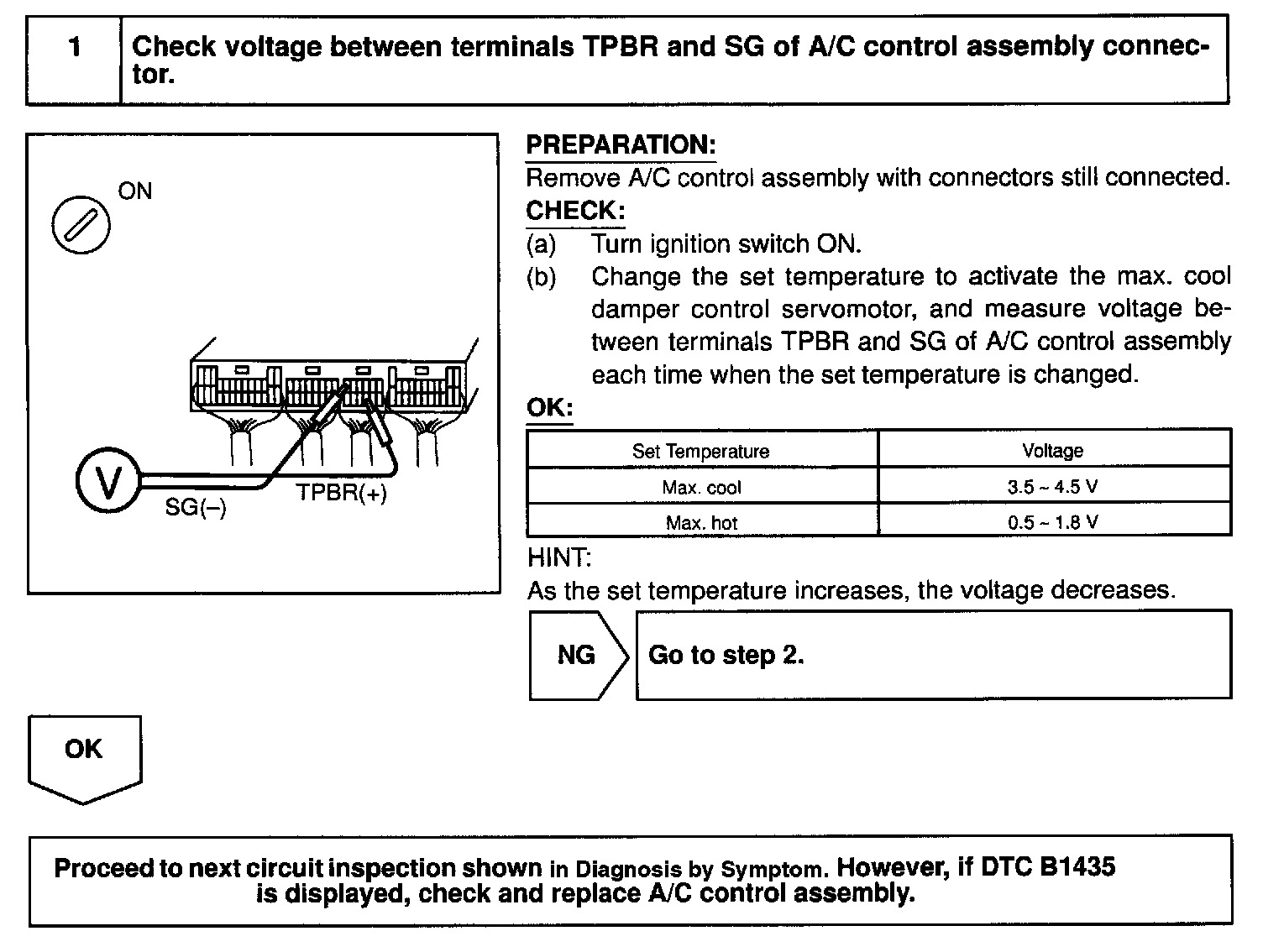

INSPECTION PROCEDURE
