B0135

CIRCUIT DESCRIPTION

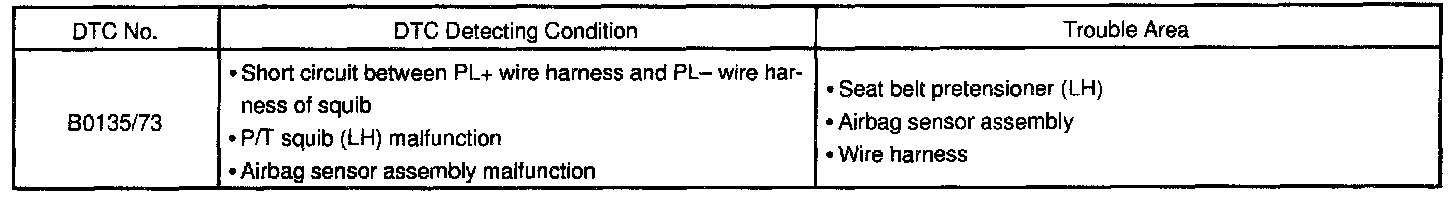

The P/T squib (LH) circuit consists of the airbag sensor assembly and seat belt pretensioner (LH).
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each components, see OPERATION.
DTC B0135/73 is recorded when a short is detected in the P/T squib (RH) circuit.

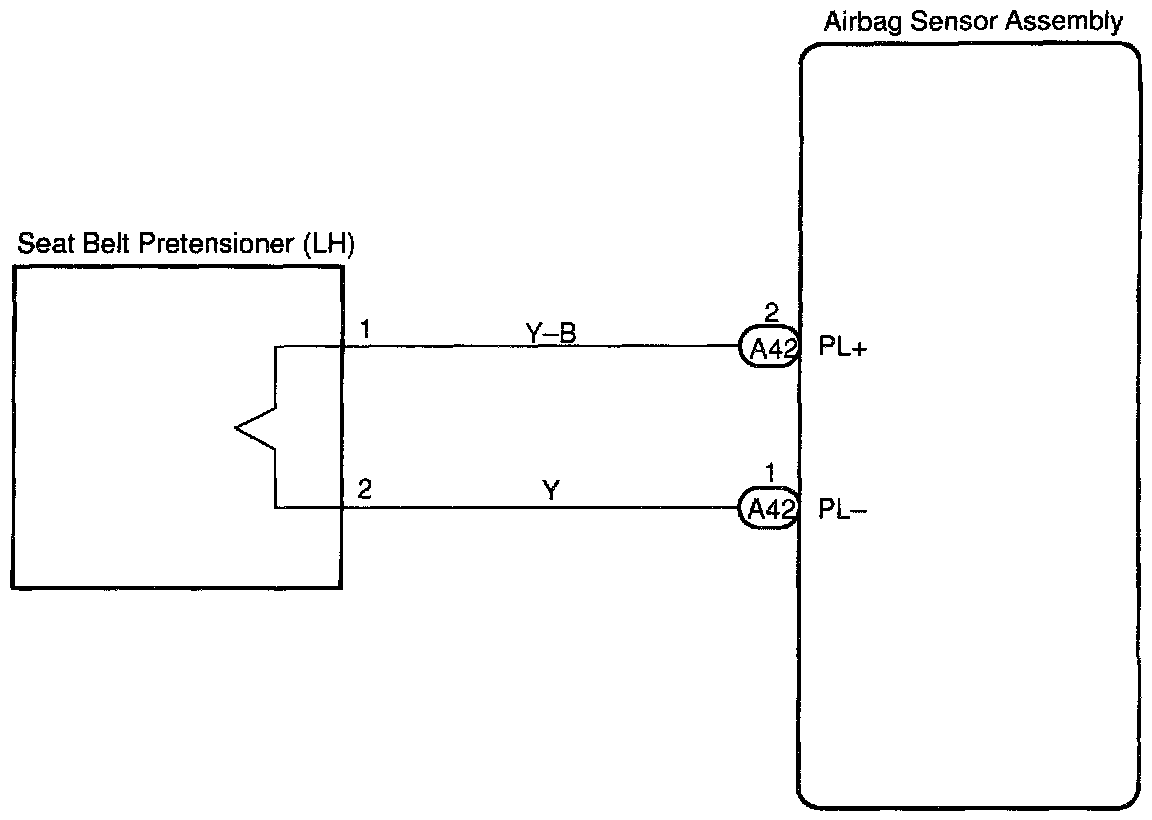

WIRING DIAGRAM

INSPECTION PROCEDURE

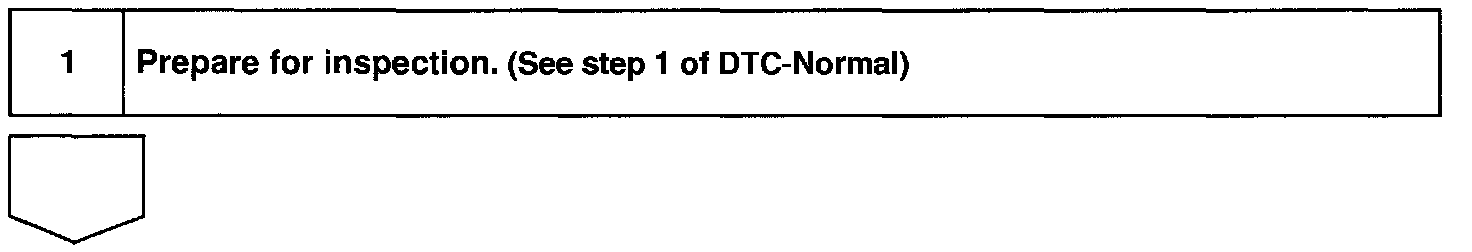

Step 1/Prepare for Inspection




Step 2/Check P/T squib (LH) circuit

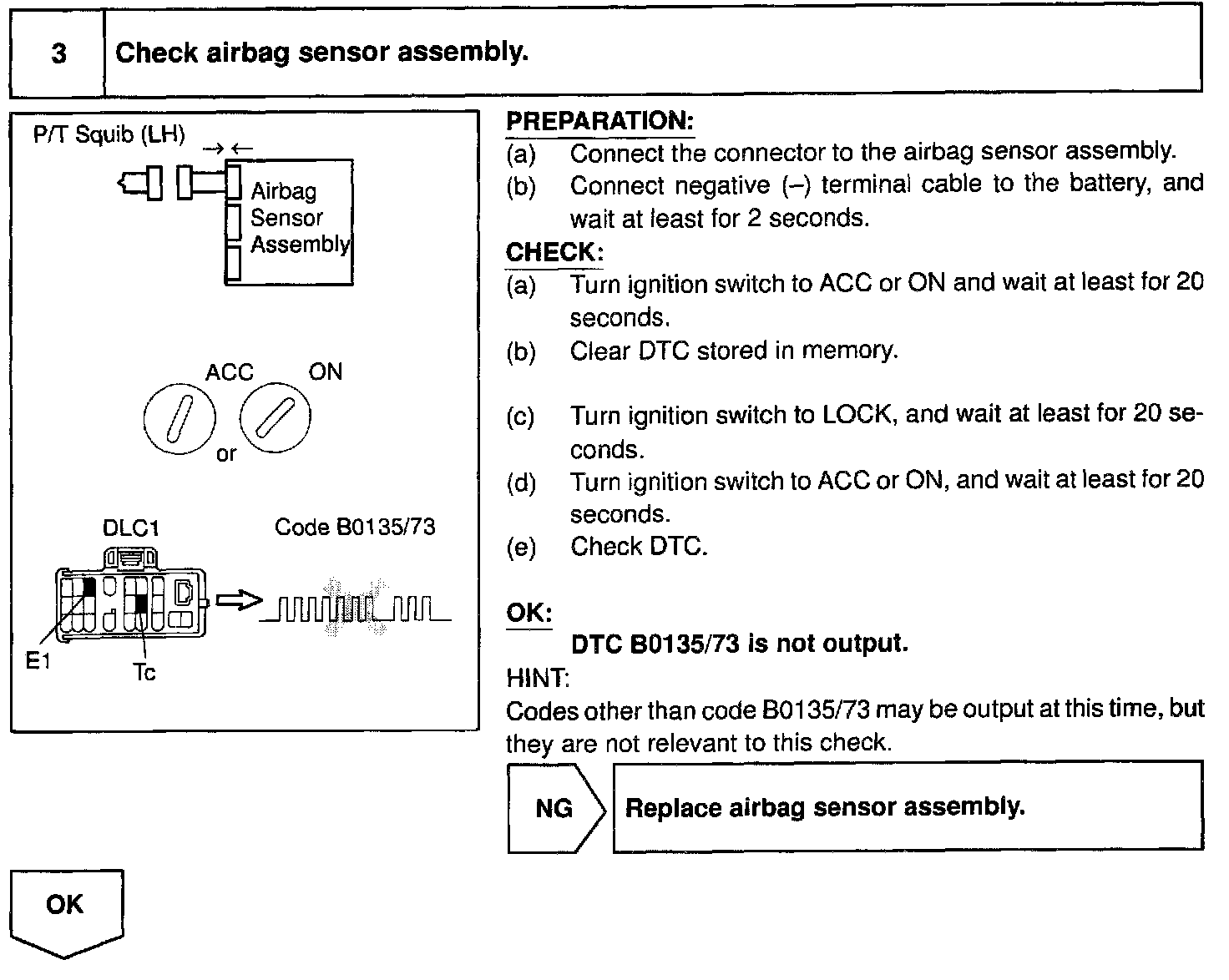

Step 3/Check airbag sensor assembly

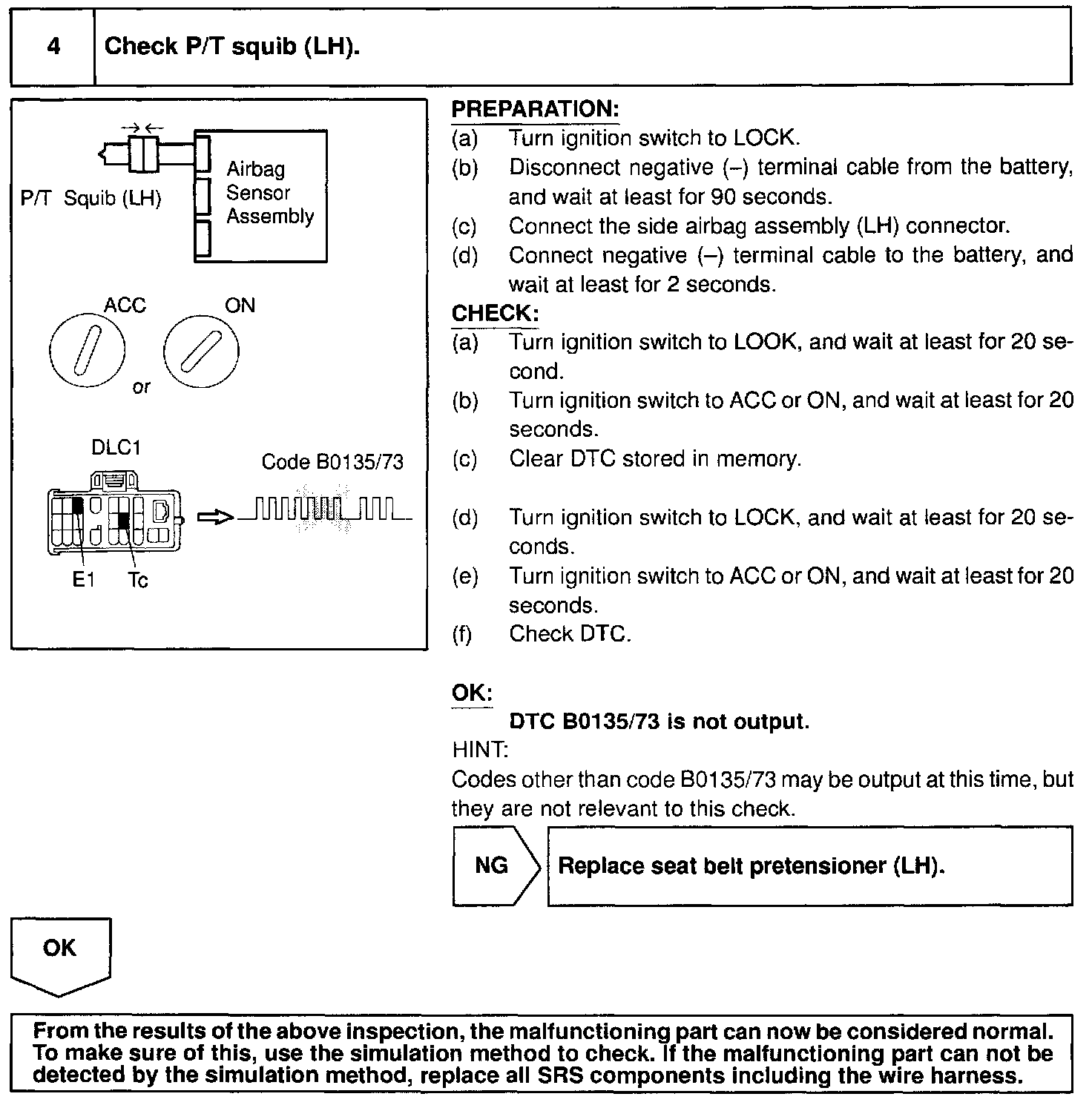

Step 4/Check P/T squib (LH)
