B0107

CIRCUIT DESCRIPTION

The P squib circuit consists of the airbag sensor assembly and front passenger airbag assembly.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each components, see OPERATION.

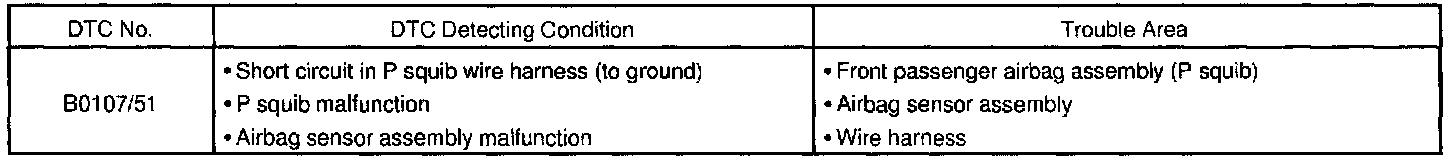

DTC B0107/51 is recorded when a ground short is detected in the P squib circuit.

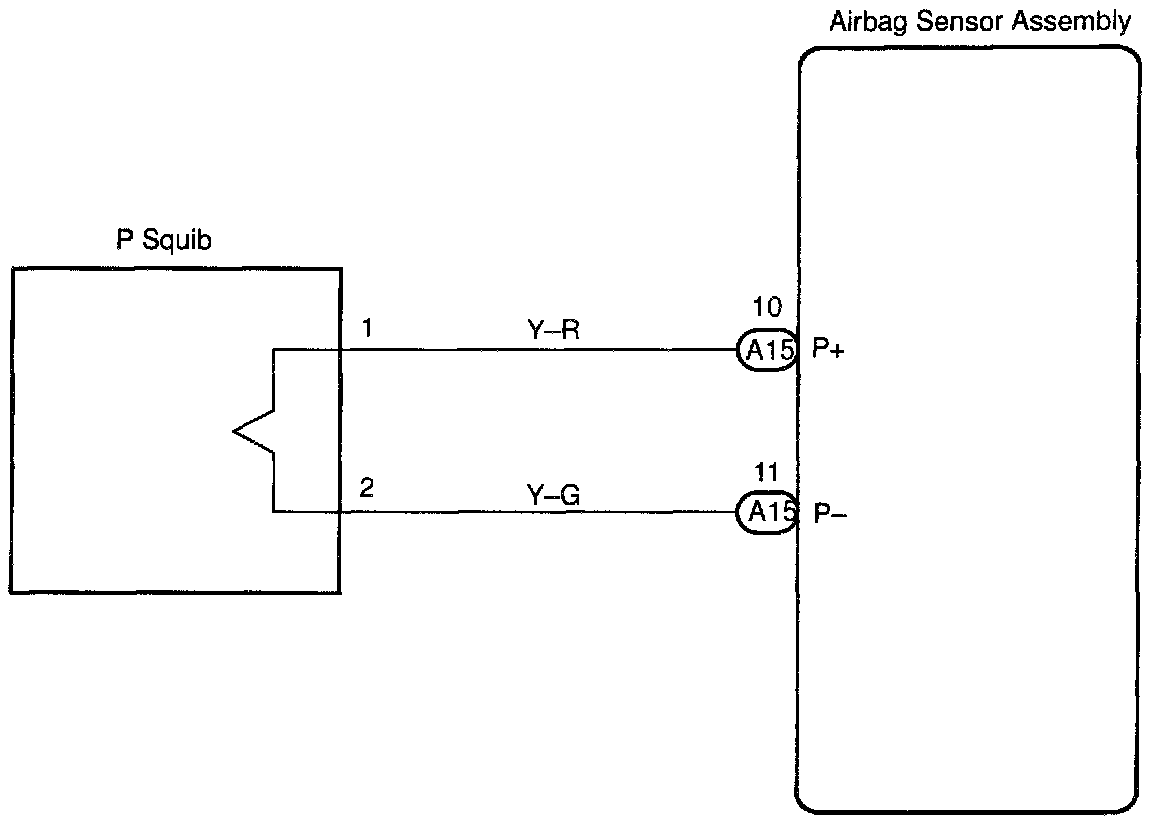

WIRING DIAGRAM

INSPECTION PROCEDURE

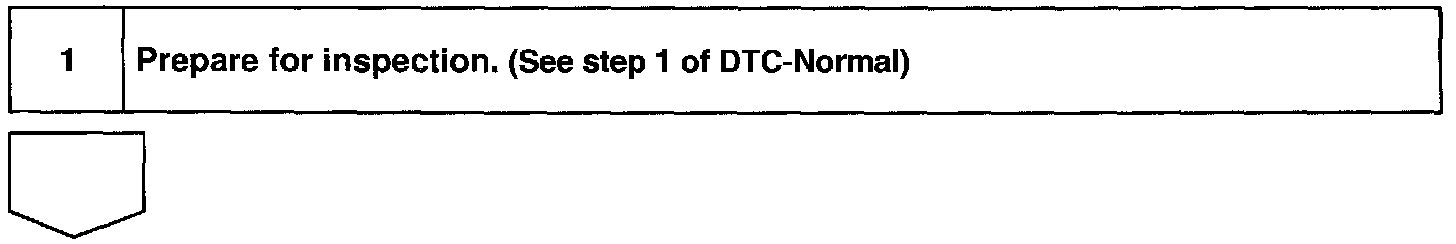

Step 1/Prepare for Inspection

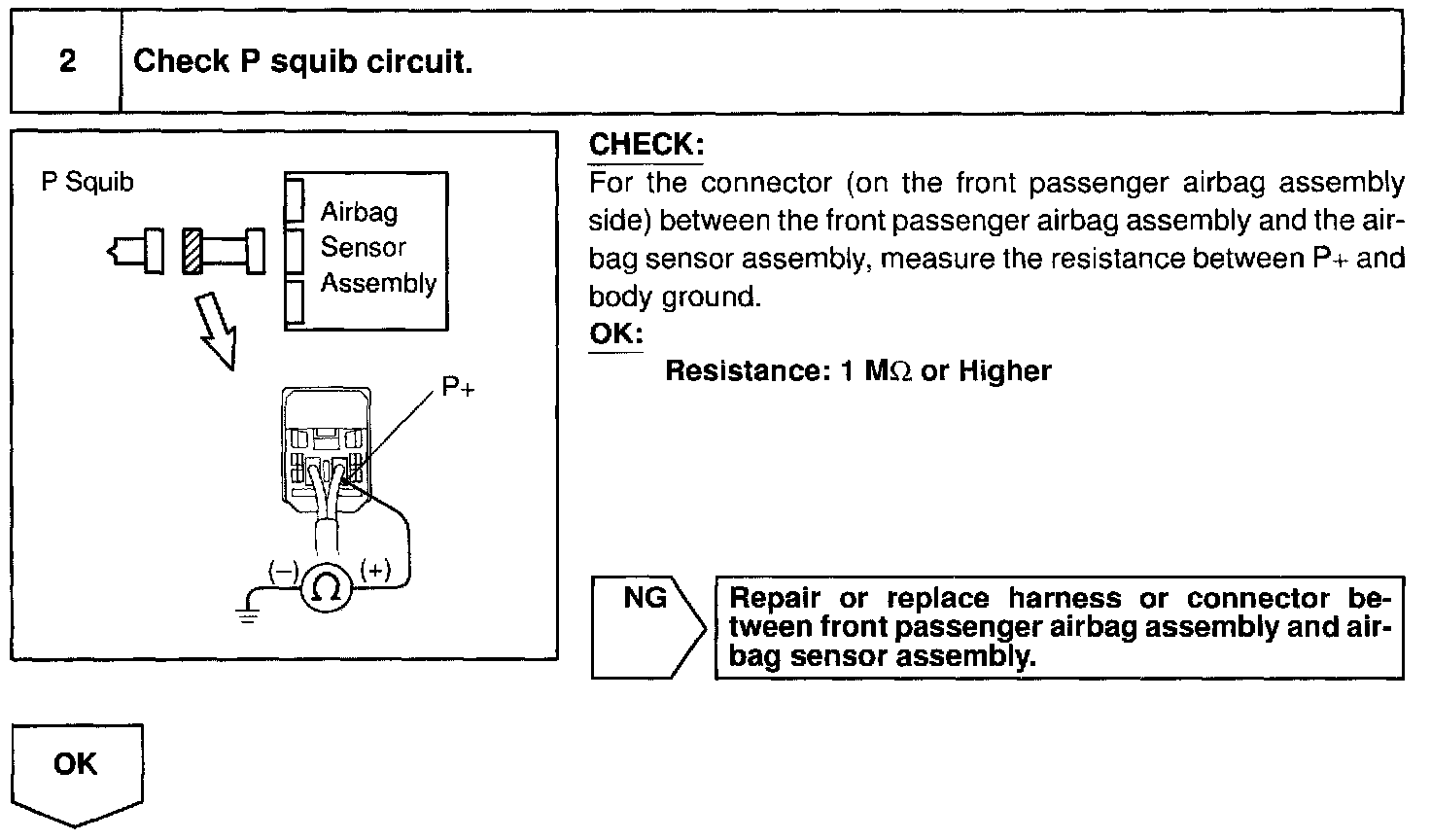

Step 2/Check P squib circuit

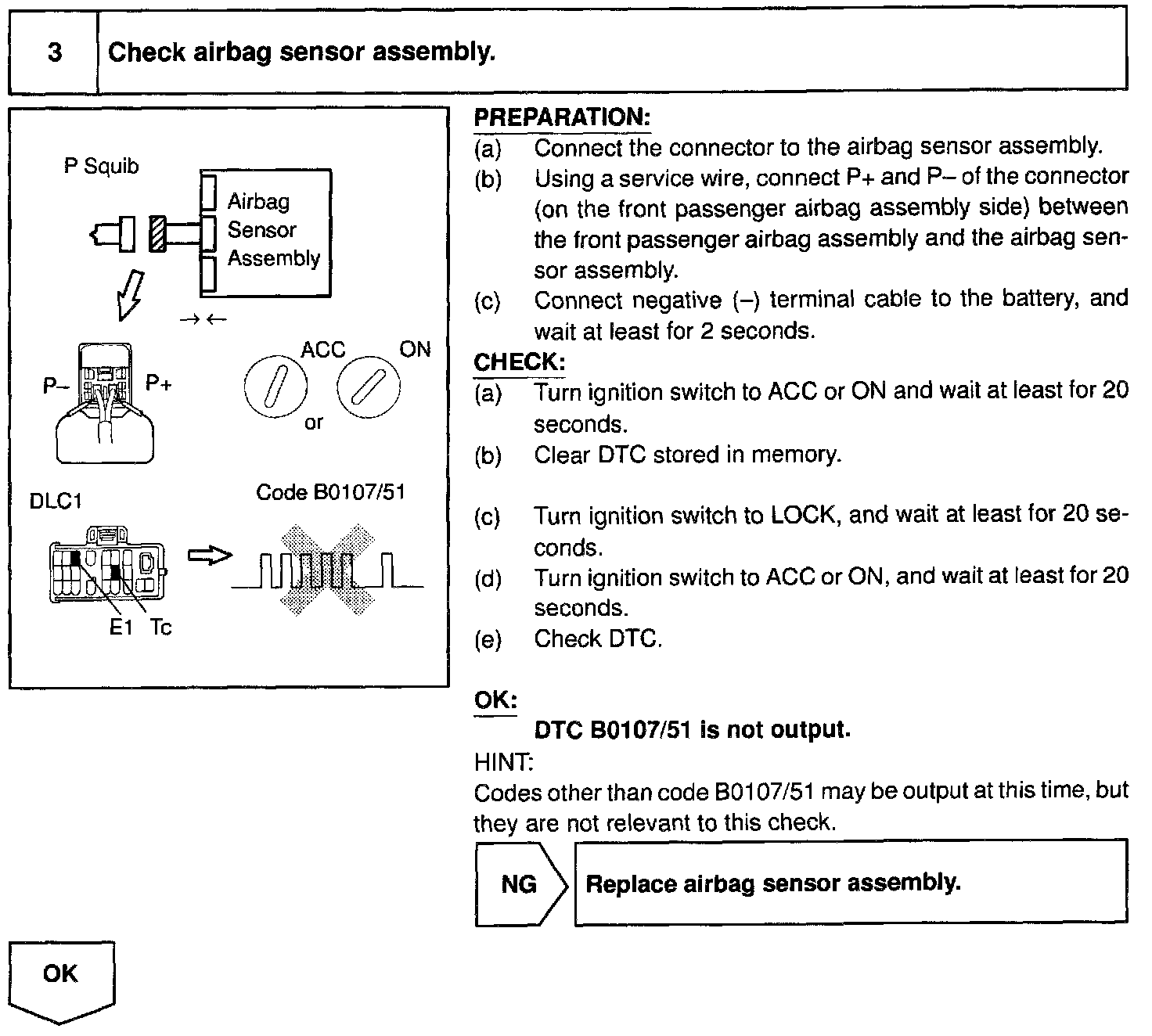

Step 3/Check airbag sensor assembly

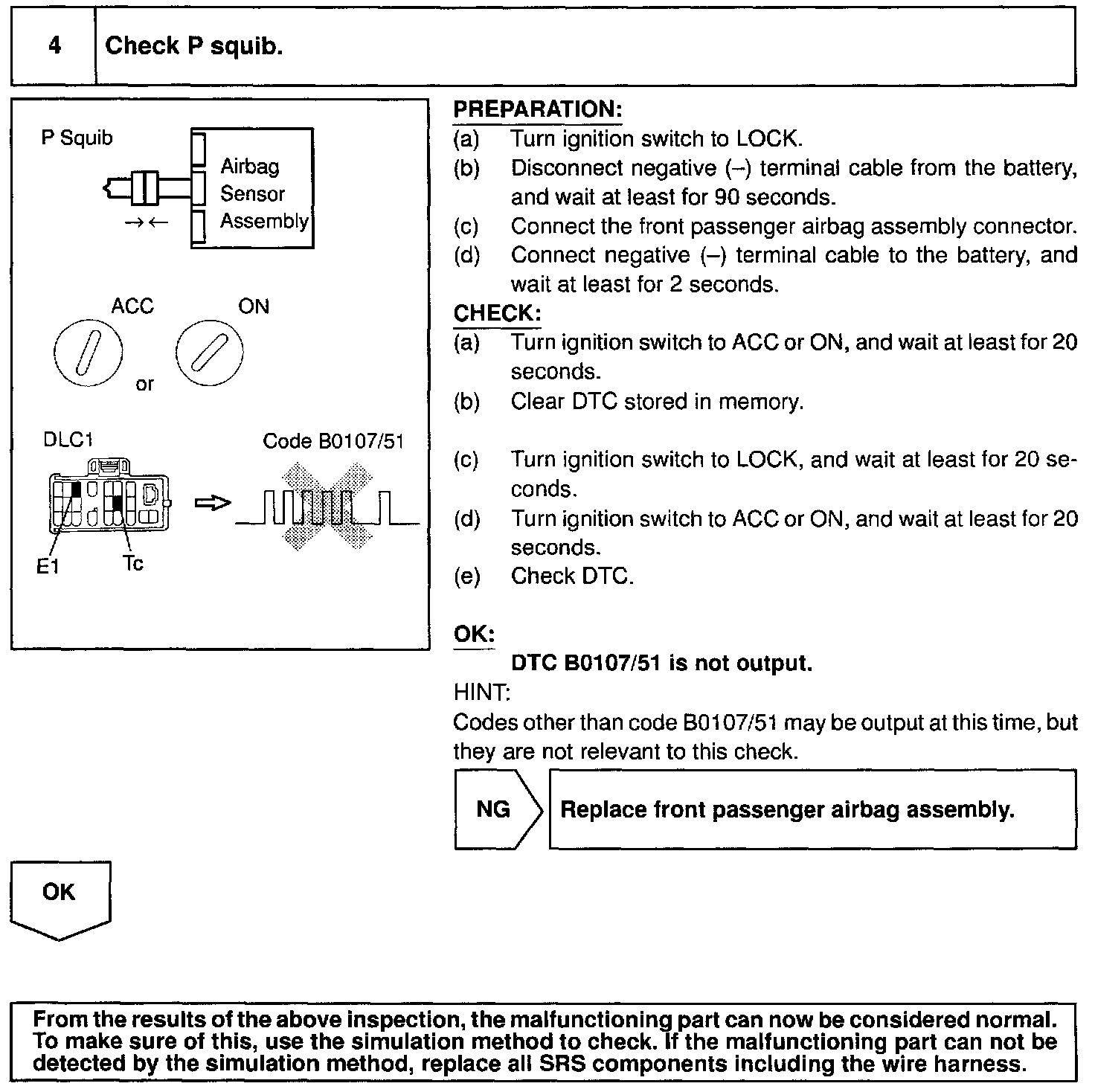

Step 4/Check P squib
