Removal and Installation

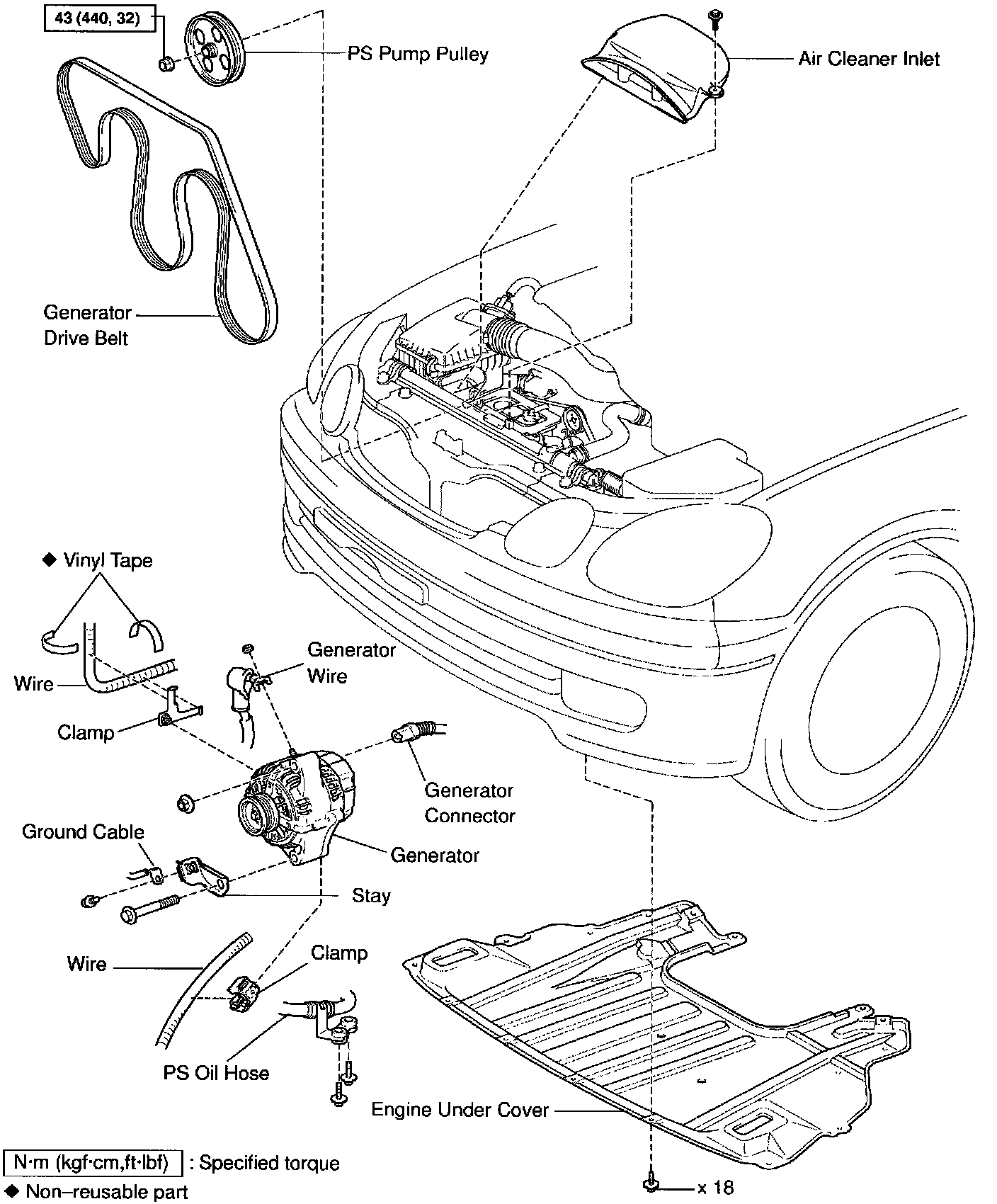

COMPONENTS

REMOVAL

1. REMOVE ENGINE UNDER COVER
2. REMOVE AIR CLEANER INLET




3. REMOVE GENERATOR DRIVE BELT

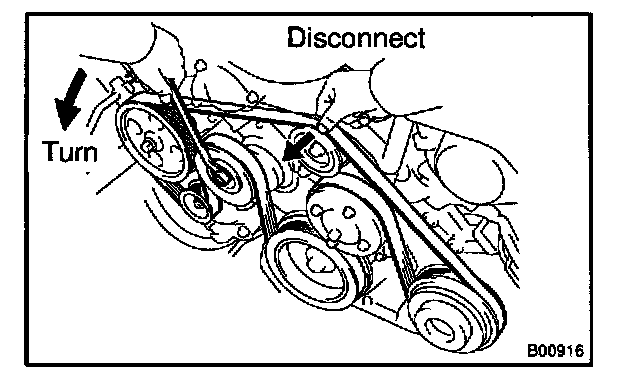

Loosen the belt tension by turning the drive belt tensioner counterclockwise, and remove the dive belt.

HINT: The tensioner pulley bolt has a left-hand thread.




4. REMOVE PS PUMP PULLEY

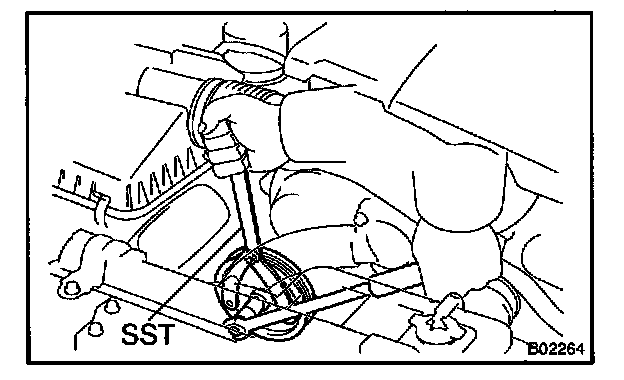

Using SST, remove the nut and PS pump pulley.
SST 09960-10010 (09962-01000, 09963-01000)

5. REMOVE GENERATOR
a. Disconnect the generator connector.
b. Remove the rubber cap and nut, and disconnect the generator wire.

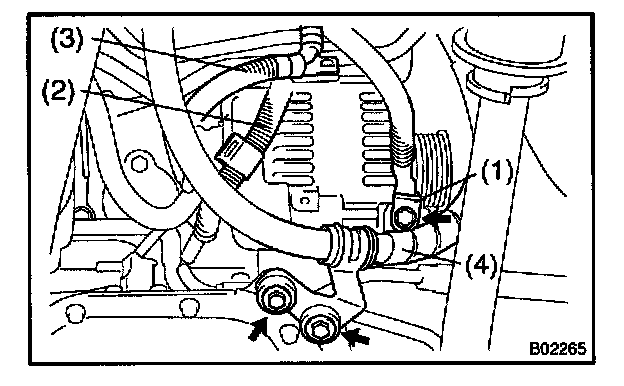

c. Disconnect these parts:
1. Ground cable
2. Wire (for generator wire) from clamp on cord clip
3. Wire (for generator connector) from clamp on cord clip
Take out the vinyl tape, and disconnect the wire from the cord clip.
4. PS oil hose from No.1 oil pan.




d. Remove the nut, bolt, stay and generator.

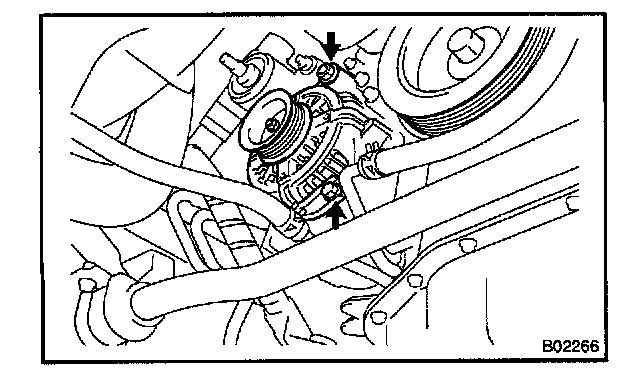

e. Remove the 2 clamps from the cord clips on the generator.

INSTALLATION
Installation is in the Reverse order of removal.
