Home >> Lexus >> 1999 >> GS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

Torque Specifications

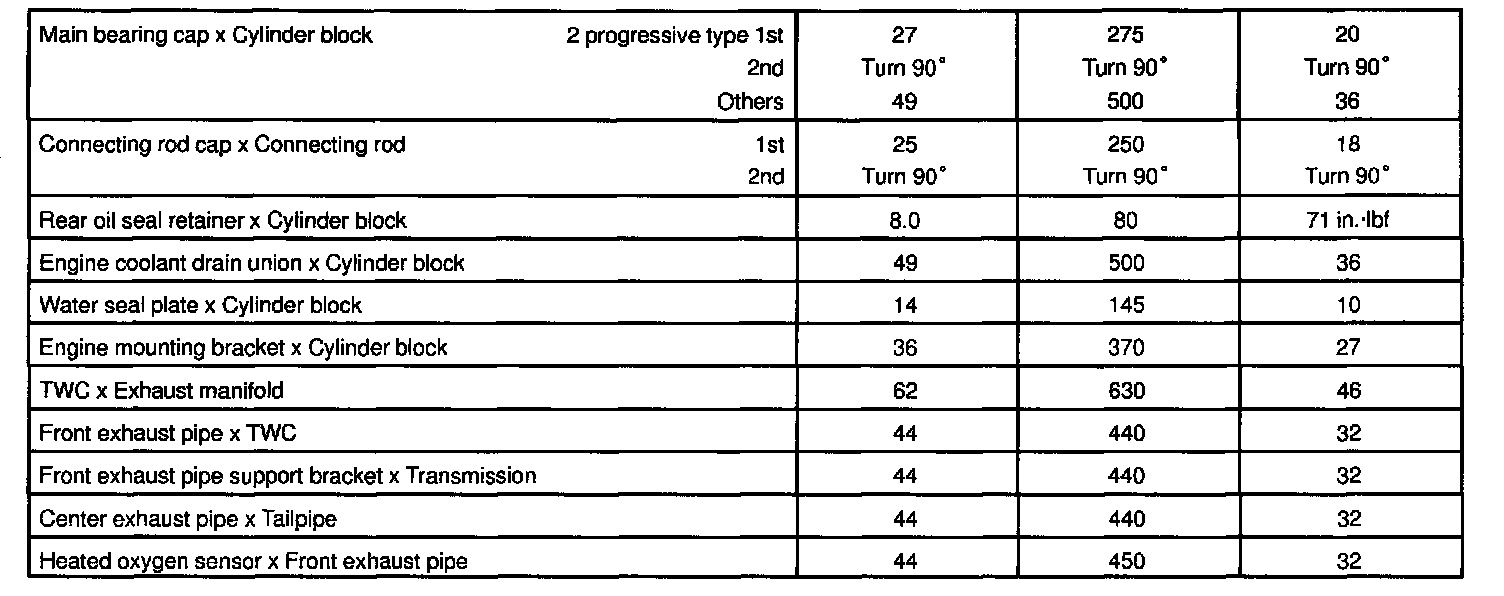

1UZ-FE Engine Mechanical Torque:

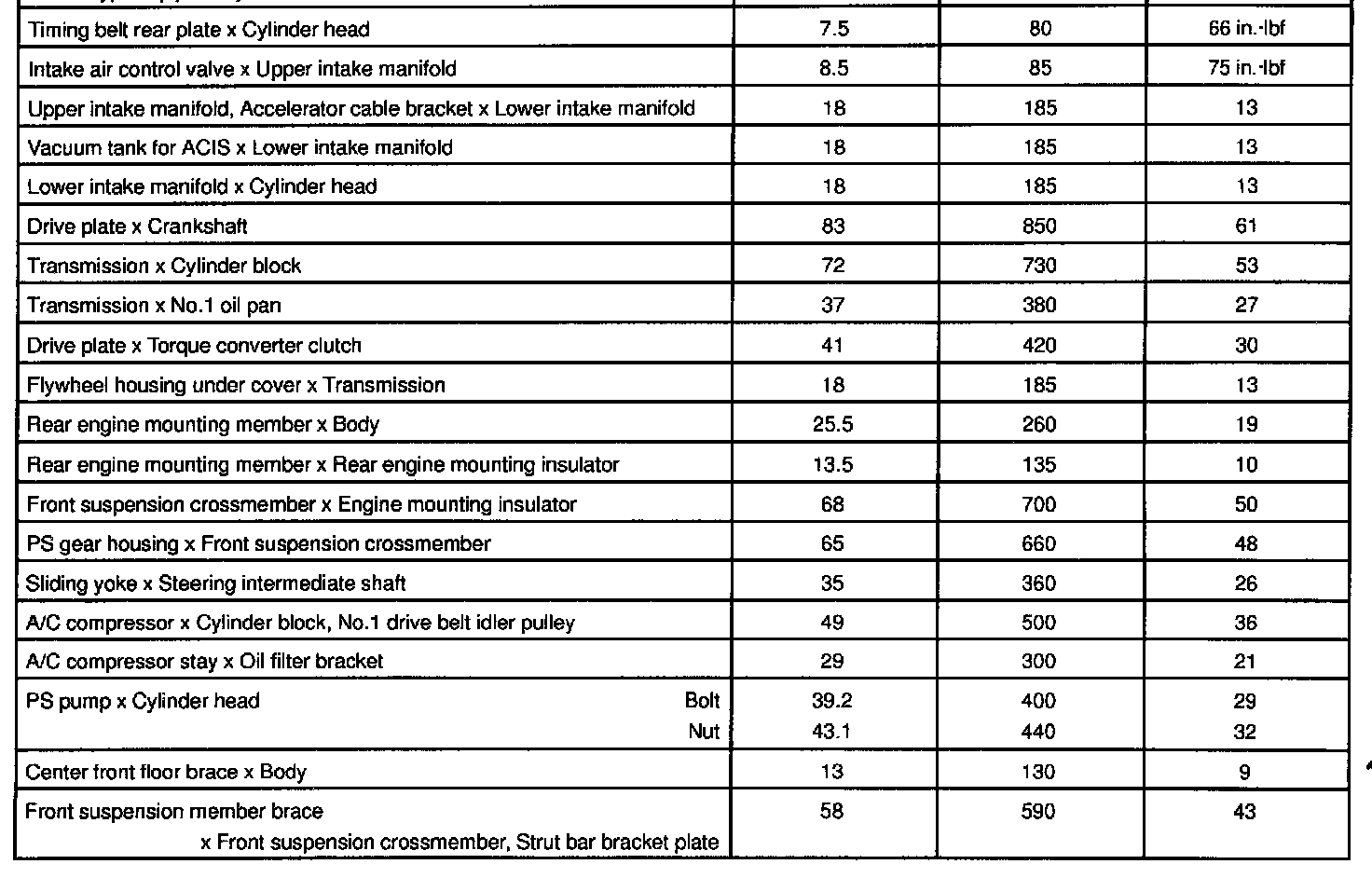

1UZ-FE Engine Torque Cont.:

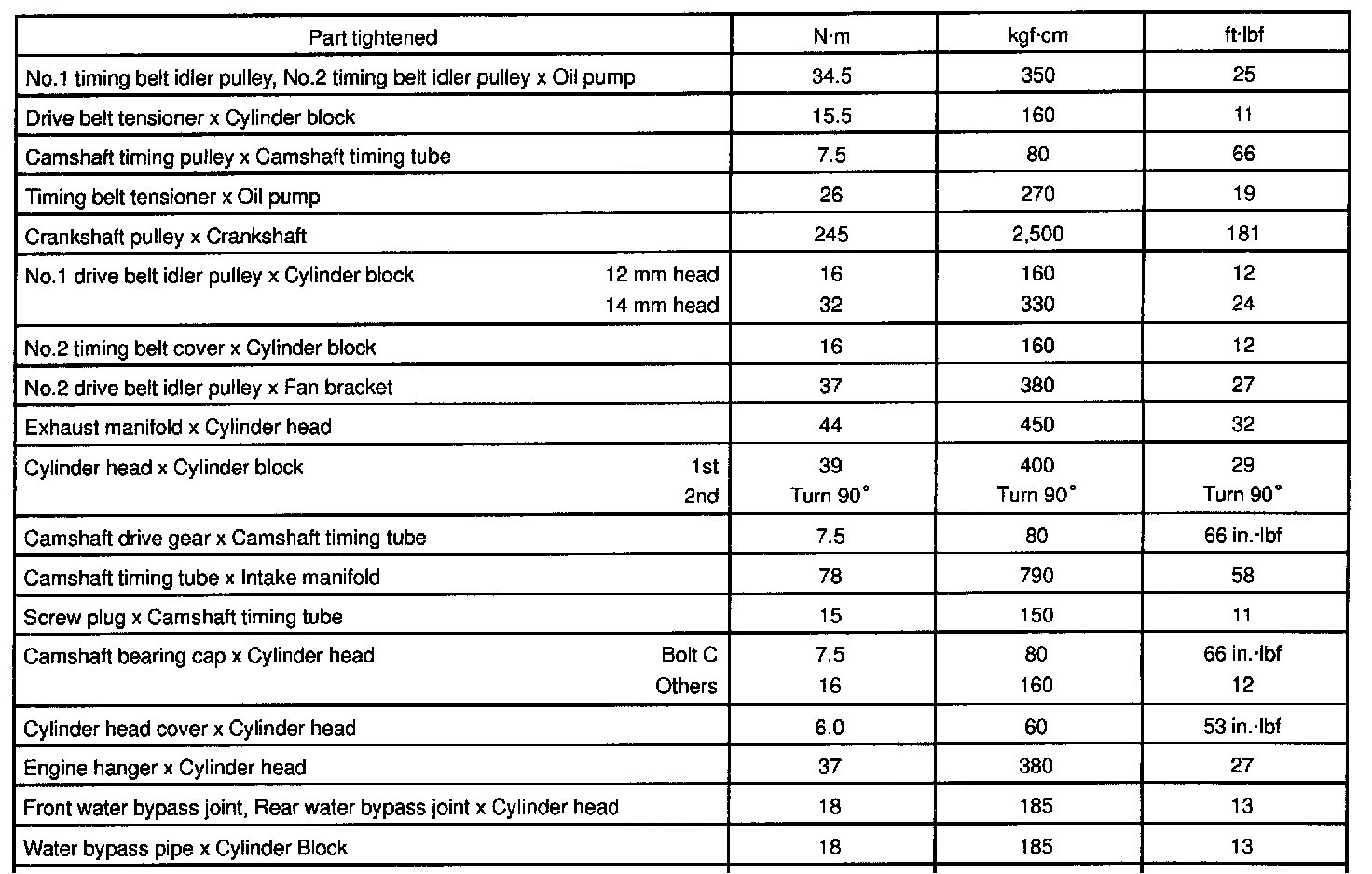

1UZ-FE Engine Torque Cont.:
