Ignition Coil: Service and Repair

1. REMOVE V-BANK COVER

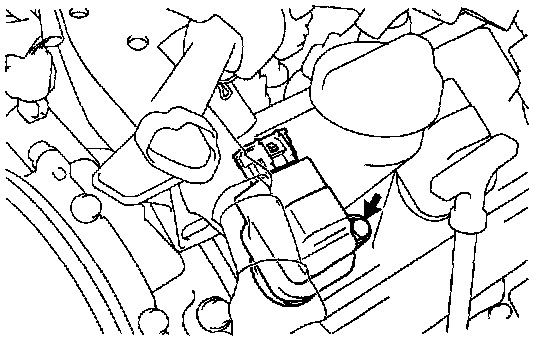

2. REMOVE INTAKE AIR CONNECTOR PIPE

3. REMOVE IGNITION COILS
a. Disconnect the 8 ignition coil connectors.




b. Remove the bolt, and pull out the ignition coil. Remove the 8 ignition coils.

4. REINSTALL NEW IGNITION COILS
a. Connect a new ignition coil to the spark plug, and attach the ignition coil to the cylinder head cover, and install the bolt. Install the 8 ignition coils.
Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

b. Connect the 8 ignition coil connectors.

5. REINSTALL INTAKE AIR CONNECTOR PIPE
6. REINSTALL V-BANK COVER
